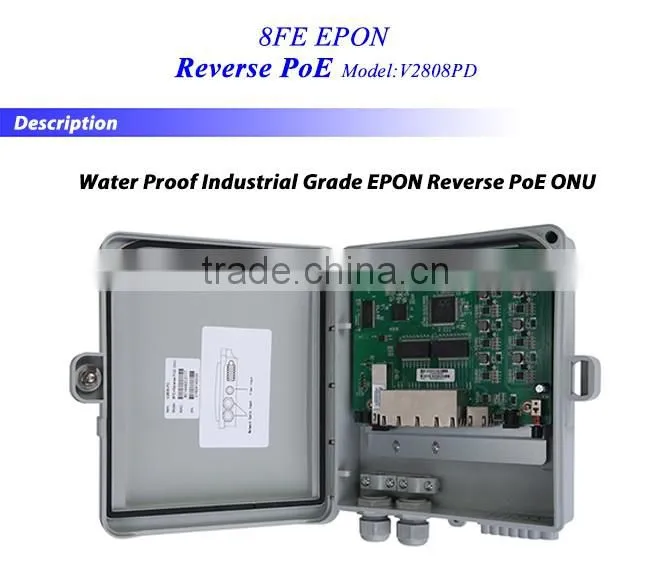

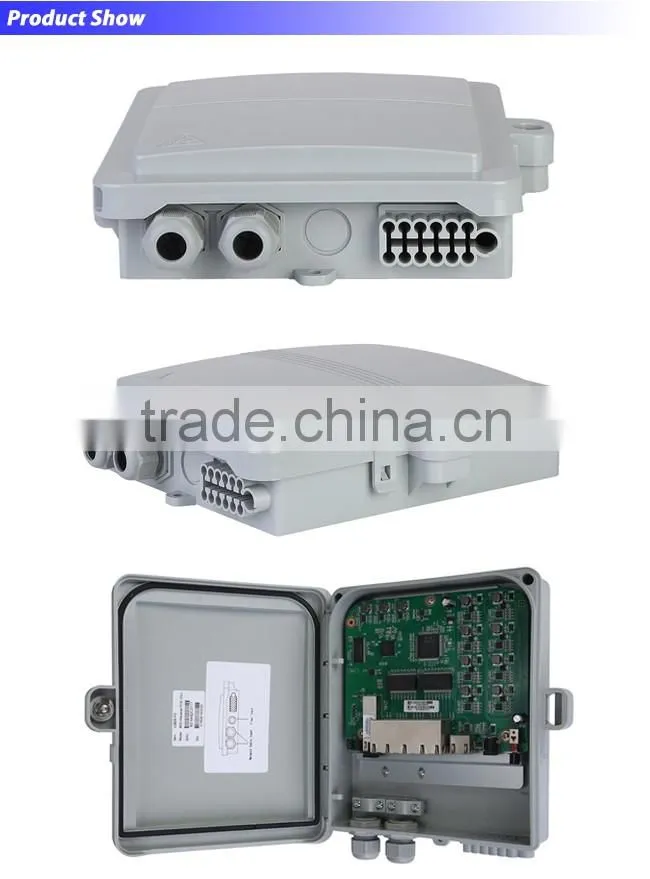

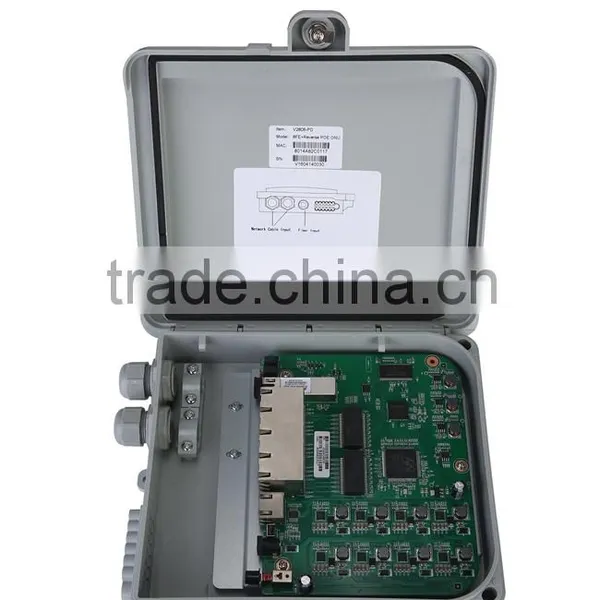

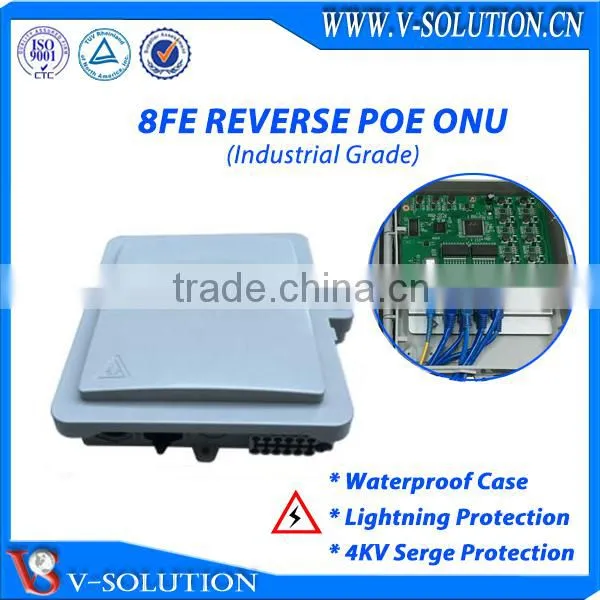

8*10/100Mbps Ethernet Interfaces Reverse PoE ONU Industrial Grade PACPON with Waterproof Thunder Prevention

Introduction

EPON 8FE+Reverse PoE(PD) ONU with reverse PoE designed for fulfilling FTTH request of telecom operators, internet access of SOHO. This product is basing on the stable and mature Gigabit EPON technology, which has high performance/price ratio, and the technology of layer 2Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS. And it is fully compliant to technical regulations such as IEEE802.3ah and technicalrequirement of EPONEquipment (V2.1) from China Telecom. ONU is powered by the power sourcing equipment (PSE) deployed in users' residences, applied in scenarios where there is no alternating current (AC) power supply in corridors.

Specialfeatures

• Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

• Integrated OAM remote configuration and maintenance function.

• Support rich QinQ VLAN function and IGMP Snooping multicast feature.

• Functions like transceiver diagnostic monitoring, transmitter disable, etc.

• Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

• Easily configuration by local CLI.

Functions

• * Shared 1Mbit on-chip memory-based switch fabric with true non-blocking switching performance.

  * 8K MAC address entries with automatic learning and aging.

  * Per port programmable MAC address limiting.

  * 802.1Q VLAN support for the full 4,096 VLAN IDs.

  * Quality of Service support with four traffic classes.

  * Support Strict,Weighted,or mixed mode QoS.

  * Integrated 1:1 VLAN, VLAN reusing, VLAN trunk, etc.

  * Support port monitoring, port mirroring, port rate limiting, port SLA, etc.

  * Support auto polarity detection of Ethernet ports (AUTO MDIX).

  * Support layer 2 Policy Control

  * Support IPv4 IGMP snooping and IPv6 MLD snooping.

Technical Parameters

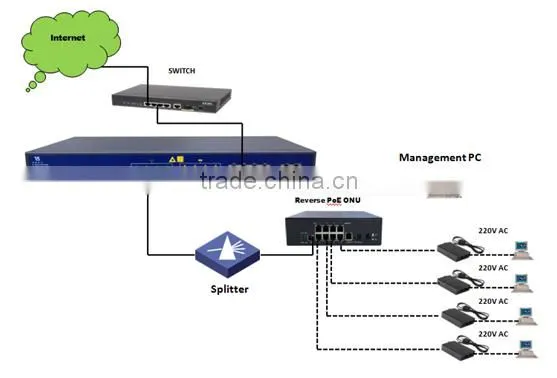

Application Chart
