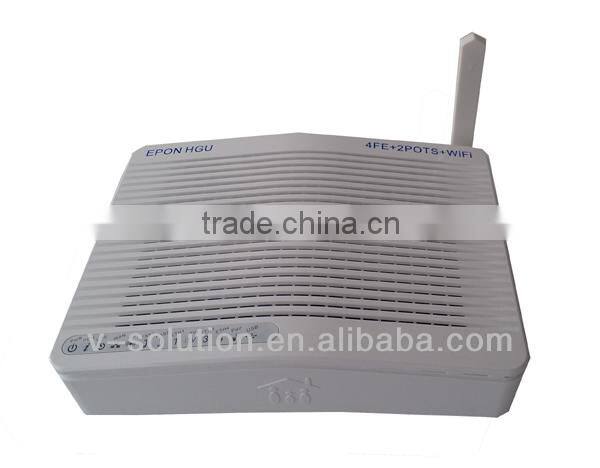

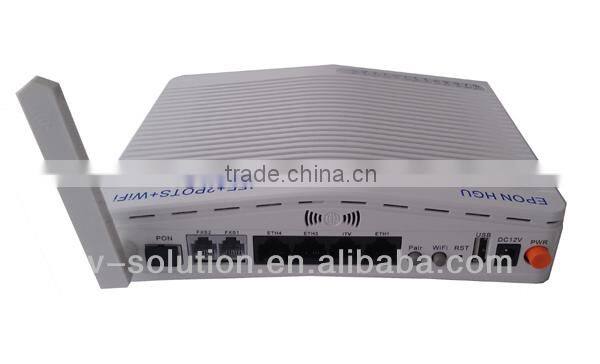

Internet Telecom WIFI Home Gateway Unit GEPON ONU

Specifications

4FE+2POTS+2T2RWiFi EPON HGU
Support IPTV
Support SIP protocol
Bridging and router mode optional
Conform with CTC E8-C

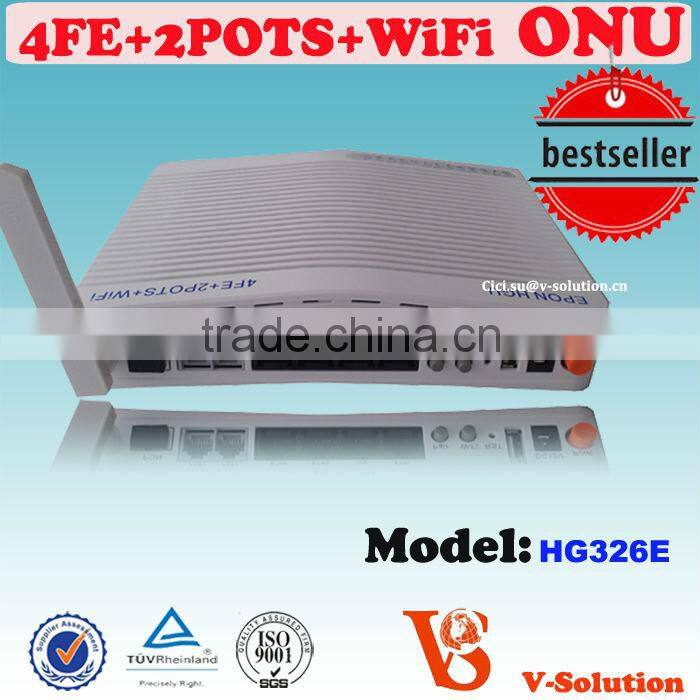

Model:  HG326E







Special features:

1. Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technologies.

2. Integrated OAM remote configuration and maintenance function.

3. Support rich QinQ VLAN function and IGMP snooping multicast feature.

4. Integrated line testing compliant with GR-909 on POTS.

5. Support EPON fiber transceiver monitoring, EPON fiber transmitter disable remotely.

6. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

7. For small and medium-sized operators, VoIP services are customizable.

8.  Support IEEE802.11n 2T2R WiFi function.

**************************************************************************************************

Ethernet Service Functions:



1. Full speed non-blocking switching.

2. 1K MAC address table.

3. 64 full range VLAN ID.

4. Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.

5. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

6. Support auto polarity detection of Ethernet ports (AUTO MDIX).

7. Integrated IEEE802.1p QoS with four level priority queues.

8. Support IPv4 IGMP snooping and IPv6 MLD snooping

**************************************************************************************************



Our products:

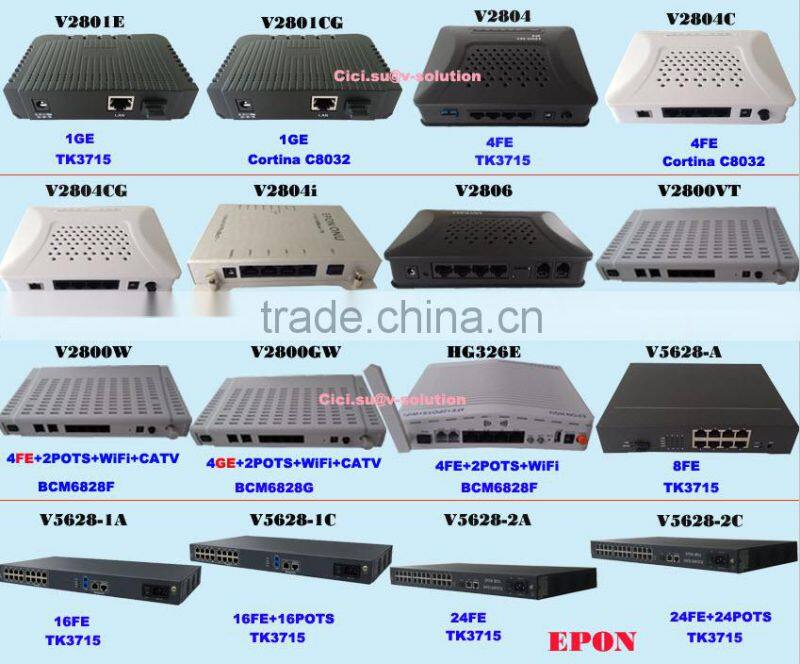

GPON ONT, GEPON ONU, GEPON  OLT, Home Gateway Unit, P2P Triple Play CPE, VoIP Gateway, PLC and ect.





Need more informations and get best price, Please free to contact with me!

SKYPE:  cici.su111



**************************************************************************************************

Why you choose V-Solution?

Our GEPON ONU can compatible with Huawei / ZTE / FiberHome/ BDCOM OLT. ONUs are our advantage products, The price are very competitive in the market. All of ONUs are researched and developed by our engineers.   V-SOLUTION currently employs over 50 R&D engineers. Our  engineers have a good knowledge of communication network protocols and have rich experiences in developing products.The company has strong R&D capability so that ODM business such as communication network products with high difficulty and with combination of hardware and software can be confidently contracted.
