Factory supply Ventilating HVAC air duct metal duct forming machine for sale

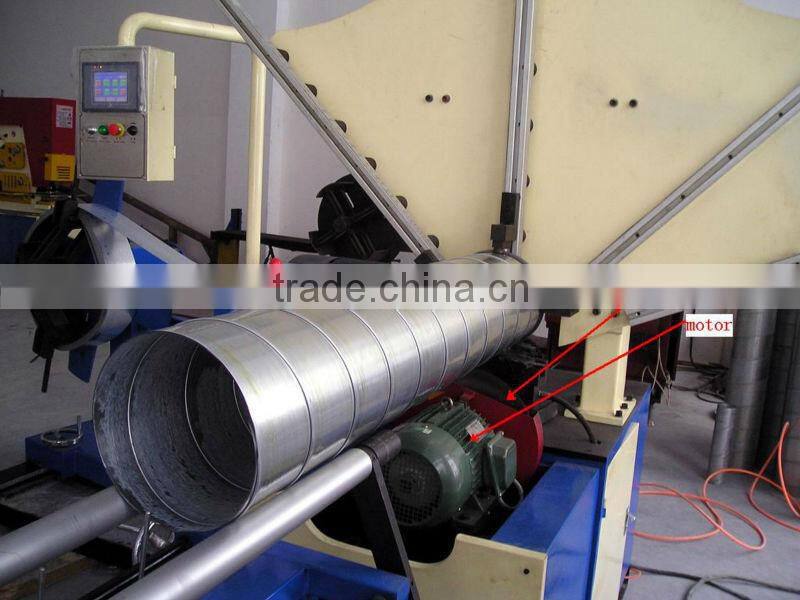

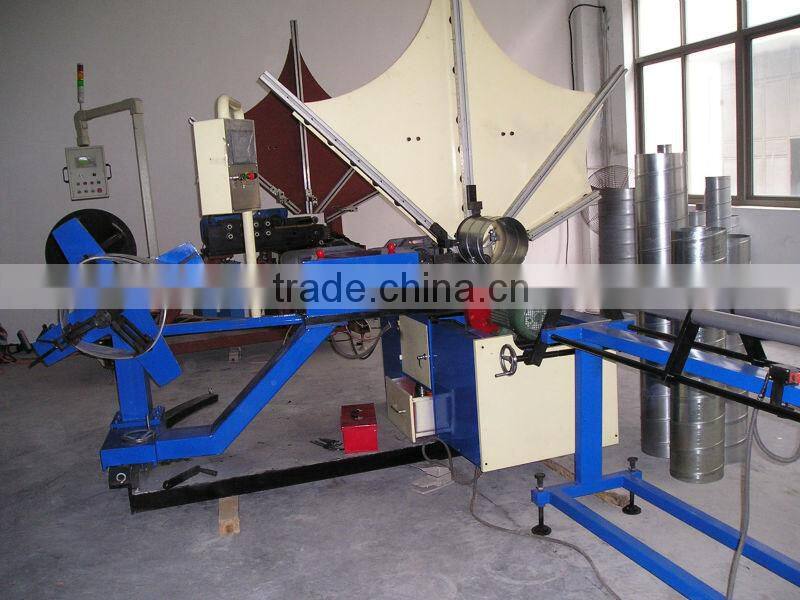

The machine consists Pay-off unit, roller forming unit, rounding unit, cut-off unit and run-out stand. It is used for making spiral tube of different diameters. Certain strip dies need for different diameter tube as showing left. The machine will be supplied with 20 piece of dies, their sizes will be choose when ordering.
Incoming metal sheet: width137 mm
Strip thickness: GI 0.4-1.2 mm
Stainless steel 0.3-0.7 mm
Al: 0.4-1.5 mm
Diameter of tube: 80-1500 mm
Length of tube: Pre-setting length, Automatic control
Feeding Speed: 0-40m/min adjustable

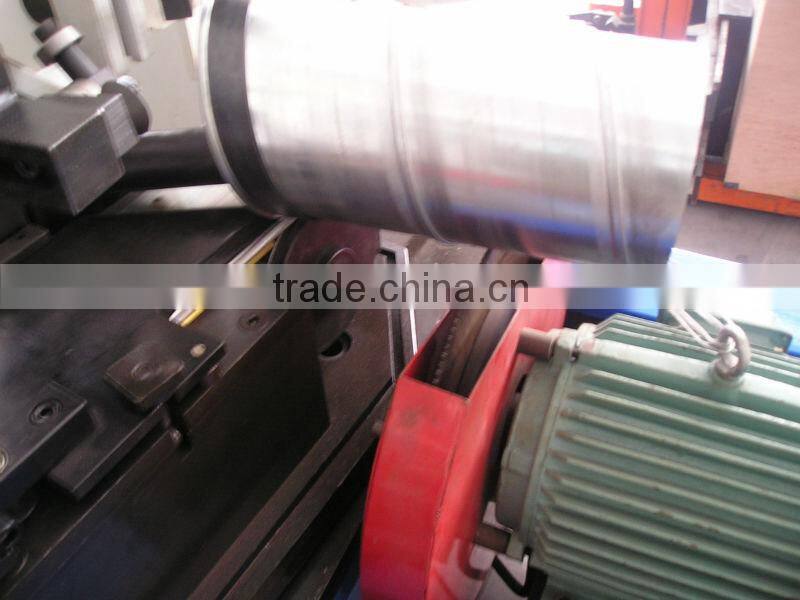

Cut-off unit: Automatic synchronous flying Cutting System,Sawing machine (cut-off could equip Slitter or Plasma too for lower noise and better safety)
Run-out stand: length 4 m as standard accessory
Overall Size: L 3100×W2500×H2850mm
Weight: 2600KG
Power supply 9.5 KW
Pneumatic supply 0.4-0.7 MPa, 50 L/min

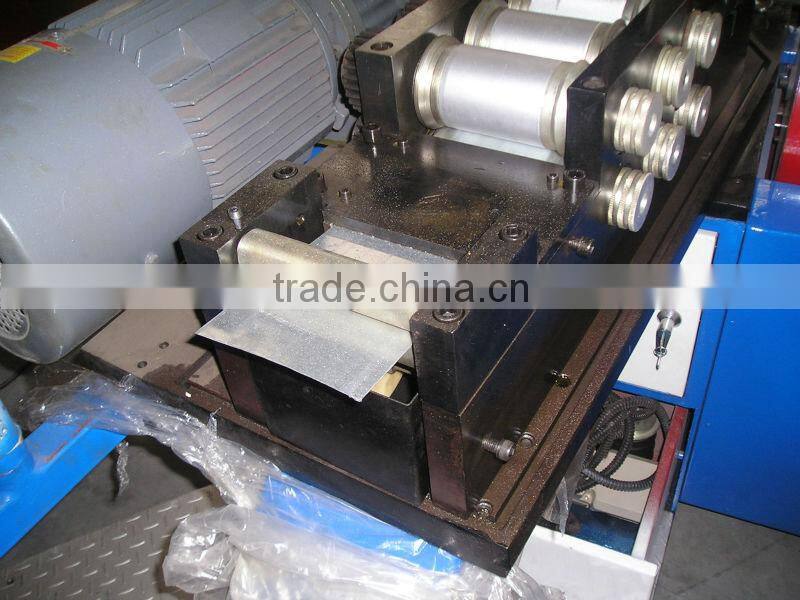

Rollers are made of SKD1(D3). And the cutting saw is made of High speed steel.
PLC controlled and touch screen operation interface
Standard accessories and Spares:
Locking wheels
Strip dies for tubes of over 20 diameters
Run-out table
Pinching roller with beading
Tool kits
Diameter range | Φ80-Φ1500mm |
Tube Length | 120-8000mm |
Thickness of Strip | 0.4-1.2mm |
Width of Strip | 137mm |
Strip Speed | 1-40/min adjustable |
Lockseam | Outside tube,on the inside on request |
Control System | PLC automatic control |
Electric Power | 380V/3PH/50HZ (Acorrding to customer’s request) |
Main Motor Power | 5.5kw |
Cutting System | Saw cutting |
Cutting motor power | 4kw |
Suitable Material | Galvanized steel,Stainless steel,Aluminum |
Weight | About 2600kg |
Dimension | 3100*2500*2850mm |
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.

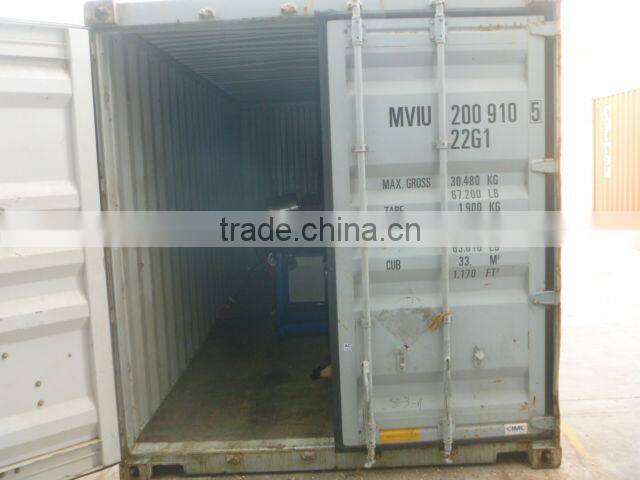

The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.

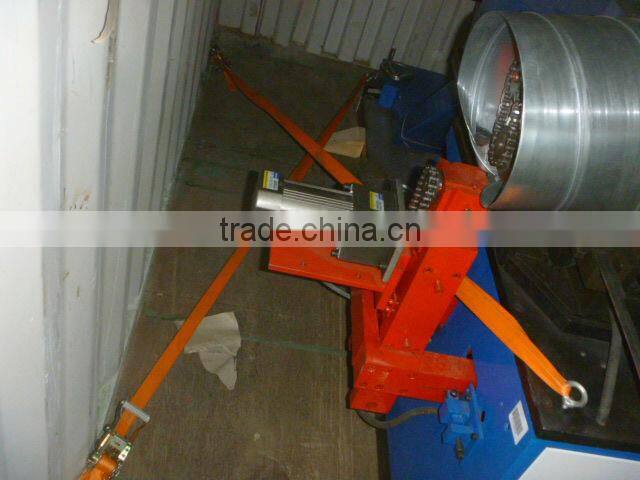

For FCL, we get machines to container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
Factory supply Ventilating HVAC air duct metal duct forming machine for sale
A.Warranty : one year
B.Engineers available to serve machine overseas
C.Strict factory inspection
D.Complete equipment manual
E.Online instruction
F.Provide all components, spare parts and consumptive material
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?

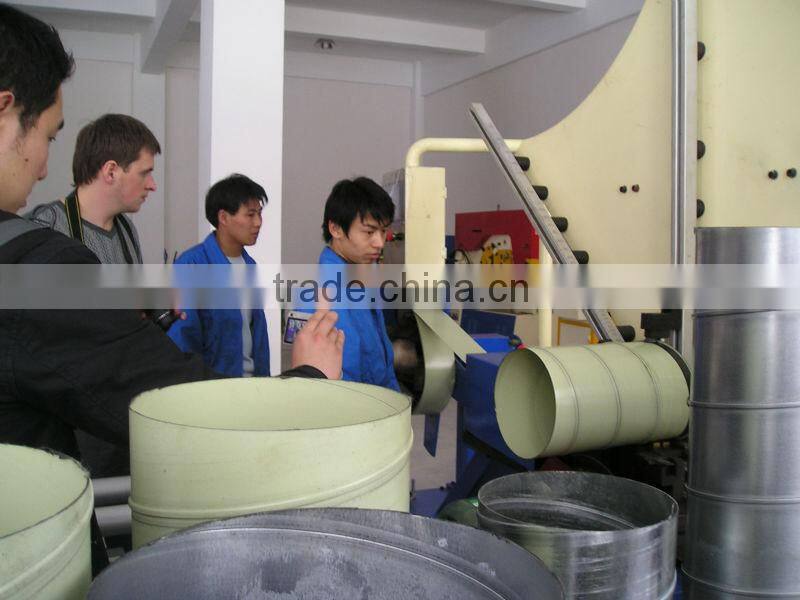

A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. Metform's products are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform machinery is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Main Products
machinery equiment- seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine, metform CNC plasma/ laser cutting machine, punch presses,metform metalworking machines, coil processing machinery, leveling machine, slitting line, cut-to-length lines, rolling mills.
To cater to the demands of transmission industries, Metform Machinery offer a complete range of hydraulic presses such as notching machines,iron workers,hydraulic press brake and shears punching machines, roll bending machine and many more manual ones. Sturdily constructed to perfection, our hydraulic presses can be operated easily and used for a long time.
These premium quality hydraulic presses are known in international markets for excellent functioning, time saving and cost efficiency. They are offered by us at industry leading prices.
Factory supply Ventilating HVAC air duct metal duct forming machine for sale
