Tianyu Brand fertilizer rotary dryer

Specifications

Tianyu Brand fertilizer rotary dryer
CE and ISO certificate
Drawing offered
One year free maintenance

Tianyu Brand fertilizer rotary dryer



Let’s start the journey of exploring our product.

Tianyu Brand fertilizer rotary dryer

Introduction:

for chemical industry is a kind of efficient drying equipment for drying the powder materials and granular materials. The advantages are easy to operate, energy saving, environmental protection.

Working principle:

fertilizer rotary dryer for chemical industry for powder for powder is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out hot heat  exchange with damp raw material. Then the damp air is exhausted out through cyclone seperator and duster and the dry raw material is discharged through discharge outlet.

Applied field:

 It is widely used in drying, cooling of power or granules state materials, such as citric acid, monosodium glutamate, borax, ammonium sulphur, compound fertilizer, beanm lees, mineresides, and sugar in chemical, pharmaceutical, foodstuff, grain, mine industry and so on.



Feature:

Tianyu Brand  fertilizer rotary dryer

1.Raw material is heated evenly, heat exchange is fully, and large intensity of drying

2.Use vibration motor as vibration source. It is smooth in running and convenient in maintenance. The noise is low and the life is long.

3.The state of fluidization is uniform and no dead gaps and broken phenomenon. Therefore the dried, cool can be got.

4.It is good in adjustment and width in field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration breadth can be realized through steeples.

5.It is small to damage the surface of raw material, so it can be used for raw materials that are easy broken. If the granule is not normal, the effect of process can not be effected.

6.Because of adapting the structure of fully seat, it is effective to prevent from the cross pollution of raw materials and the working environment is clean.

7.Basically the drying time is on average, the staying time is short, and the thickness of fluidized bed is also very short, 2-5cm.



Technical parameter:

Model: ZDG	Bed body(mm)		Dimension(mm)			Power (kw)	Weight (kg)
	A1	B1	A	B	C
3x30	300	3000	890	3505	1830	0.5X2	1240
3x45	300	4500	1116	5005	1830	0.75X2	1570
6x45	600	4500	1286	5005	1940	1.1X2	1967
6x60	600	6000	1286	6510	1940	1.1X2	2740
6x75	600	7500	1286	8010	1940	1.1X2	2886
9x60	900	6000	1830	6510	2110	2.2X2	3540
9x75	900	7500	1830	8010	2110	2.2X2	4219
12x75	1200	7500	2400	8010	2450	3X2	5223
15x75	1500	7500	2850	8010	2570	4X2	6426
18x80	1800	8000	3250	8520	3100	5.5X2	8600

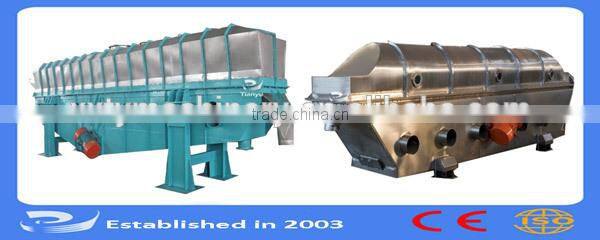

Product show case:

For export,we usually use different packs for different products according to its size.

For small size,crate case is adopted.

For big size and heavy good,fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.

Five years export experience guarantees you to get your goods safely and quickly.

A: Pls tell me your material to be dried, its particle size, input materials moisture degree and the output materials degree , the capacity per hour, the heating system you like,coal,electricity or fuel, then I will select suitable model for you.

2.Q:I need a dryer with special needs, could your company design one for me?

A:Yes, we can. Our company has a strong researching team, and they can design machine according to your requirements.





3.Q:Can you use our specify components?

A: Yes, we can. We can produce crusher according to your specify components.

For more , please contact us!
