Product Details

Place of Origin:	Guangdong, China	Brand Name:	Hopeful	Model Number:	Airforce 4.1
Type:	Wind Power Generator

Product Description

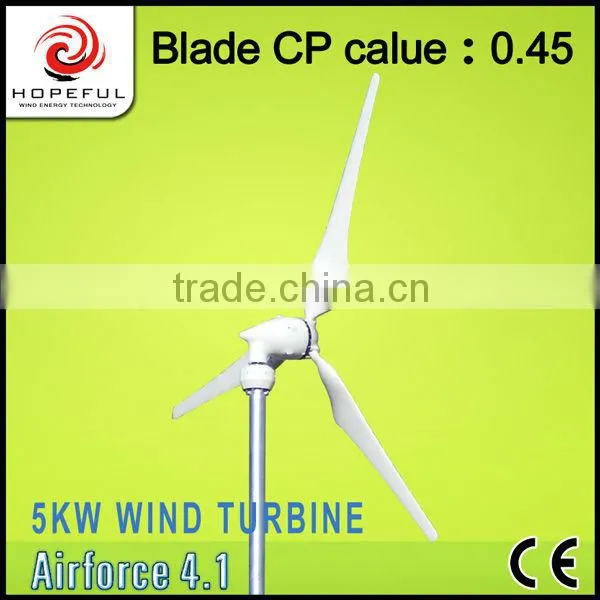

Green power Renewable clean energy hybrid wind and solar power system 5KW 48v for selling

Product advantages
•Dual, automatic emergency braking system

• Waterproofing

• Sealed Sweden bearing
• Efficient Aero-dynamic design

• High strength, corrosion resisting aluminium alloy
• Low noise level

Main characteristics
• Low start-up wind speed ONLY 1.5M/S
• ADJUSTABLE blade angle and blade design to achieve maximized efficiency

•Cp value up to 0.43
•All-over automatic system

Quality guarantee
•2-year whole system quality guarantee
•Highest quality manufacturing standards(ISO9001)
•Wide range of temperature tolerance(-50°C—65°C)
•High salt fog, dust and sand resistance
•Strong wind resistance and high survival wind speed

Easy transportation and installation
•Light and compact size
•Intuitive online installation guides
•Perfect after-sales service system

Technical Specifications
Model	Airforce 4.1
Rated output power	5KW
Max.output power	5.1kW
Voltage	48Vdc
Rated wind speed	12m/s
d speed	25m/s
Survival wind speed	60m/s
Start-up wind speed	1.5m/s
Cut-in wind speed	2m/s
Rated rotational speed	400rpm
Max. rotational speed	450rpm
No. of blades	3
Rotor diameter	4.1m
Blade length	2.02m
Blade material	FRP
Generator	3 phases PM generator
Braking system	Electromagnetic braking control system
Type	Downwind rotor
Yaw control	passive
Total weight	120kg
Warranty	whole system-2 years
Controller	Full-automatic control
Tower	12m(optional)

Renewable Energy hybrid wind and solar power system 5KW
