Home > Products > Wind Turbine System > cheap wind turbine and solar systempure sine wave inverter1kwesgnew
cheap wind turbine and solar systempure sine wave inverter1kwesgnew
- 200 Unit / Units per Month
- zhuhai
- T/T Credit Card
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Hopeful | Model Number: | Airforce |
| Type: | Other, Wind Power Generator, Generator |
Product Description
Technical Specifications | ||||||

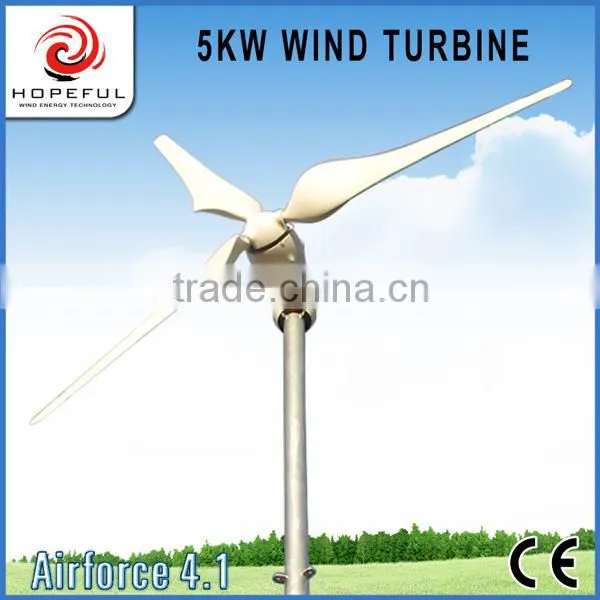

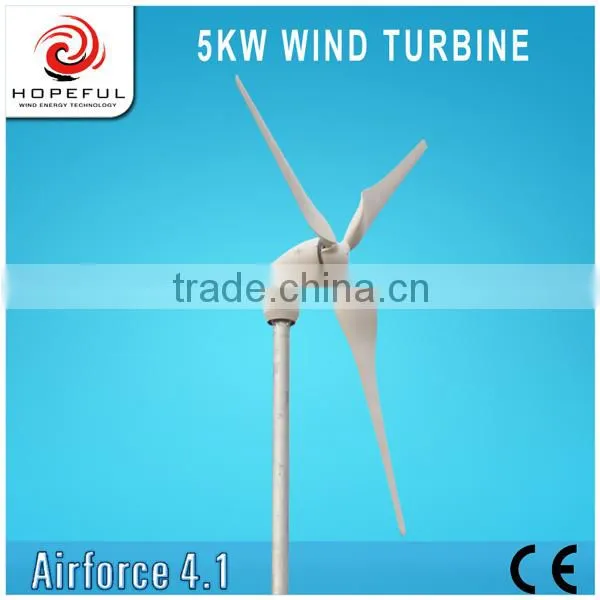

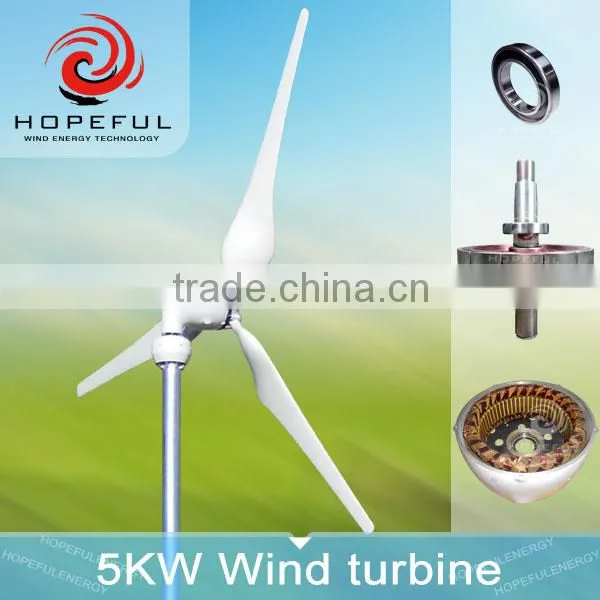

Model | V1 | Airforce 1.5 | Airforce 2.0 | V1.8S | V1.8 | Airforce 4.1 |
Rated output power | 300W | 600W | 1KW | 1KW | 1.5KW | 5KW |
Max.output power | 450W | 750W | 1.35KW | 1.5KW | 1.8KW | 5.1kW |
Voltage | 12/24vdc | 12/24vdc | 24/48vdc | 48vdc | 48vdc | 48/110/240/380vdc |
Rated wind speed | 12m/s | |||||
d speed | 20m/s | |||||
Survival wind speed | 60m/s | |||||
Start-up wind speed | 1.5m/s | 2.5m/s | 2.5m/s | 1.5m/s | 1.5m/s | 1.5m/s |
Cut-in wind speed | 2m/s | 3m/s | 3m/s | 2m/s | 2m/s | 2m/s |
Rated rotational speed | 250 | 810 | 860 | 200 | 180 | 400rpm |
Max. rotational speed | 300 | 920 | 1150 | 220 | 200 | 450rpm |
No. of blades | 1 | 3 | 3 | 1 | 1 | 3 |
Rotor diameter | 0.9m | 1.5m | 2m | 1.5m | 1.5m | 4.1m |
Blade length | 1m | 0.68m | 0.95m | 1.8m | 1.8m | 2.02m |
Blade material | FRP | |||||
Generator | 3 phases PM generator | |||||
Braking system | Electromagnetic braking control system | |||||
Type | Full | up rotor | up rotor | Full | Full | Downwind rotor |
Yaw control | None | passive | passive | none | none | passive |
Total weight | 30kg | 20kg | 30kg | 110kg | 110kg | 120kg |
Warranty | whole system-2 years | |||||
Controller | Full-automatic control | |||||
Tower | 4m | 6m | 8m | 10m | 10m | 12m |
Product advantages
»Dual,automatic emergency braking system
»Sealed Sweden SKF bearing
» Waterproofing
» Unique Anti-Vibration design
» Effcient Aero-dynamic design
» High strength, corrosion resisting aluminium alloy
» Unique neodymium iron boron permanent magetic material
» Low noise level
Main characteristic
» Adjustable blade angle and blade design to achieve maximized effciency
» Low start-up wind speed only 1.5m/s
» Large range of wind speed usability (2m/s-20m/s)
» Cp value about 0.43
» All-over automatic system
Quantity guarantee
» Two-year limited guarante
» Highest quality manufacturing standards (ISO9001)
» Wide range of temperature tolerance(-50 °C -65 °C )
» High salt fog,dust and sand resistance
» Strong wind resistance and high survival wind speed
» Dural materials and components
Easy transportation and installation
» Light and compact size
» Intuitive online installation guide
» Wide installation and maintenance network worldwide
» Perfect after-sales service system
Certificate of conformity:
Project cases:
