Home > Products > Sample Cylinder > Stainless steel 316L 500 psi double ended 1/8" female NPT sample cylinders
Stainless steel 316L 500 psi double ended 1/8" female NPT sample cylinders
- 100 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
- SS 316L 304L 5000 psi double ended 1/8 1/8" female NPT liquid sampling system
- Stainless steel 316L 304L 500 psi double ended 1/8" female NPT sample cylinders
- SS 316L 304L 5000 psi double ended 1/8 1/8" female NPT high pressure sample cylinders
- Alloy 400 1800 psi single ended 1/4 1/4" femlae NPT swagelok sample cylinder
- stainless steel 1800 psi double ended high pressure sample cylinder
- Stainless Steel High Pressure Small Portable Compressed Nitrogen Gas Cylinder
Product Details
Condition: | New | Place of Origin: | Sichuan, China | Brand Name: | Hikelok |
Model Number: | SC1 | Dimension(L*W*H): | 330mm*50.8mm | Capacity: | 1000ml |
Weight: | 10kg | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
This sample cylinders will be packed in carton box, wooden case or upon your requirement.
Product Description

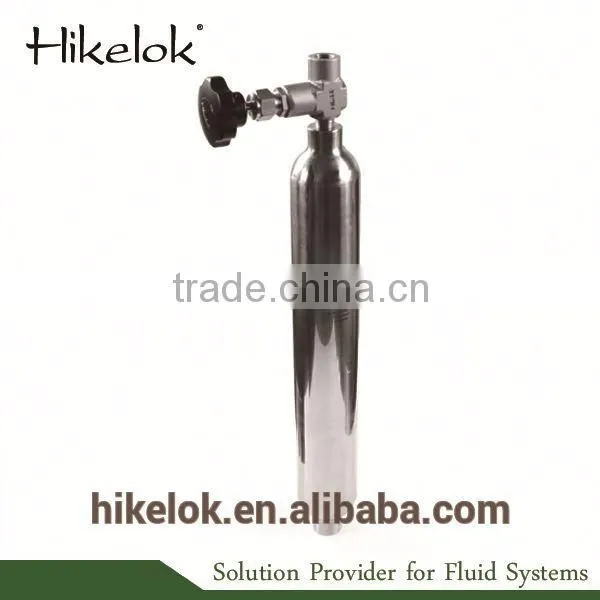

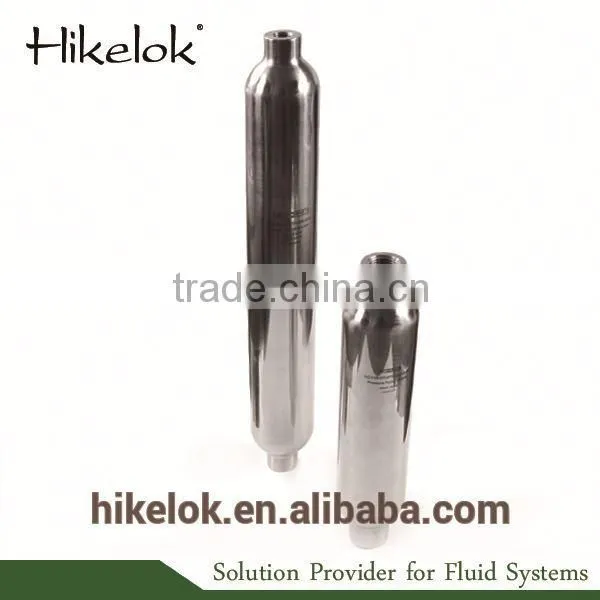

Stainless steel 316L 500 psi double ended 1/8" female NPT sample cylinders
Product Description
1. Specs (sample cylinder)
Working pressure up to 5000 psig (344 bar)
Internal volume from 40 to 3785 cm³ (1 gal)
Single-ended and double-ended
Seamless tubing body provides consistent wall thickness, size and capacity
Heavy wall end connections provide strength and resist flaring
316L and 304L and alloy 400 stainless steel materials available
2.Configuration

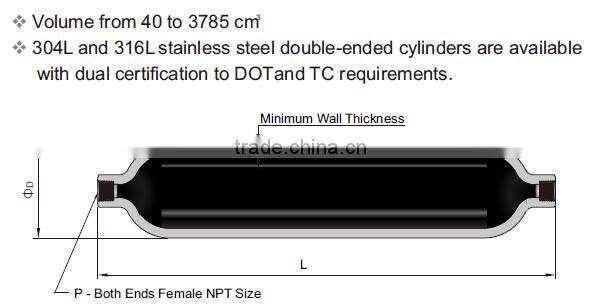

A. double-ended

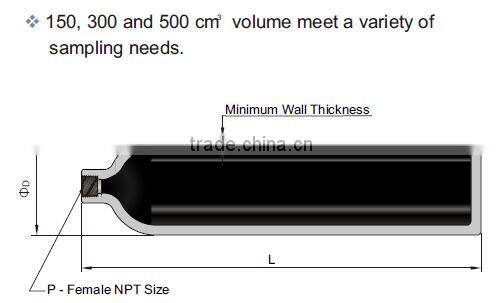

B. Single-ended

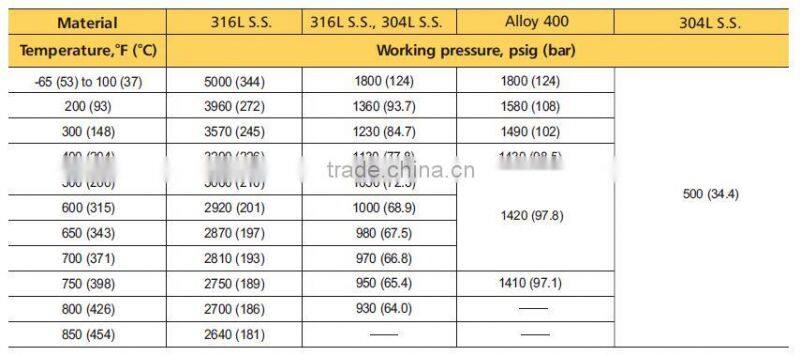

3. Pressure vs. Temperature
4. How to order
Packing & Shipping
1. Packing
2.Shipping
For small order or urgent order, we normally send the goods by courier.
For big order, the goods can be sent by sea
Our Service
You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are the responsibilities of the system designer and user. From quote to delivery, we can provide the detailed support you need.
1. CAD drawing
2. P&ID
3. Component selection
4. Bill of material
5. Professional services such as bending and welding
6. Testing to guarantee the system
7. Professional packaging and delivery
Comapny Information
- Passed ISO9001-2000 & 2008
- Supply OEM/ODM Manufacturing.
- Designed and manufactured to intermix and interchange Swagelok ® and major global brands.
Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this field. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. We have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.
The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc.
FAQ
1. What is the acceptable MOQ?
For this sample cylinder , our acceptable MOQ is 1pc. Any trial order in small quantity is welcome.
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
T/T, Paypal ,Western Union, MoneyGram, L/C, D/A, D/P
Stainless steel 316L 304L 500 psi double ended 1/8 1/8" female NPT sample cylinders
Company Profile
Hike Fluid Equipment Co., Ltd. was established in 2011. We are located in industry concentration development Zone in Chongzhou. The registered capital of the company is RMB3 million and we cover an area of 4,000 square meters. The company is formerly known as the fluid business unit of Chengdu Haiwang Precision Equipment Co., Ltd. In order to satisfy the increasing needs of our business, we set up Hike Fluid Equipment Co., Ltd. The fluid business unit of Chengdu Haiwang Precision Equipment Co., Ltd. has focused on precision fluid fittings and valves for more than 10 years. For the accumulated experience, our products have achieved a good reputation in Chinese market, especially the instrumentation fittings and valves, which can be equal to the international well-known companies. We have impeccable management system in quality and strict product test program to ensure valves and fittings have excellent quality when they leave the factory.
Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this area. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. The fixed assets of our company is more than 10 million and we have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.
The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc. Our products are widely used in power generation, petroleum, petrochemical, natural gas, semiconductor, laboratory, shipbuilding, steel, chemical industry and other fields.
