D675 Flysight RC801 7" HDMI Built-in Battery Monitor for Radio Controlled Airplane

Specifications

7" HDMI Built-in Battery Monitor for Radio Controlled Airplane
1.High resolution
2.Zoom function
3.HDMI
4.Diversity RX

D675 Flysight RC801 7" HDMI Built-in Battery Monitor for Radio Controlled Airplane


Features

*High resolution 1024*600

*No "blue screen" problem when the signal gets weak
*Sunlight readable with ultra brightness&definition screen

*Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching

*Dual buffered AV outputs

*Can receive 2 different channels at the same time

*Not affect by 2.4GHz R/C Radios

*Anti-black, anti-blue, anti-flash.

*AV Receiver with Diversity inputs,AV, HDMI

*Support Zoom function

*Small, light weight, durable

*4 Bands and total 32 Channels

*Tripod connector: General 1/4 "thread

*Working Temperature: -10~+65 degree

*Support rotation 180 degree



Specification

Display Screen	Diagonal	7 inch
	Resolution	1024X600
	Contrast	700:1
	Luminance	300cd/m2
Wireless  Receiving	Sensitivity	-90dBm±1dBm
	Channel	32Channel ( 4 Band X 8 Channel )
	Antenna Port	2 X SMA,50ohm
	Diversity receiving	Antenna diversity
	TV System	NTSC/PAL
	Video output level	1.0Vp-p Typ,75ohm
	Audio output level	1.0Vp-p Typ,10Kohm
AV Port	RX1 AV OUT	Video,Audio output
	RX2 AV OUT	Video,Audio output
	DIV AV OUT	Diversity receiving, Video,Audio output
	AV IN	Video,Stereo Audio input
	HDMI IN(A Type)	Support HDMI 1.3 Digital Input, Support HDMI Audio in
	Built-in Microphone	8Ω/1W X 2
Power Supply	DC IN	7~28V/ 2A
	DC OUT	Output Voltage:DC IN or battery voltage Output Current:1A
	Battery	11.1V/1000mAh(3 series LiPo cells)
	Consumption	12V input:7.8W
Dimensions	Main Body	183X126X19.5mm(not include sun shadow)
	Battery	105X87.5X6.7 mm(not include prominent part)
Weight	Main body	350 g



4 brands 32channels

Product Show

Advantages

1. Original products for our own brand Flysight, quality is warranty.

2. We aim to provide customers high quality products and services.

3. CE certification provided for our products model: TX58025,  RC306, RC305 etc.

4. OEM orders are welcome!

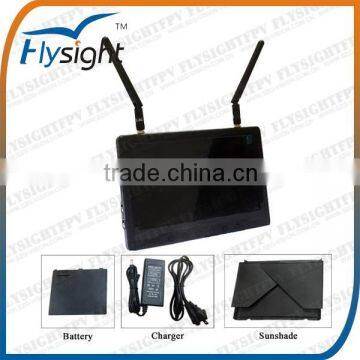

Packing Details

1*Main Body

1*Sun Shadow

2*SMA Antennas

2*AV Cable

1*DC Input Cable

1*DC output Cable

1*Battery

1*Charger



G.W: 0.86kg

Color Box Size: 21.2*6.5*16.5cm
