C515 7 inch FPV Photography TFT LCD Monitor HD With Sun shield for for Ground Station

C515 7 inch FPV Photography TFT LCD Monitor HD With Sun shield for for Ground Station

All-in-one fpv monitor category with the Black Pearl 7" diversity monitor.

This little gem features a number of upgrades including a built-in tripod mounting adapter

(for standard camera screws), a fitted sunshade, built-in 5.8GHz receivers with diversity functionality, and a very bright screen that's easy to see in direct sunlight. The Black Pearl operates on 7-28 volts and includes 3S Lipo Battery.

With integrated video and dc outputs, you can also run a pair of video goggles right from

the monitor

This 7” fpv monitor with 5.8ghz diversity receiver 32ch supports Arewave and NexwaveRF.

It can be compable with all 5.8ghz transmitters 32ch, such as Fatshark, Boscam, Immersion RC. It will be not affected by 2.4ghz radio controller.

Features

*High resolution 1024*600, Anti reflective matte screen

*No "blue screen" problem when the signal gets weak

*It is very bright in daylight 400cd/m²

*build-in two 5.8GHz video receivers and a diversity system that will

   automatically select the best video signal

*It is equipped with an efficient rigid sunhood

*photo screw to clamp it on standard system (1 /4 " 20 threads per inch WBS )

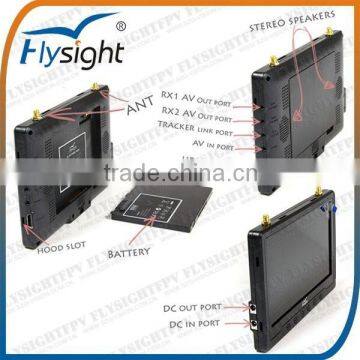

*It has video outputs and Dc output to connect and power other equipmen

*A composite video input will allow you to display external sources

*HDMI video input

*Power 7 - 28V and a DC output for powering a pair of video googles

   or other equipment (Dcout = Dc in, MAX 1A)

*Channel selection via button (no more micro switch !)

*Built in speakers to hear the sound ( from your video Tx or video input sources )

*Support image rotation 180 degree

Specification

Product Image

Package content:

1*Main Body

1*Sun Shield

2*Antennas (SMA and RP-SMA for option)

2*AV Cable

2*power Cable

1*Battery

1*Charger (US, UK, European and Australian charger for option)

1* guidbook

1. Your inquiry will be replied within 24hrs except weekend.

2. Well-trained and experienced staffs can answer all of your questions.
3. OEM&ODM, any your customized requirement within our ability can be come true.
4. Agency is welcomed.
5. Protection of your sales area, ideas of design and all your private information.

1. FOB Price:
At present, we only offer EXW price to all our customers for small orders, but for a large order, we will ship by container, we will offer you price on FOB Shenzhen.

2. Payment term:
At present, we only accept paying by T/T , Western Union and Paypal.

3. Minimum Order Quantity(MOQ):
No matter how many do you want, we can also offer you it. Usually, our M. O. Q is 50 PCS/kits for each item.

4. Price list:
Welcome to visit our website and choose what you like, then send us your enquiry letter or chat with us on Trade Manager. Price of the items you selected will be sent to you in our reply email. Our price depends on your quantity. We are manufacturer, so we promise to offer you the best price.

5. Delivery time and OEM Order:
If the products are NOT made based on your Trade Mark, we can send the goods to you with three work days after we receive the payment.
There is no problem for us to offer customized requirement, such as package you designed, antenna connector, output voltage.The delivery would be about 35 days due to printing the package you designed from the very beginning, but it would only need about 20 days for the repeated order.

6. How to get the sample:
So sorry to say that we don't offer free samples. When you confirm the model that you need, PI will be send to you,freight charge included. Sample will be send within 3 workdays after getting the payment.

7. Shipping:
DHL is better if the order is not large. For large order, we suggest air freight which costs you not so much. The shipping costs depends on the total weight of your products.

8. Warranty:
1 year warranty of free repair or replace for our products. Within 3 months, if some quality problems, you can replace it with a good one. But faulty goods should be returned before we send you a new one.
