Full Automatic Bearing Cage Assembly Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 8 Set / Sets per Month
Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Huiguang
Model Number	BCJT02	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Standard modular design for easy maintenance.
Proprietary imaging tech for inspection.
Manufacturing, customizable.

Product Description

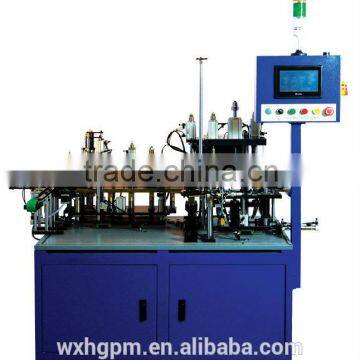

BCJT02 Full Automatic Bearing Cage Assembly Machine

These machines can mainly complete following working procedures: auto feeding or fed by prior step → ball collection & separation → lack of ball inspection → lack of ball products NG → placing cages and aligning position → lack of rivet inspection before riveting → riveting → rivet height inspection after riveting → discharge.

Product Advantages

Ball collection employs gravity plug-in collection.
Ball separation and collection is flexible to minimize injuries to steel balls.
Apply to the assembling of both iron and nylon cages.
Unique dual-rod cage feeding structure and linkage mechanical pawl structure for cage picking.
The TOX pneumatic-hydraulic pressure cylinder or servo press can be used for riveting, with pressure and travel controllable and adjustable.
Proprietary imaging technology for lack of rivets, balls and riveting defects inspection.
The standard modular structure design makes tooling changing and maintenance more convenient, and the performance more stable.
Specific component changing design enables cage riveting of non-standard bearings such as double row ball bearings, spherical bearings and hub bearings.
Massive applications of parallel guideway design make the equipment run more stable and the service life longer.
Security mechanism (national standard or European standard) can be customized based on requirements.

Technical parameters:

Applied nominal OD	D14-28
Efficiency	≈3s/piece
Steel ball separating mode	needle plug-in
Lack of ball inspection	Contact detection (imaging inspection system is optional
Method of picking cages	Picker finger
Riveting mode	Air cylinder
Riveting inspection precision	≤0.1mm
Dimension (mm)	1540 L * 600W * 1600H
Cylinder & Solenoid valve	AirTAC, SMC, Pneulead optional, or on request
PLC	OMRON, SIEMENS optional, or on request
Touch screen	Xinje, SIEMENS optional, or on request
Optical fiber+Amplifier	SUNX / KEYENCE, or on request
Stepper motor / Servo motor	YAKO, Mitsubishi optional, or on request
