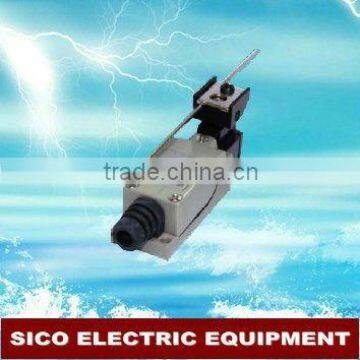

SC8107 limit switch

SC8107 limit switch

OF MAX  203g

RF MIX     12g

PT MAX    20

OT MIX      75

DT MAX    10

TT MIX       95

SPECIFICATION

1. FEATURES

1)      Wide choice of heads and actuators

2)      Variety of operating characteristics

3)      Captive cover screws

4)      Mode of operation is field adjustable

5)      Internal grounding screw

6)      Dustproof, Oil-Tight, Water-Resistant

7)      Temperature range +5°F to +160°F.

2. RATING

5A : 250 VAC (resistive)

0.4A: 115 VDC (resistive)

3. FIELD ADJUSTABLE

Rotary motion roller lever and rod actuators are adjustable through 360°. They may be set of operation clockwise, counter-clockwise, or in both directions. Operating heads may be positioned in any of four 90°positions.

4. EASY WIRING

1)      Loosen cover screws and remove cover.

2)      Remove rubbers strain relief from switch cover.

3)      Slip strain relief over cable.

4)      Fasten terminal screws and grounding screw tightly after Inserting cables or terminal.

5)      After wiring,insert strain relief into the groove of the switch cover.

6)      Fasten 3 cover screws evenly. Do not over tighten.

7)      Recommended cable-#18/3SJT Flexible.

5. CHARATERISTICS
