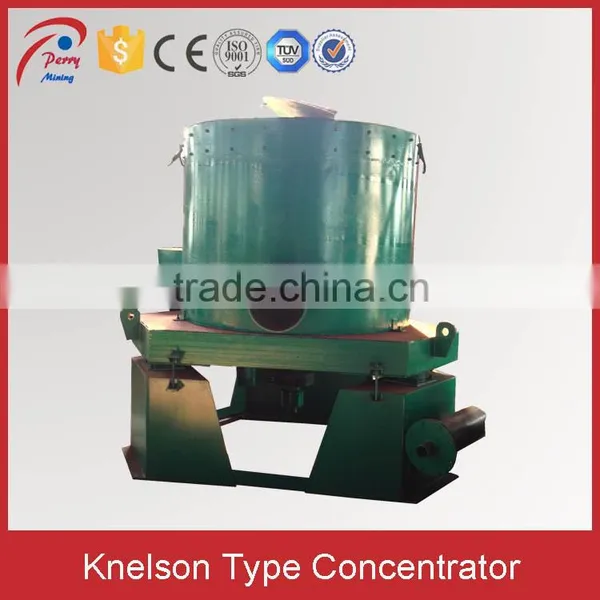

Knelson Type Concentrator, We cooperated with Mining Companies in Australia

Technical Specification

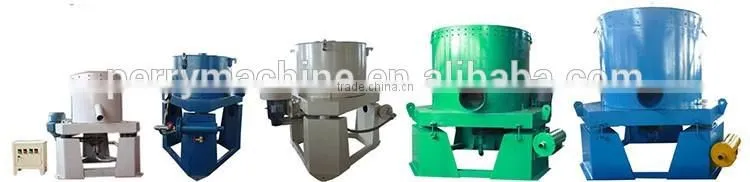

Model

STLB20

STLB30

STLB60

STLB80

STLB100

Capacity (T/H)

1-3

2-7

15-30

30-70

60-100

Feeding size (mm)

0-3

0-3

0-5

0-5

0-6

Feeding density

<50%

Fluidization water(m3/H)

1-2

4-6

10-20

20-35

40-60

Concentrates weight(kg)

2-3

8-15

25-40

60-70

70-80

Water pressure(Mpa)

0.06-0.1

0.1-0.15

0.1-0.2

Motor power(kw)

0.75

1.5

4

11

18.5

Dimension(mm)

800×700×980

1050×900×1150

1600×1400×1800

2100×1800×2100

2300×2000×2200

Weight (kg)

270

420

1600

2500

3750

Only one moving part
Rigid structure conducive to running at high speeds

Low acquisition and operating costs

Ease of Installation

High concentration ratios
A proven, robust and simple mechanical platform

Low machine weight

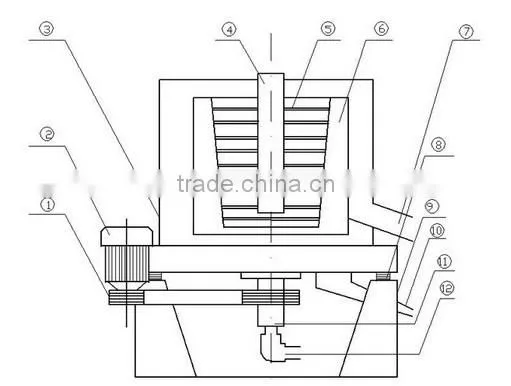

1. Belt drive

2. Motor

3. Outer shell

4. Feed tube

5. Stainless steel cone bowl

6. Pressure water jacket

7. Tailings outlet

8. Absorber

9. Framework

10. Concentrates outlet

11. Hollow shaft

12. Recoil water inlet

Part name: Cone bowl

Brand: Perry

Origin: China

In standard, the cone bowl is the stainless steel type. The customized material is acceptable, too.

As the most important part of the machine, its price takes a large percentage of the price of the whole machine.

Part name: Filter of fluidization water

Brand: Perry

Origin: China

The clean water is very important for the concentrator efficiency. The filter is used to prevent the impurities from feeding into the concentrator.

Knelson Type Concentrator

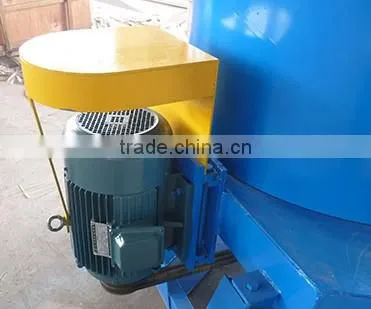

Part name: Motor

Brand: Perry

Origin: China

The elec motor is specially for export, with high quality.

For concentrator with VFD, the motor will be the Variable-Frequency Adjustable-Speed Motor.

Knelson Type Concentrator

LCL usually refers to the smaller models.

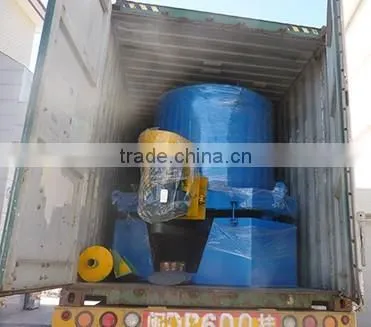

The machine is packed inside in steel frame and outside in plywood
