ABS Box C-Band LC/UPC 4CH DWDM Mux Demux 4 Channels

Name: ABS Box C-Band LC/UPC 4CH DWDM Mux Demux 4 Channels
Brand: HaiLi
Availability: InStock

FOB Price

USD $20 - $200 / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

HaiLi

Model Number:

HL-DWDW-Mux Demux-xxxx

Product Description

100GHz DWDM Mux/Demux Module

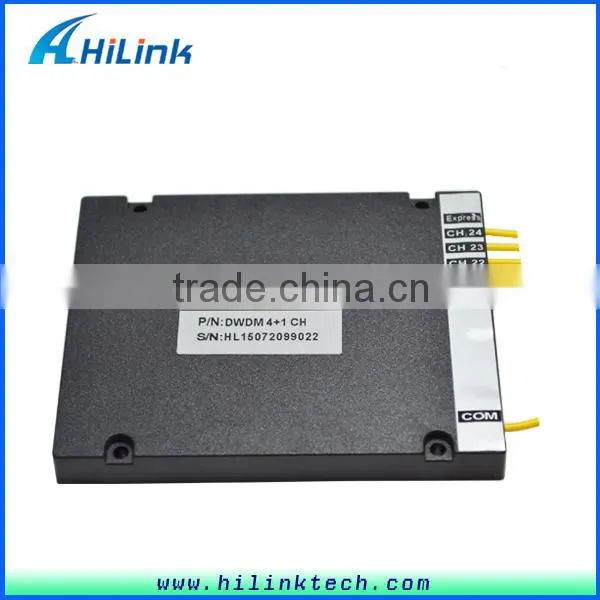

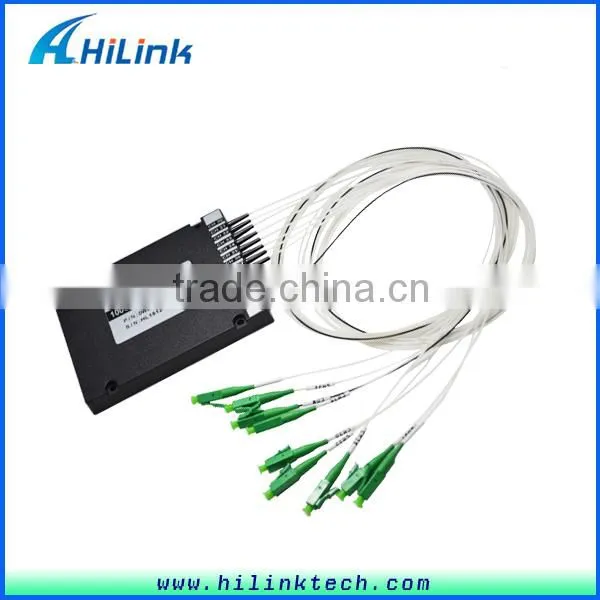

ABS Box C-Band LC/UPC 4CH DWDM Mux Demux 4 Channels

100GHz DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.

Features:
C Band
2-44 channels DWDM Mux/Demux (CH17-CH61)
Channel spacing: 0.8nm(100GHz Grid C-Band)
Com port is simplex
Protocol transparent (10Mbps to 100Gbps)
Low insertion loss
Excellent channel isolation
Epoxy-free optical path
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃
Applications:
Channel Add/Drop
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV System
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS

1xN DWDM Mux/Demux Module

Parameters
Channel Space (GHz)		100			200
Channel Number		1*4	1*8	1*16	1*4	1*8	1*16
Center Wavelength (nm)		ITU Grid
Center Wavelength Accuracy (nm)		± 0.05			± 0.1
Channel Passband (@-0.5dB) (nm)		0.22			0.5
Fiber Type		SMF-28e with 900um loose tube or customer specified
IL (dB)		1.4	2.2	2.8	1.7	2.9	3.8
Passband Ripple (dB)		0.35	0.4	0.5	0.35	0.4	0.5
Isolation (dB)	Adjacent Channel	25			28
	Non-Adjacent Channel	40
PDL (dB)		0.2
PMD (ps)		0.1
RL (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		300
Operating Temperature (°C)		-40~85
Storage Temperature (°C)		-40~85
BOX Package (mm)		1008010 or 14011518
LGX Package		1U,2U
19’’ Rack mount Package		1U

Some solutions example:

Optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.

Guarantee:

›& Brand new.

›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).

Technician support:

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.

Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

Company Informations:

Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.

RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.

Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.

We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.

We also have related optical products and good solutions to satisfy customers' requirements.

New and old customers are warmly welcomed to visit our factory and office for further cooperation.

Hope to build up a business relation with you.
