Home > Products > Piezo Buzzer-External Oscillator > 23mm Lead wire 2KHz External drive Piezo Buzzer Flange mount

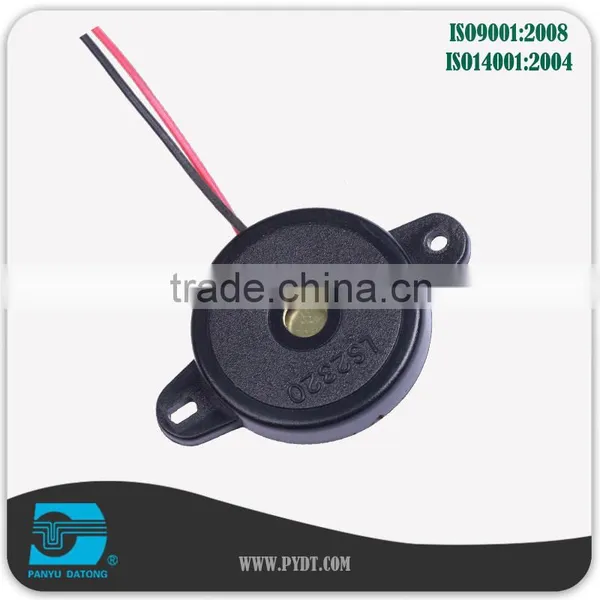

23mm Lead wire 2KHz External drive Piezo Buzzer Flange mount
USD $0.08 - $0.12
/ Piece
1000 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Guangzhou and Shenzhen
- Credit Card
You May Like
-
55mm Lead wire 3KHz External drive Piezo Buzzer Flange mount
-
17mm External drive 4Khz Black Epoxy Piezo Buzzer
-
3 wires quick connect piezo fire alarm buzzer
-
30mm External drive 2.5KHz through hole Piezo Buzzer
-
External drive wire lead Piezo transducer
-
22mm 2Khz microwave oven External drive Piezo Buzzer
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | DT | Model Number: | LS-2320TA-LZb |
| Type: | Buzzer |
Product Description
Product Description
| SPECIFICATIONS | Unit | |
| Model | LS-2320TA-LZb | |
| Diameter | mm | 22.6 |
| Height | mm | 4.5 |
| Resonant Frequency | Hz | 5000 |
| Min Sound Output | dBa | 80 min. ( 5.0 V p-p Square Ware, 10cm, 5000Hz ) |
| Capacitance | nF | 15 ± 30%.at 120Hz |
| Max Input Voltage | Vp-p | 30 |
| Rated Voltage | Vp-p | 5 |
| Operating Temperiture | °C | -20 ~ +70 |
| Storage Temperiture | °C | -30 ~ +80 |
| Housing Material | ABS |

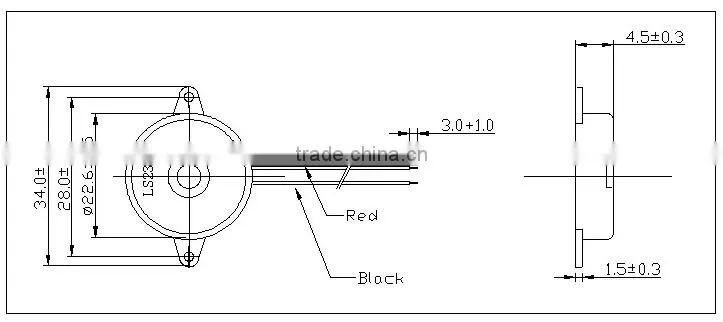

Dimension
