P8 High Resolution Outdoor LED Curtain Display

Specifications

1/CNC + Aluminum cabinets
2/Super Slim &Light Weight
3/Convenient and fast installation
4/Easy maintenance

P8 High Resolution Outdoor LED Curtain Display

Famous Brands Raw Material Selection



1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.



2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.



3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.



4) Connector: Aerial grade brands ensure the stable transmission of power and signal.



5) PCB Board: adopt 4-layer design.



6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.

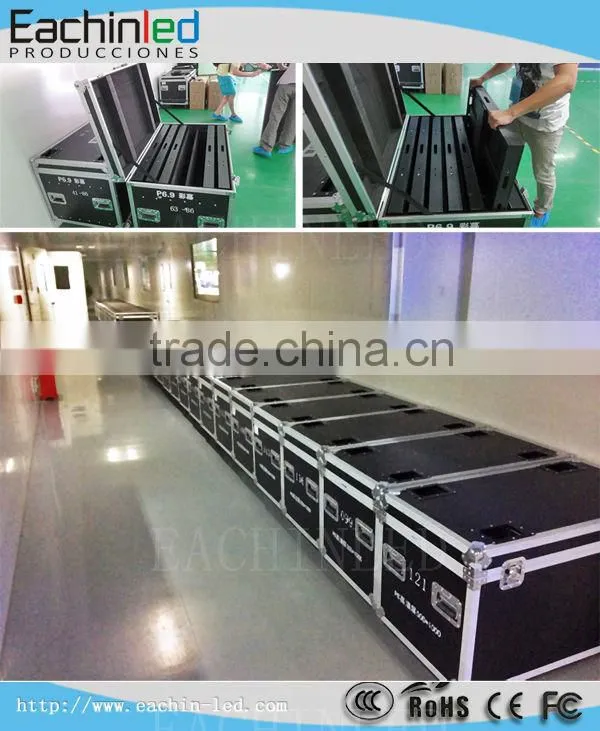

[Photos of Rental LED Screen]

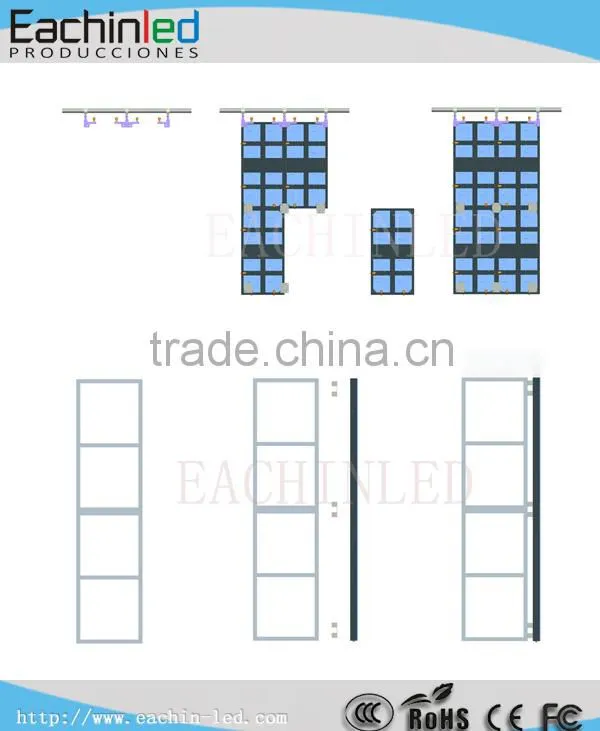

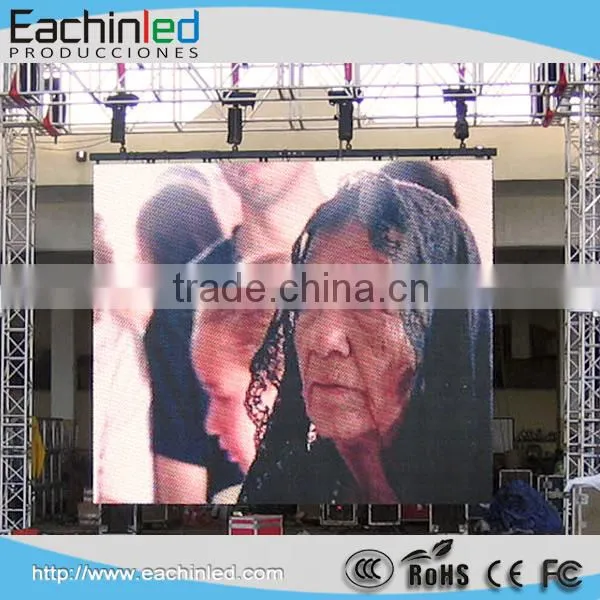

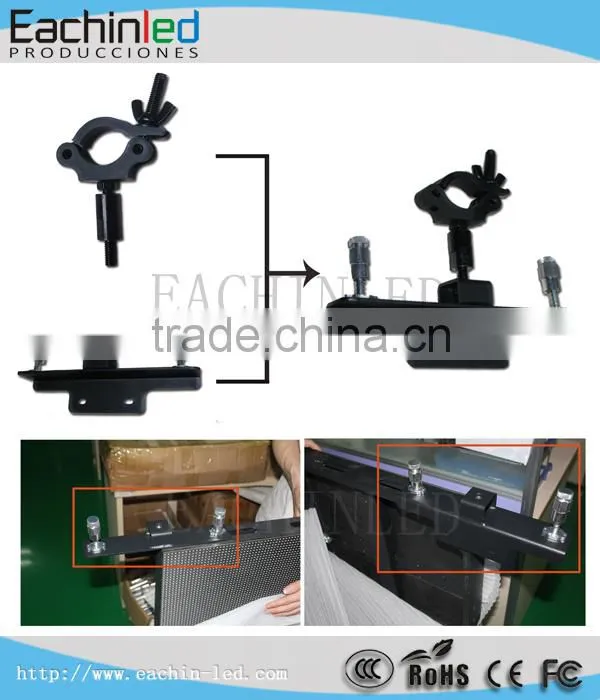

[Hanging The LED Curtain Display Screen]

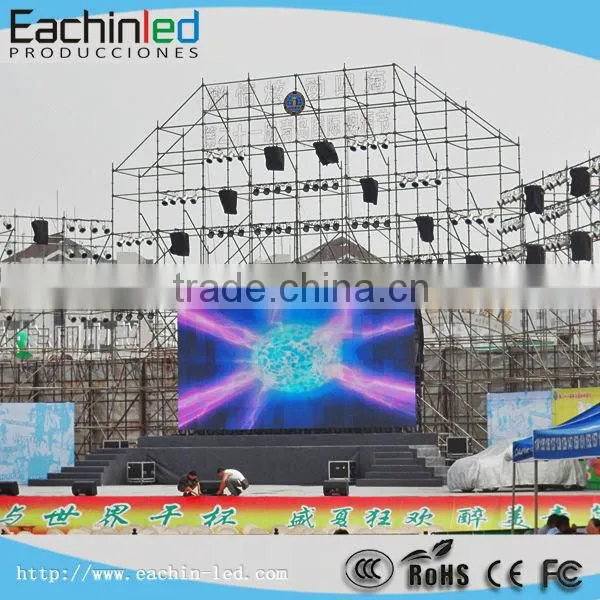

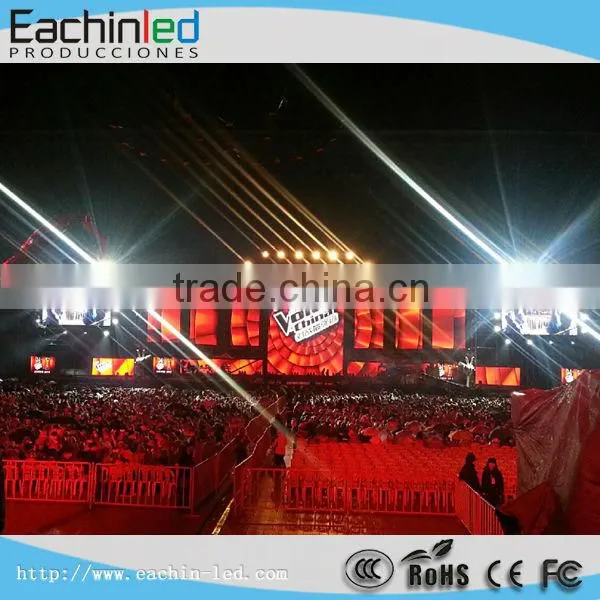

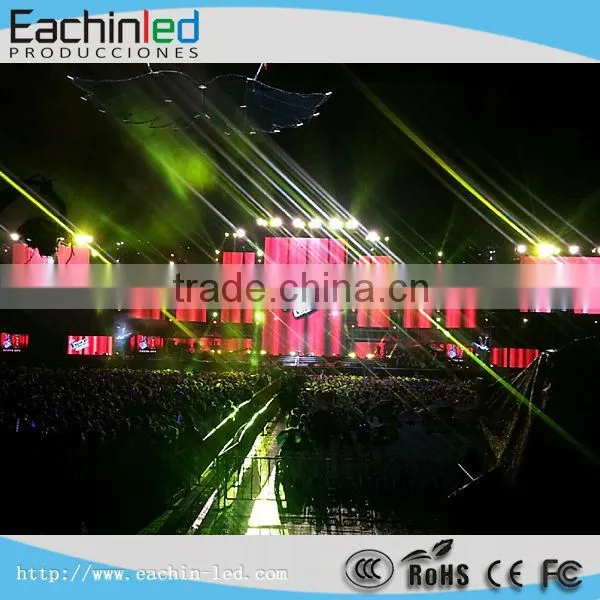

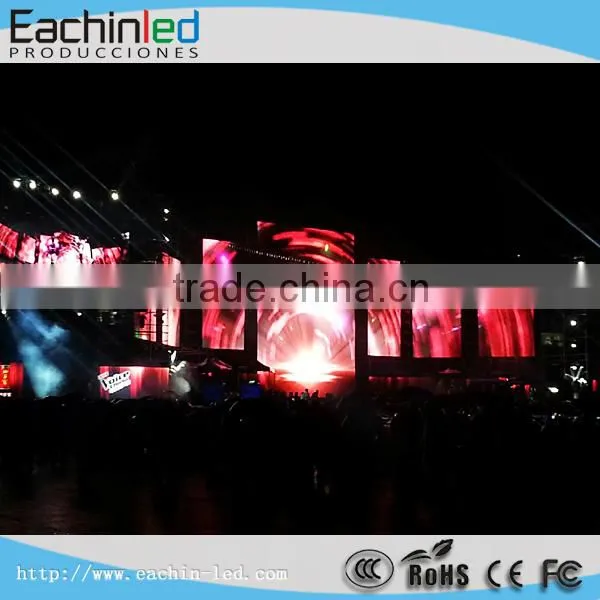

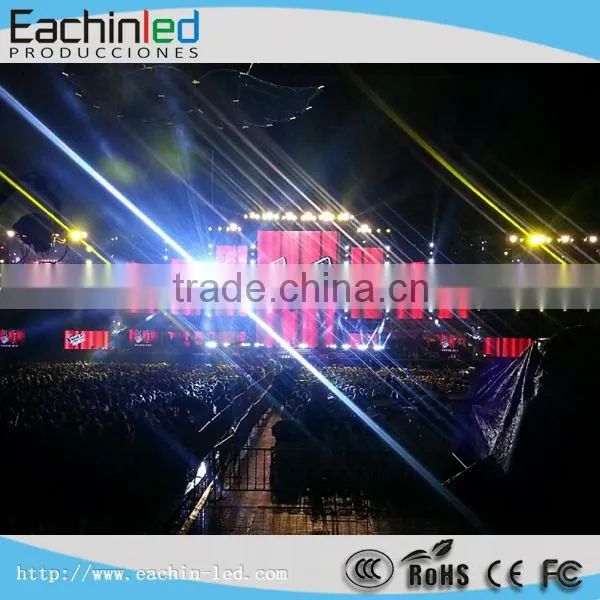

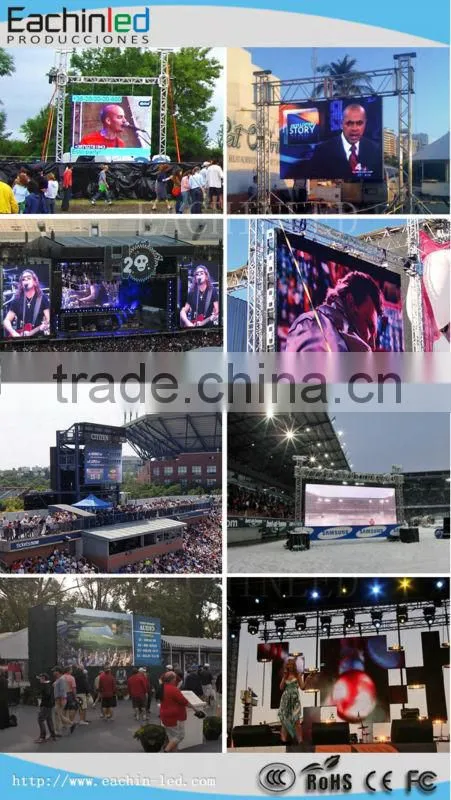

[Photos of Project On Rental Aluminum LED Display Screen]





[Specification of LED Video Curtain Display Screen]



Aluminum Rental LED Curtain Display Screen
Module	Pitch/mm	P6.944       (Indoor)	P5.2           (Indoor)	P8.925   (Outdoor)

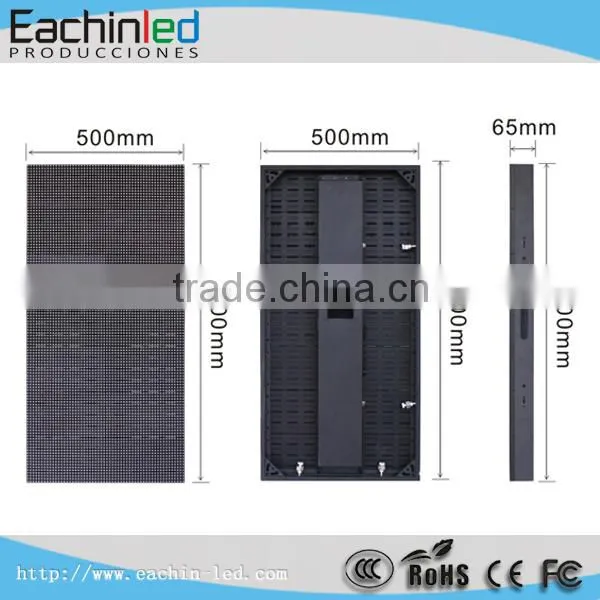

	Cabinet size/mm	500x1000	500x1000	500x1000
	Density of pixel/(dots/m2)	20,736	36,864	12,544
	Led encapsulation	SMD3528	SMD3528	SMD3535
	Resolution of module	72x144	96x192	56x112
Main	Optimum viewing distance	≥7	≥5	≥8
	View angle / °	140 H,120 V	140 H,120 V	140 H,120 V
	Average power consumption/W/m2	150	120	400
	Max power consumption/W/m2	300	200	800
	Driving method	1/9 scan constant  current	1/8 scan constant current	1/4 scan constant current
	Refresh rate Hz/S	≥2500	≥2500	≥2500
	Luminance of white balance	≥1500cd/m2	≥150cd/m2	≥5500cd/m2
	Operation of Environmental Temperature/°C	below 30  to  above 50
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),8 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>5,000h
	Life span	>100,000h
	Functionless  dot rate	<0.0001

1)Reply your inquiry in 24 working hours.



2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc



3)Customized design is available,OEM & ODM are welcomed.



4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



5)Special discount and protection of sales area provided to our distributor.



6)Warmly welcome your visit in our company if available.



7)Warranty: 24 months, a little investment for longer warranty time.
