China low cost design manufacture workshop warehouse steel structure building

FOB Price

USD $30 - $50 / Square Meter

300 Square Meters(Min.Order)

Supply Ability 1000 Ton / Tons per Month
Port Qingdao Port
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Shandong, China	Brand Name:	WeifangTailai	Model Number:	Steel Structure House
Material:	Steel	Use:	Hotel, House, Office, Shop, Warehouse, Other, Hotel, House, Office, Shop, Warehouse, Workshop,Plant

Product Description

Product Application

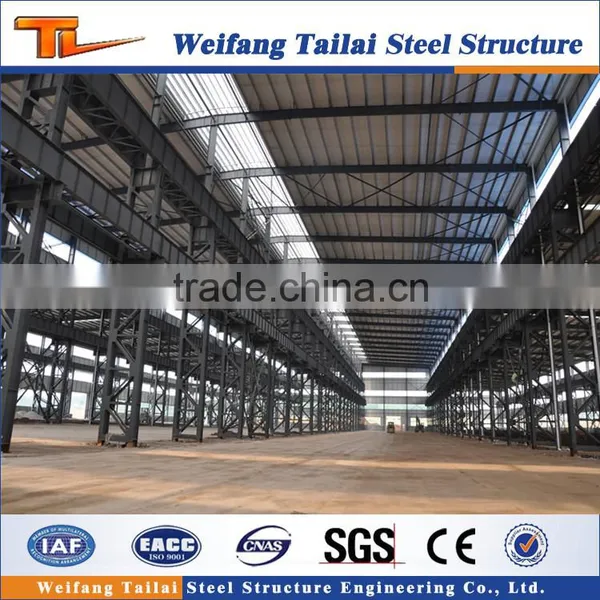

Steel structure building is formed by the main framework through linking up the H beam, C purline, Z purline steel components. Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.

SPECIFICATIONS FOR STEEL STRUCTURE BUILDING
	Item	Material	Description and surface process
Main steel frame	Column and Beam	Q235 or Q345	H section steel with two coats of mid-gray paint
Main steel frame	Purlin	Q235 or Q345	Galvanizd C or Z type steel
Connecting Pieces	Tie tube	Q235	Circular Tube with two coats of mid-gray paint
	Knee-Bracing	Q235	L50*4 Galvanizd angle steel
	Strutting piece	Q235	φ89*2.5 Galvanizd Circular Tube
	Column Bracing	Q235	Circular Tube with two coats of mid-gray paint
	Horizontal Bracing	Q235	Circular Tube with two coats of mid-gray paint
	Casing	Q235	φ30*2.5 Galvanized Circular Tube
Door and Window	Item	Description
	Door	Roller shutter door or Sliding door
	Window	PVC Window or aluminum alloy window
Other parts	Ventilating device	Fan,Ventilation window
	Bolt	Foundation bolt,High strengthen bolt, Normal bolts
	Skylight	Yx-840 Glass Fiber Reinforced Plastics
	Out/Inner ridge tile	0.50mm Color sheet
	Crane beam	Q235 or Q345 H section steel with two coats of mid-gray paint

Main Features

1)Enviromental friendly
2) Lower cost and maintenance
3) Long using time up to 50 years
4) Stable and earthquake resistance up to 9 grade
5) Fast construction, time saving and labor saving
6) Good appearance

Projects Show

Our factory

Established in year 2003, Weifang Tailai Steel Structure Engineering Co., Ltd, with registered capital 16 million RMB, located in Dongcheng Development district, Linqu County,Taila is one of the largest steel structure related produsts manufacturer in China, specializes in construction design, manufacturing, instruction project construction, steel structure material and so on ,has the most advanced product line for H section beam, box column, truss frame, steel grid, light steel keel structure. Tailai also has the high precision 3-D CNC drilling machine, Z & C type purlin machine, multi-model color steel tile machine, floor deck machine, and fully equipped inspection line.

Working Procedure

1.Cutting

Use CNC Flame Cutting Machine

2.Assembling

Use H Beam Assembling Machine

3. Submerged arc welding

Use H-Beam Welding Machine

4.Straightening

Use Vertical Straightening Machine

5. Welding

Use Carbon Dioxide arc welding

6.Ultrasonic flaw detection

Use Ultrasonic flaw detector

7.Shot blasting

Use H sectiong steel shot blasting derusing machine

8.Painting

Use High-pressure airless spraying

9.Finished

One coat of iron red primer, two coats of finished paint

Components Show

H section column

H section beam

Crane beam

Purlin

1)C type purlin

2)Z type purlin

Corrugated Galvanized Steel Sheet

1)Type:760mm, 820mm,900mm

2)Thickness:0.4mm,0.5mm,0.6mm

3)Usage:wall panel or roof panel

Sandwich Panel

1) Thickness:50mm, 75mm , 100mm ,150mm,200mm

2)Material:Rockwool , ,EPS ,PVC sandwich panel

3)Usage:wall panel or roof panel

Floor decking plate

1)Type:688mm,720mm

2)Galvanized

Packing & Delivery

Packaging
Size	11.8(L) * 2.13 (W) * 2.72 (H)
Weight	24T
Packaging Details	all of the steel structure columns and the beams ends will be packed by the blanket to protect them from the collision during the shipping in the container.

Packaging
Size	11.8(L) * 2.13 (W) * 2.72 (H)
Weight	24T
Packaging Details	all of the purlin ends will be packed by the blanket to protect them from the collision during the shipping in the container.

FAQ

Q1:Are you manufacturer or trade company?

We are professional manufacturer of steel structure building.

Q2:Are steel structure buildings expensive?

The steel structure of Weifang Tailai company is economic. Its technology and materials used decreases cost of the building . All the material including the steel frames, wall body and roof for installation are prefabricated during the production process, therefore the labor costs for installation is decreased.

Q3:What if I have questions during the installation of my building?

we can send our engineer to your country to guide the workers, or we also have professional service team ,they will help you install the steel structure building .

Q4:Is there any warranty available on the steel structure buildings?

The steel structure buildings have limited warranty. Usually, we build the house complied with the GB Chinese standard
