MD-390 dmr walkie talkie from China
- 100000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
- 400-480MHz MD-380 scanner China two way digital radio
- New arrival 5watts digital radio MD-390 two way radio
- hot selling MD-390 outdoor waterproof radio dmr woki toki
- ST-9800 Repeater Vehicle Mouted Radio for Car walkie talkie
- VKsantong dual band VK-N9 two way radio with bluetooth optional
- VKsantong ST-9900 Digital dual band car radio transceiver for moblie walkie talkie talkie
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM/TYT | Model Number: | MD-390 |
Type: | Handheld | Dimensions: | 125mm x63mmx38mm | Frequency Range: | 400-470MHz |
Storage Channel: | 16 | Talk Range: | 5-8km |
Product Description

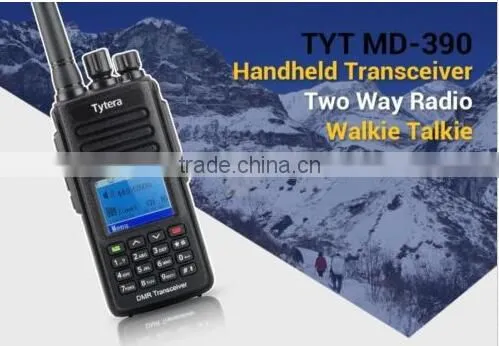

Tytera TYT New arrival MD-390 dmr walkie talkie Waterproof
Compatible with Motorola and Hytera DMR Mototrbo digital radio
About this item: MD-390 dmr walkie talkie
1, Compatible with Mototrbo Tier I and Tier II
2, use Time-Division Multiple-Access(TDMA) digital technology
3, Complying with digital protocol ETSI TS 102 306-1,-2,-3
4 ,Analog and digital mode combined
5, Up to 1000 channels
6, Emergency call
7, Quick text message in digital mode
8, 2800 mAh battery capacity
9, Lone worker
10, 1750Hz tone

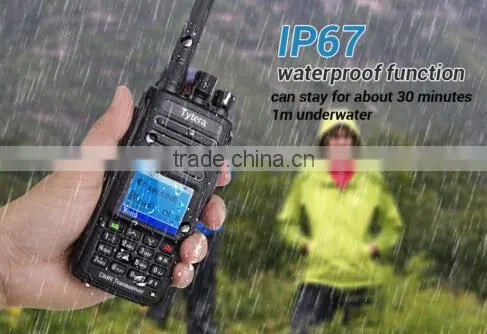

11, IP67 waterproofed radio body
12, 8 hours digital voice recorder
13, Private/group/all call
14, Enhanced encryption

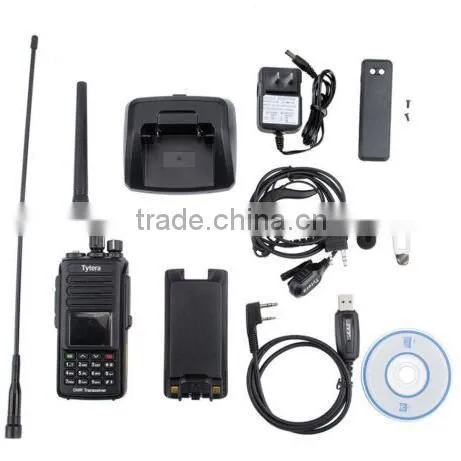

Full set including:
1 x TYT MD-390 DMR radio
1 x Battery
2 x Antenna
1 x Charger
1 x Belt clip
1 x Manual
MD-390 Digital radio
pecification:
General | |
Frequency Range (UHF or VHF optional) | UHF: 400-470MHz ( VHF: 136-174MHZ optional) |
Channel Capacity | 1000 |
Channel Spacing | 12.5KHz |
Operating Temperature | -30℃~ +60℃ |
Operating Voltage | 7.5V DC ±20% |
Battery | 7.4V 2800mAH Li-ion |
Frequency Stability | ±2.5 ppm |
Dimension (with battery and antenna) | 125mm x63mmx38mm |
Weight (with battery and antenna) | 243g |
Transmitter | |
RF Power Output | 5W(H)/ 1W(L) |
Frequency Modulation | 16KφF3E/11KφF3E (Analog) 4FSK(Digital) |
Antenna Impedance | 50Ω |
FM Modulation mode | 12.5KHz:11K0F3E |
4FSK Digital Mode | 12.5KHZ:7K60FXD(data)/7K60FXE(data&voice) |
Modulation maximum deviation | 2.5KHz 12.5KHz |
Modulation Distortion | < 5% |
Nonactive Slot Power | -57dbm |
Vocodec Type | AMBE+2TM |
Digital Protocol | ETSI TS 102 361-1 -2 -3 |
Receiver | |
Analog Sensitivity | 0.35μV / -116dBm(20dB SINDA) 0.22μV / -120dBm(Type) |
Digital Sensitivity | 0.3μV / -117.4dBm(BER5%) 0.22μV / -110dBm(BER1%) |
Co-channel Rejection | ≥-12dB |
Adjacent Channel Selectivity | TIA603C:65dB ETSI:60dB |
Spurious Response Rejection | TIA603C:75dB ETSI:70dB |
Rated Audio Output | 1W |
Audio response | =1dB~-3dB |
Rated Audio Distortion | <3% |
A two-way radio is a radio that can both transmit and receive (a transceiver), unlike a broadcast receiver which only receives content. A two-way radio (transceiver) allows the operator to have a conversation with other similar radios operating on the same radio frequency.
TWO WAY RADIO FUNCTION FOR LIFE AND TRAVEL.INDUSTRIES..ETC
Package for two way radio:
Gift box per piece, 40sets/CTN, Normal Carton : 63x43x57 cm
Shipping:
By sea ,by air, by Express, for example DHL,UPS, FedEx, EMS, TNT or local logistics
Delivery date:
1-5 working days for order less than 100pcs
5-10 working days for order less than 500pcs
10-20 working days for large OEM order
16 year new products are available. Here are some reference.
VK-310, COLOR TWO-WAY RADIO MINI

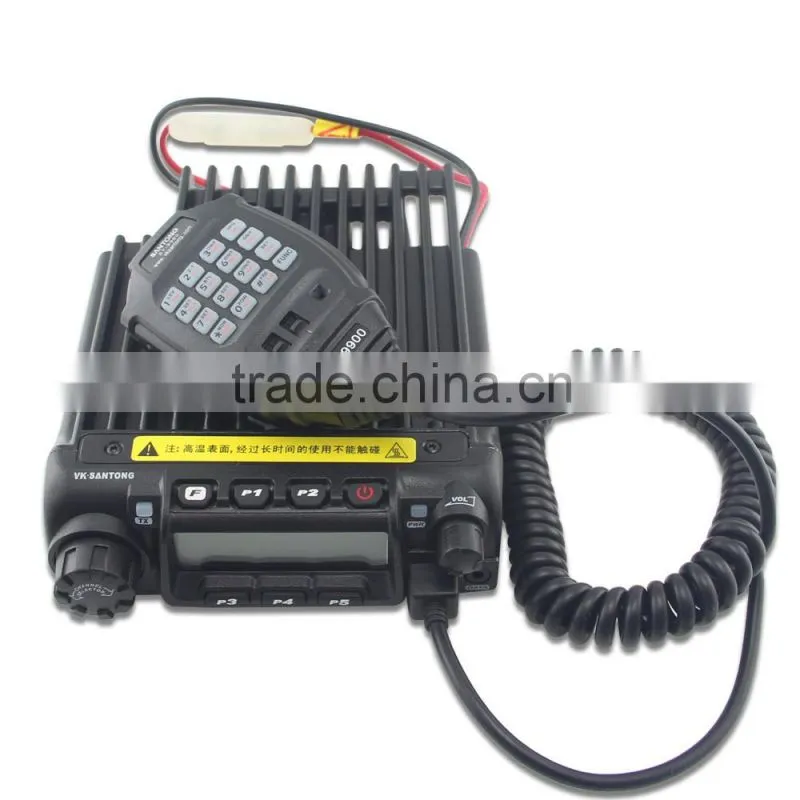

ST-9900, Car mobile radio two way radios
More details, please feel free to contact us. Looking forward your early reply. Thank you.
Service
1. OEM & ODM serivice offered
2. Sample Cost can be refund after order reached 1000 sets.
Warranty:
* Before delivery , we will check the items' quality strictly one by one .
* 12 months for radio body & 6month for accessories warranty, please contact us immediately when you get defective,thanks.
Payment terms
Payment(shown on home page to customer anti cheater ): T/T, Western Union, escrow
Notice: Please do NOT believe anybody by Email say Our bank changed, thank you
Shenzhen VK-Santong Electronics Science & Technology Co., Ltd. is located in LongHua District of Shenzhen City, which was founded in 2000, With Supply competitive price Best quality two way radio products we established good business relationship with customers all over the world. We are glad cooperate with you, please contact Us freely to get more Information,Thank you.
