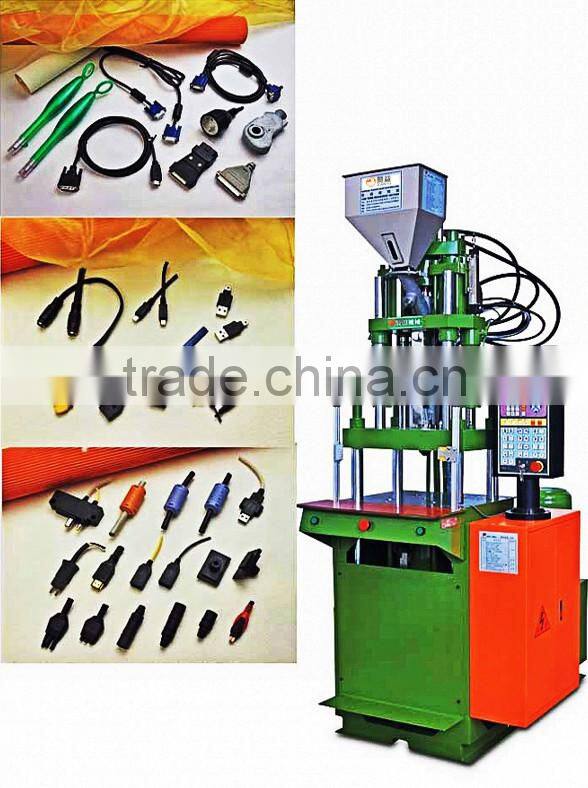

35T injection molding machine for plastic products

FOB Price

USD $8,000 - $8,200 / Set

1 Set(Min.Order)

Supply Ability 600 Set / Sets per Month
Port Shenzhen

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Other, screw injection	Style:	Vertical
Brand Name:	ZAN YI	Model Number:	ZY-250ST	Place of Origin:	Guangdong, China
Plastic Type:	Thermoplastic	Automatic:	Yes	Injection Weight:	56g,64g,74g
Injection Rate:	57cm3/sec,66cm3/sec,75.5cm3/sec	Clamping Force:	35T	Opening Stroke:	180mm
Power(W):	6.3KW	Certification:	CE,ISO9001:2008	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

35T injection molding machine for plastic products

Specifications:
MODEL	UNIT	ZY-250ST
Screw Diameter	Mm	26	28	30
Injection Pressure	kg/cm²	1530	1278	886
Theoretical Shot Volume	cm³	61	70.8	81
Max.Shot Weight(ps)	g	56	64	74
Safe Shot Weight(ps)	OZ	2	2.27	2.6
Max.Shot Weight(ps)	cm³/sec	57	66	75.5
Injection Rate	mm	115
Screw Speed Max.	rpm	0-205
Nozzle Comtact Force	Tons	4.45
Nozzle Retraction Stroke	mm	170
Number of Temperature Control		3
Clamping Force	Tons	35
Platen Size	mm	540*380
Distance between tie bere	mm	375*205
Min.Mold Height	mm	158/58
Opening Stroke	mm	180
Max.Open Daylight	mm	338/238
Ejetor Force	Tons	1.3
Ejetor Stoke	mm	35
Max.Hydaulic Pressure	kg/cm²	140
Pump Output	l/min	34.5
Oil Resservoir Capacity	l	100
Cooling Waer Consumption	l/hr	400-600
Pump Motor Power	KW/HP	3.75/5.5HP
Berrel Heating Power	KW	2.4
Total Electricity	KW	6.3
Packing Weight	Kg	1.8ton
Packing size(LxWxH)	m	1.761.152.3

Features:

1.Alternate the two lower dies of CY-ST series single-mode cross slide board on a flat surface.The lower die is used for inserted action outside.Because high working safe features,working efficiency can be advanced in a large range . The finished goods are propped up to outside for completion.(Lower die independent thimble)

2.Material tube can be lifted .It is easy to clean stub bar.It is easy to fix die.

Samples produced:
