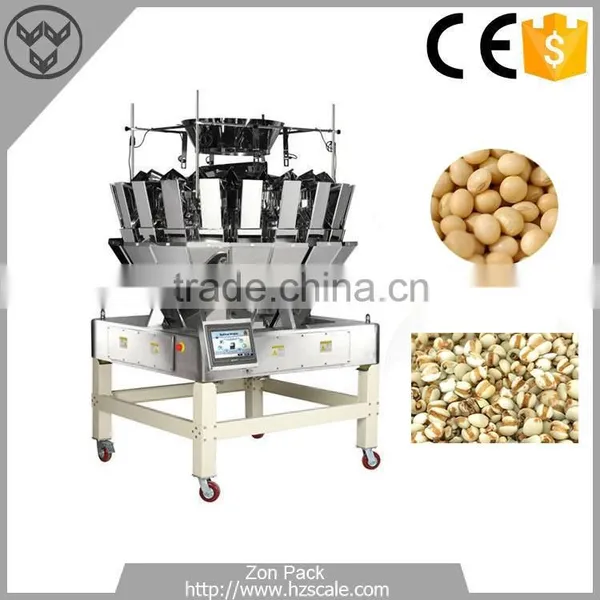

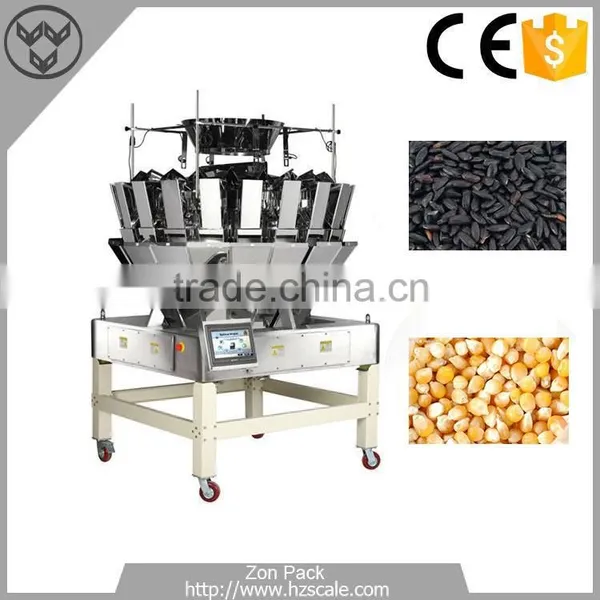

10g-2000g 20 Heads Grain Multihead Weigher Melon Seeds Weighing Scale

Application

ZH-A20 is suitable for weighing grain, stick, slice, globose, irregular shape grain such as screw niblet, soybean, rice, melon seeds, etc.

Technical Specification

Model

ZH-A20

Weighing Range

10-2000g

Max Weigh Speed

65*2 Bags/Min

Accuracy

±0.1-1.5g

Hopper Volume(L)

1.6/2.5

Driver Method

Stepper Motor

Option

Timing Hopper/ Dimple Hopper/ Printer/

Overweight Identifier / Rotary Top Cone

Interface

7"HMI/10"HMI

Power Parameter

220V/ 2000W/ 50/60HZ/

Package Volume (mm)

1650(L)×1650(W)×1500(H)

Total Weight(Kg)

880

Technical Feature

1. Machine has twin independent frame with double storage funnel, double vibrator, and double discharged outlet. It can run up to 65 WPM for two different products.

2. Machine can weigh 2 different products simultaneously with different parameters.

3. Machine can mix 2 different products with different weight.

4. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.

5. High precise digital weighing sensor and AD module have been developed.

6.Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.

7. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.

8. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines.

9. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.

10. Different authority can be set for different operator, which is for easy management.

11. Multi-language operation system can be selected basing on customer’s requests.

Remarks:

  Options for sticky product: dimpled surface or teflon coating

Options for long size product: 2.5L hopper& rotary top cone

This Machine can mix 2 different products with different weight.
