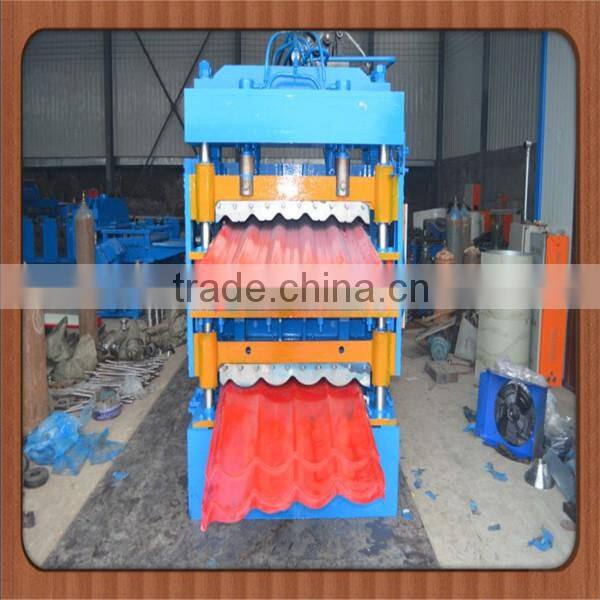

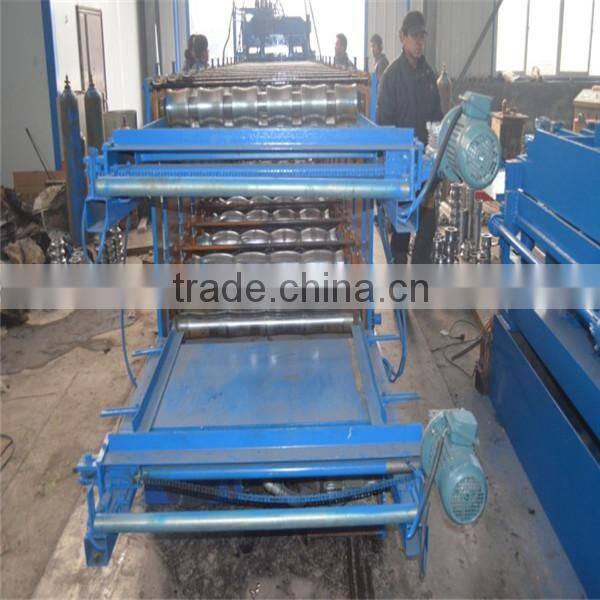

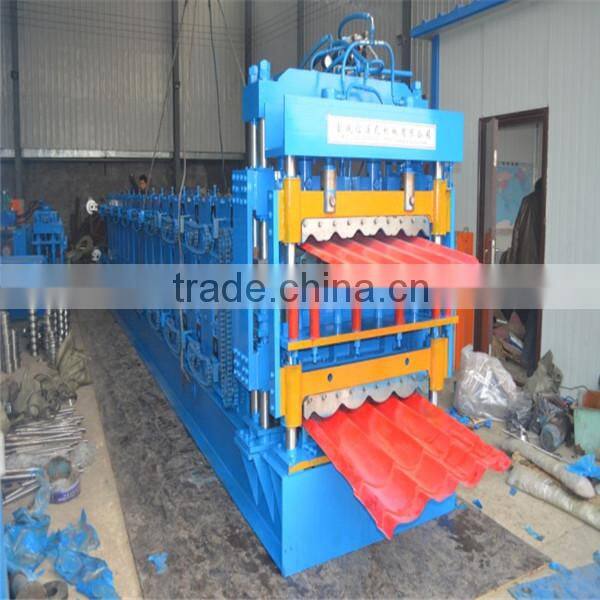

New type- double tiles sheet forming machinery

FOB Price

USD $10,000 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Tianjin CN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Glaze	Use	Roof
Production Capacity	1-3m/min	Place of Origin	Hebei, China
Brand Name	JCX	Model Number	JCX828 & 800
Dimension(LWH)	8500x1500x1500mm	Certification	TUV
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

High quality;
Warranty: 1 year;
If necessary, engineers available to service machinery overseas;
TUV Certification

Product Description

Processes: Man-made uncoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table

Specifications:

No.	Item	Description
1	Suitable material	Color steel sheet ,galvanized steel sheet, Aluminium sheet
2	Working speed	1-3m/min
3	Main motor power	4kw with cycloidal reducer
4	Hydraulic station power	5.5kw
5	Electrical control system	PLC control system with famous brand
6	Thickness of material	0.25mm~0.8mm
7	Shaft diameter	70mm
8	Roller station	13 stations & 13stations
9	Material expand axis	1000mm/1200mm/1220mm/1250mm
10	Dimension	8500x1500x1500mm
11	Driving mode	Chain
12	Electric tension	380V 3phase 50HZ or as the customer's requirements
13	Material of roller	High grade 45# forged steel plated with hard chrome plating
14	Material of cutting	Cr12 mould steel with quenched treatment
15	Working time	Can be 24 hours
16	Workers	1-2 only

Our machine's advantage

Packaging & Shipping

Seaworthy Packing:

Our Services

We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.

FAQ

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	seaworthy packing
Delivery Time:	30 days
Payment Terms:	T/T, LC, CASH ETC
Supply Ability:	30 Sets per month
