Asian polycarbonate sheet manufacturer clear pc hollow panel for roofing (TN3580)

Name: Asian polycarbonate sheet manufacturer clear pc hollow panel for roofing (TN3580)
Brand: TONON
Availability: InStock

FOB Price

USD $1.6 - $12.25 / Square Meter

670 Square Meters(Min.Order)

Supply Ability 9700 Square Meter / Square Meters per Month
Port Guangzhou / Shenzhen / Foshan
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	TONON
Model Number	TN03580

Product Description

Features Of Foshan Tonon Polycarbonate Panel

1. Light Transmission

The light transmission reaches 12%-82% depending upon colour and thickness.

2. Thermal Insulation

Proprietary hollow form contributes to reduce the energy consumption and therefore energy costs.

3. Fire Retardancy

According to GB8624-1997, the fire retardant classification of TONON project sun sheet is B1.

4. Impactresistance

Its outstanding toughness offers greater protection against breakage during transportation, installation and usage. The impact strength is 10-27 times as much as plexiglass.

5. UV-Protection

Attributing to the proprietary UV surfaces. Remain perfect mechanical and optical properties after exposed to extreme weather for a long time.

6. Sound Insulation

The hollow from and polycarbonate resin offer significant advantage to the sound insulation.

7. Weatherability

It have good weather ability can maintain excellent properties in a wide temperature range form -40 °C to 120 °C.

8. Easy installation

Easy installation can be cold bent.

Specificatioing of Foshan Tonon Polycarbonate Panel

Thickness	Weight	Length	Width	Min Curving	Light transmission%( ± 3%)
mm	kg/ sqm	mm	mm	mm	Clear	Opal	Blue	Lake-blue	Brown	Light-green
4	1	6000	2100	700	80	57	45	55	55	45
6	1.4	6000	2100	1050	79	56	36	50	53	42
8	1.5	6000	2100	1400	78	52	30	47	51	40
10	1.7	6000	2100	1750	77	44	25	42	48	35

Technical Features of Foshan Tonon Polycarbonate Panel

No.	Characteristics	Unit	Data
1	Impact Strength	J/m	50
2	Light Transmission	%	88 - 92
3	Specific Gravity	g/cbm	1.2
4	Coefficient of Thermal Expansion	mm/m °C	0.065
5	Service Temperature	°C	-40 °C ~+120
6	Heat Conductivity	W/ sqm * °C	0.21
7	Tensile Strength	N/sqmm	≥ 60
8	Flexural Strength	N/sqmm	100
9	Modulus of Elasticity	Mpa	2400
10	Tensile Stress at Break	Mpa	≥ 65
11	Elongation at Break	%	>100
12	Specific heat	KJ/kg*k	1.17
13	Heat Deflection Temperature	°C	140
14	Effect of Soundproof	10mm PC Hollow Panel	Attenuation 20 db

Applications of Foshan Tonon Polycarbonate Panel

1) Roofing for swimming pool, shopping malls, commercial streets.

2) Sunshade for stadiums and bus stops, gazebo, open-air carport.

3) Lighting canopy for corridors,passages and subway entries.

4) Flashing for bank ATMs, telephone box, gateways, garages.

5) Sound and heat insulation wall for expressways and houses.

6) Heat preservation material for agricultural greenhouse, flower greenhouse.

7) Soundproof material for partitions.

8) Unbreakable material for glazing windows, roof glazing.

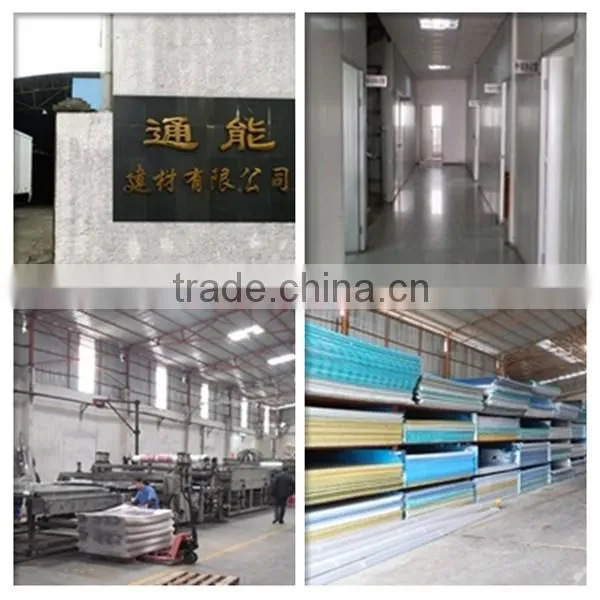

Company Information

Our Factory Location:

Note: Foshan, a city where is near Guangzhou Port in Guangdong Province, China.

Packaging & Shipping

FAQ

Clean And Maintenance:

In case there is any filler, grease or paint adhered or polluted the surface of the pc sheet, remove it with a piece of soft cloth soaked with alcohol it become hardening. Never use the benzene, gasoline, acetone or carbon tetra chloride of cleaning, do not clean the sheet with any solvent exposed under direct sunshine or under forced bending, for it may crack. Generally wipe off the dust and dirt on the pc sheet by a piece of soft cloth or sponge soaked with neutral detergent first, rinse it with clear water thoroughly, and dry it with a piece of soft cloth finally.

To Clients and Readers:

This information and our technical advice whether verbal, in writing or by way of trails are given in good faith but without warranty, and this also applies where proprietary rights of third parties are involved. Our advices does not release you from the obligation to check its validity and to test our products to their suitability for the intended process and uses. The application, use and processing of our products and the products manufactured by you on the basis of our technical advice are beyond our control, therefore, entirely you own responsibility. Our products are sold in accordance with the current version of our General Conditions of Sales and Delivery.

Our Services

Length: not limited

Max width: 2100mm

Thickness: from 1mm to 18mm

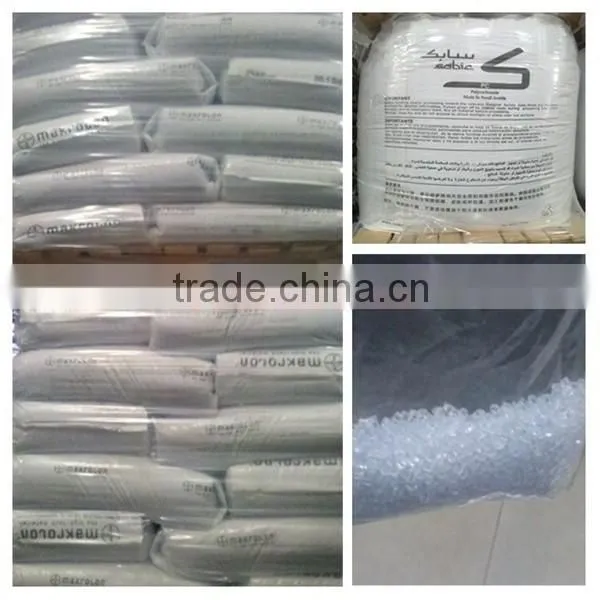

Material: Makrolon Polycarbonate resin from Bayer, Germany.

Product line: 4 lines for hollow polycarbonate panel and 4 lines for solid polycarbonate panel.

Customized colors and dimensions available upon request contact us!
