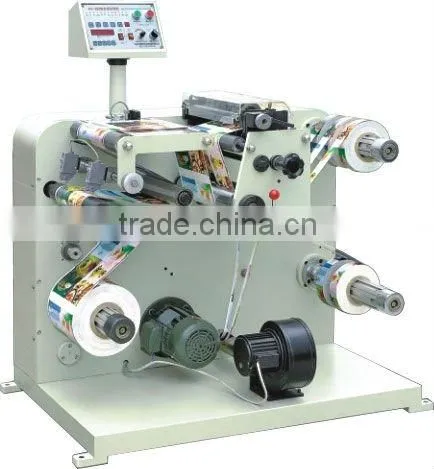

High-speed Label Slitting & Rewinding Machine

Name: High-speed Label Slitting & Rewinding Machine
Brand: TianRun
Availability: InStock

FOB Price

USD $3,500 - $4,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	TianRun	Model Number:	TRMQ-320
Certification:	CE	Condition:	New

Summary:

This automatic slitting machine is a complete set of equipment for full automatic roll trademark printing machine and roll die cutting machine.
It’s applicable to slit the narrow scope paper, automatic meter counting, quantity of paper (piece) and seeting the length, automatic stop, giving an alarm an unwinding, photocell automatic correcting the error, inflatable shaft receiving material, tension controlling, imported photocell recording paper number.
It’s of tight construction and is characterized by quickness, accurate slitting ease of operation and stable film running.

Main Technical Parameters:

Model	TRMQ-320
Max. Mother Roll Width	320mm
Max. Mother Roll Diameter	500mm
Min. Width	10mm
Max. Rewinding Diameter	480mm
Slitting Speed	75m/min
Error Precision	±0.3mm
Main Motor Power	1.5kw
Machine Weight	450kg
Machine Dimension	1500×1000×1200mm
Working Voltage	380V 3-phase 50Hz
Tianrun retains the right to modify parameters without previous advice.
