EYH1000 Planar Mixer For Mixing Solid Material
- 40 Set / Sets per Month
- Shanghai Shenzhen Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | NOAH | Model Number | EYH1000 | |
| Certification | CE, ISO9001/CE | Application | Other, Food,Pharmaceutical,Chemical Mixer Machine |
Product Description
EYH1000 Planar Mixer For Mixing Solid Material
Applications:
EYH1000 Planar Mixer For Mixing Solid Material is widely used in pharmaceutical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1,000tp 12,000litres).
Working Principle
The mixing tank is a cylinder-shape barrel without any stirring device inside, which makes the self-rotation around its axis and also produces onvert swing movement around its plane axis synchronized. Therefore, the target materials inside the barrel could be mixed diffusely and moveably. EYH1000 Blending Machine is featured with short mixing time, good uniformity, big output, convenient to discharging, etc.
Technical Parameters

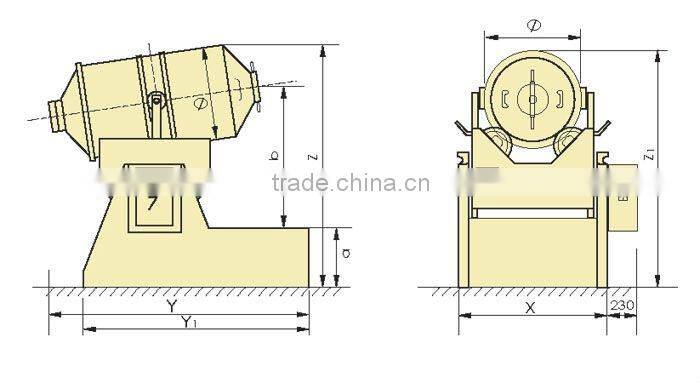

Model | Barrel volume (L) | Loading capacity (L) | Max Loading Weight (Kg) | Turn/Swa (r/min) | Total Power (Kw) | Overall Dimension (X*Y*Z*Z1) (mm) | Y1 (mm) | Barrel Dia. (mm) | Total Weigh | Barrel weight |
EYH300 | 300 | 180 | 90 | 18/11 | 1.3 | 925*905*1480*1360 | 1460 | 600 | 340 | 60 |
EYH600 | 600 | 360 | 180 | 16/9 | 2.2 | 1145*1105*1750*1600 | 1650 | 750 | 1150 | 140 |
EYH800 | 800 | 480 | 240 | 10/6 | 3 | 1305*1255*1900*1790 | 1990 | 820 | 1600 | 200 |
EYH1000 | 1000 | 600 | 300 | 8/6 | 3 | 1375*2255*1910*1770 | 2950 | 900 | 1700 | 240 |
EYH1500 | 1500 | 900 | 450 | 9/5 | 4.4 | 1505*2445*2200*2100 | 3200 | 1000 | 2000 | 320 |
EYH2000 | 2000 | 1200 | 600 | 8.5/5 | 5.2 | 1635*2445*2255*2120 | 3250 | 1130 | 2600 | 430 |
EYH3000 | 3000 | 1800 | 900 | 7/4.5 | 7.0 | 1905*2755*2600*2420 | 3650 | 1300 | 3500 | 620 |
EYH4000 | 4000 | 2400 | 1200 | 7.8/5 | 9.5 | 2035*3205*2755*2550 | 4200 | 1400 | 4100 | 700 |
EYH6000 | 6000 | 3600 | 1800 | 7/4 | 13 | 2265*3805*3230*2960 | 5040 | 1600 | 6100 | 1100 |
EYH8000 | 8000 | 4800 | 2400 | 6.7/4.5 | 13 | 2555*4305*3680*3390 | 5510 | 1800 | 7900 | 1450 |
EYH10000 | 10000 | 600 | 3000 | 6/4.2 | 18.5 | 2665*4355*3800*3420 | 5670 | 1900 | 10000 | 1700 |
EYH12000 | 12000 | 7200 | 3600 | 6/4 | 18.5 | 2765*4985*4120*3760 | 6500 | 2000 | 13000 | 2000 |
EYH15000 | 15000 | 9000 | 4500 | 6/4 | 22 | 3035*4855*4500*4150 | 6700 | 2300 | 15000 | 2500 |
EYH20000 | 20000 | 12000 | 6000 | 5/3.5 | 30 | 3295*5155*5000*4500 | 7050 | 2500 | 18000 | 3100 |
