aluminum profile copy milling machine, copy router and 3-spindle drill milling machine

CNC  Milling Drilling Machine Center DMCC6 Feature:

◆ The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.

◆ It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°

◆ It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.

◆ It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.

◆ Equipped Six cutters positions, the cutter can change quickly and automatically .

◆ The semi-closed guard improved security greatly.

◆ Clamping device position can be optimized and put to right position automatically and freely.

DMCC82 CNC Milling Drilling Machine Center for Aluminum profile Feature:

◆ For curtain walls, aluminium profiles and so on.

◆ Drilling and milling functions.

◆ Spindle: Italy HSD, 18000 rpm/min.

◆ Industrial personal computer: Taiwan ADVANTECH.

◆ Servo motor and driver: Japan OMRON.

◆ Ball screw and square guide rail: Japan ABBA.

◆ A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.

◆ Half dry cooling system, with plant oil, no damage to workers and environment.

◆ Continue to work from the breakpoint.

◆ Equipped with professional software CAD-CAM.

◆ Light curtain to protect workers effectively.

◆ Lock Knife block is convenient to change cutters.

DMCC82 Technical Parameter:
Power: 380V/50Hz/11kw
Air pressure: 0.5-0.8Mpa
X axis stroke: 3600mm
X axis speed: 120m/min
Y axis stroke: 380mm
Y axis speed: 80m/min
Z axis stroke: 400mm
Z axis speed: 60m/min
Max. processing speed: 3m/min
Location error: ±0.05mm
Resetting error: ±0.02mm

Processing error: ±0.1mm
Surface roughness: Ra12.5μm
Overall dimension: 5380x1890x2240mm
Weight: 3000kg

                                                                                         DMCC3H CNC Milling Drilling Machine Center

DMCC3H CNC milling drilling machine center for aluminum profile Features:
◆ The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
◆ It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
◆ It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
◆ It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.
◆ The rotary workbench can change the position among -90°、0° and +90° arbitrarily, one time clamping can finish milling for three sides.
◆ It adopts PA control system from Germany, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.

CPA3 CNC Milling Drilling Machine Center

1. Integrated machine structure with heat styling and good rigidity.

2. Integrated design of electrical cabinet and machine structure, makes transportation, installation, operation much easier with high stability.

3. Equipped with crumb guide device, aluminum and steel crumb will be gathered at bottom drawers, which makes clean much easier.

4. Double-location design with very high efficiency, more work locations can be increased according to customer requirements.

5. X, Y, Z axis max. positioning speeds up to 80M, 60M, 60M / min, which is fastest speed in similar machine among this field.

6. Imported pneumatic circuits for clamping device, make holders have a greater lateral movement range, suitable for processing different profiles.

7. Point control for holder brake, workers can move and locate clamping device much easier.

8. All tank chains, guide rails, racks and ball screws are equipped with protective covers, which can efficiently prevent crumb and extend lifespan of these spare parts.

9. Equipped with automatic lubrication system to facilitate maintenance.

10. Equipped with SAGELY micro lubrication system (USA), vegetable lubrication oil, non-toxic, non-pollution, effectively protect milling tools and increase tool life.

11. Spindle adopts GELLS brand ( Taiwan ), maximum speed up to 12000Rpm.

12. Tool magazine adopts KUJI brand ( Taiwan ), equipped with 16 tools, neighboring tool change speed is 2.5 seconds .

13. With rigid tapping function, much faster and precise, it is different with floating tapping.

14. Servo spindle motor can output max. 23.9Nm during low-speed, speed up to 11000rpm, fully suitable for heavy steel, copper and aluminum profiles.

15. Equipped with disc face milling tool, makes face milling much efficient.

16. Imported German PA system is equipped with standard hole database, workers can select graphics and input coordinate directly, with simple operation. For complex or non-standard graphics, workers can process with CADCAM which is equipped on machine.

17. Tool presetting is not needed before exchange tools, tool length can be input into CADCAM system for process, much easier and efficient.

18. Automatic crumb cleaning device ( Optional ).

19. Barcode scanner to scan labels on profiles, fit using CIMS system, to save labor, reduce error and improve production efficiency.

Technical Parameters:

Voltage 380V-3P-50HZ

Power 13kw

Air Consumption 240L/min

X-positioning Speed 80M/min

Y-positioning Speed 60M/min

Z-positioning Speed 60M/min

Tool Magazine 16 tools

Max. Speed for Spindle 11000rpm

Max. Profile Section 7000×380×300mm

Overall Dimension 9900×2250×2560mm

We are a manufacture founded in 2000. 66000M2 Industrial Zone,export to over 60 countries in the past 15 years.:
We have passed BV , SGS ,CE,UL,and Intertek authentication .
Welcome to visit our factory in Jinan City,Shandong Province,China .

Or check the video regarding our factory on website: .

All of our products are made according to customers’ requests .

Parker Machinery Co., Ltd China:

Mainly provides

1)aluminum window door machine,
2)insulating glass machine,
3)PVC window and door machine,
4)curtain wall equipment for aluminum profile,stainess steel, curtain wall etc.

With advanced technological equipment, tremendous technical strength and reliable product quality, aluminum curtain wall high speed copy routers are highly appraised by customers from over 100 countries and districts.

Dubai Customer:

DMCC6 Machine Center

Indian Customer:

IGV25 Insulating glass production line

USA Customer

PVC/Aluminum Window Machine line

PARKER Machine Catalogue:

Aluminum Window Door Making Machine Line :

Aluminum Window Cutting Saw Machine ;

Aluminum Window Welding Machine:

Aluminum Window Corner Cleaning machine:

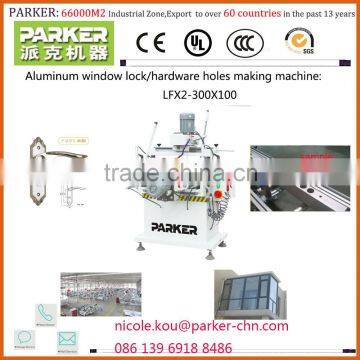

Aluminum Window water slots ,lock holes making machine ;
