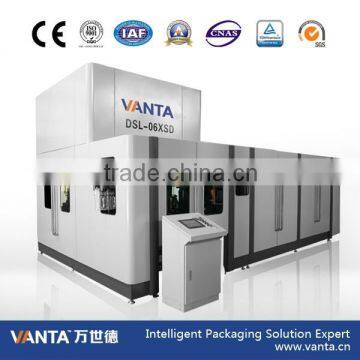

Rotary Low Speed Blow Molding Machine (06XSD)
- 15 Set / Sets per Month
- Huangpu
- T/T
You May Like
-
PET Bottle Blowing Machine Plastic Molding Machine 3 in 1 Machine (10XSD)
-
5 L Bottle Machine Rotary Blow Molding Machine Cheap Mono Block Mchine
-
Automatic Blow Molding Machine with CE Certificate (08XSD)
-
Rotrary Plastic Bottle Blow Molding Machine (06XST)
-
Cap Compression Molding Machine (36 Cavities, 50,000PCS/hour)
-
Cap Compression Molding Machine (24 Cavities, 22000PCS/hour)
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Guangdong, China | |
| Brand Name | VANTA | Model Number | DSL-06XSD | |
| Voltage | 380V | Power(W) | 150KW | |
| Dimension(L*W*H) | 2200*3400*3200 | Weight | 8T | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Description:
The DSL series of rotary blow molding machine is developed by Vanta engineer under the world's most advanced technology for bottle making. The PET blowing machien ensures high performances in making PET bottles by using high pressure air.
Thanks to high-tech components, minimized maintenance and operational costs and excellent quality/price ratio, the DSL series blowing machiner has already reached the leading level in the field of auto preform arrangement, heating and bottle stretching.
2. Equipment Datasheet
MODEL | DSL-06XSD | ||
PRODUCTION DATA | Mould cavities | N | 6 |
Max. capacity | ml | 2300 | |
Max. output for 500ml , bottle (*) | pcs/h | 10000 | |
Rate of finished product(*) | % | ≥99.5 | |
Host DIMENSIONS
| L * W * H | mm | 2200*3400*3200 |
| Total power installed | kW | 150 |
Medium power absorbed | kW | 90 | |
BLOW AIR | Nominal pressure | bar | 40 |
Air rate (**) | m3/min | 8 | |
humidity (without condensate) | % | 5 ~60 | |
Max. altitude(over sea) | m | 4000 | |
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise machine
3.8 Low cost of production
3.9 Low failure rate
