High quality storage metal rack,storage long span shelves,adjustable steel shelving

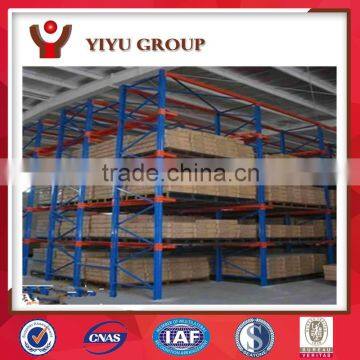

  Product name:Logistic Equipment Heavy Duty Storage Double Deep Pallet Rack

1) Dimension can be customized

Length:1200/1400/1900/2300/2500/2700/3200/3300mm

Width: 800/900/1000/1100/1200mm

Height: 1500/2000/2500/3500/4000/4500/5000/5500/6000/6500/7000/8000mm

2) Material :high grade Q235 cold rolled steel.

3) Vertical Upright specfication: 80*60,90*65,100*66,120*66mm.

4) Boxed Beam specification:  80*45,100*45,110*45,120*45,140*45,160*45mm.

5) Bearing Capacity: 1000~6000kgs or 2200~13200lbs.

6) Package: Brown carton/Air bubble pack/ PE stretch film.

7) Upright is formed by high-quality cold rolled steel with an omega shaped section and hole distance 50mm or 75mm.

8) Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.

9) Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.

10) Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.

11) Stable structure, large loading capacity, convenient sorting.

12) First level pallets can be placed on the floor.

Features:

1>The simplest, lowest cost, most popular racking system in the world.

2> Convenience to stock management.

3> Easy to store and pick due to direct access to all pallets.

4>Compatible with many handling equipment styles.

5>The height between levels can be adjusted easily by 50/70/76.2mm pitch interval.

6> Lower level pallets can be located on the floor for picking purposes.

7> Ideal for warehouses, which need to keep a wide variety of products.

8> Fully compatible with Dexion racking system, allowing you replace parts or add new bay based on the existing racking system.

9> Disadvantage: Low efficiency for utilization of space, storage density is low with only 35% floor space and only 25% cubic space used.

Delivery Detail: within 15~20 days after receving deposit

Payment Term: 30% by T/T in advance, the balance by T/T against the fax copy of B/L.

Production Capacity: 6000 sets per Month
