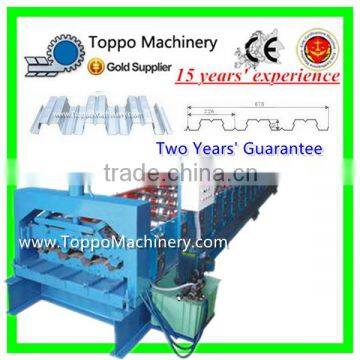

Automatic Steel Roof Deck Roller Machine

1. Professional

15 years' rich experience!

a.Specialized in Automatic Steel Roof Deck Roller Machine since 1998;

b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

5. TWO-Years warranty,  whole life service

Keep troubles far away from you!

Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

a. General

Model Number

YX51-226-678 Automatic Steel Roof Deck Roller Machine

Suitable Material

Galvanized steel sheet,Q235 or equivalent.

Material Thickness

0.8-1.5mm

Material Width

1000mm

Coverd Width

678mm

Wave Height

51mm

Dimension

16.8*1.35*1.6m(L*W*H)

Sheet Length

Any length as you want, It is controlled by PLC which can ensure the accuracy within ±1mm.

Cutting

Automatically pause and cut when it comes to the set length.

b. Components Detail

Roller

High grade 45# steel. Hard chrome plating, 0.05mm.

Main Frame

400# steel. More stable and no shaking.

Middle Plate

20mm

Forming Steps

20

Shaft

Φ85 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.

Cutting Blade

Cr12, hardness HRC60-62. Treating process: heat treatment- pane abrasion-wire electrode cutting.

c. Electric Components

Suitable Power

380V, 50 Hz, 3 phase or according to your need.

Screen

5.7 inch touch screen, easy to operate

PLC

Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantge of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Length Measurement

Omron, made in Japan. It features with high accuracy and stability
