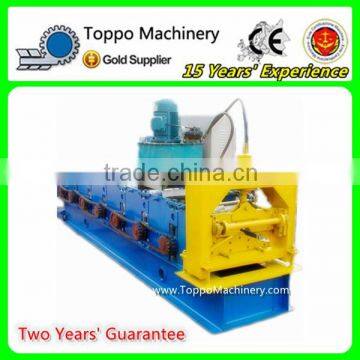

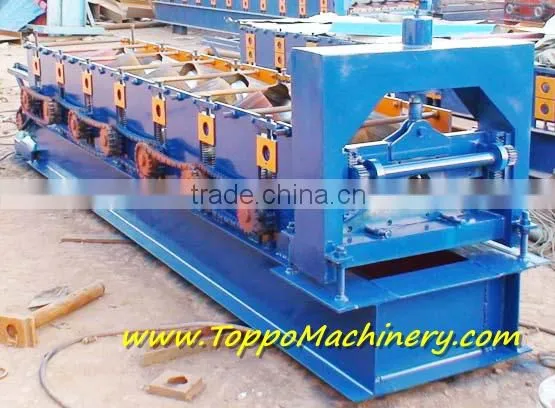

Glazed Aluminum Metal Roof Ridge Cap Roll Forming Machine

1. Professional

15 years' rich experience!

a.Specialized in Corrugated Aluminium Metal Roofing Sheet Roll Forming Machine since 1998;
b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

5. TWO-Years warranty,  whole life service

Keep troubles far away from you!

Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

a. General

Model Number

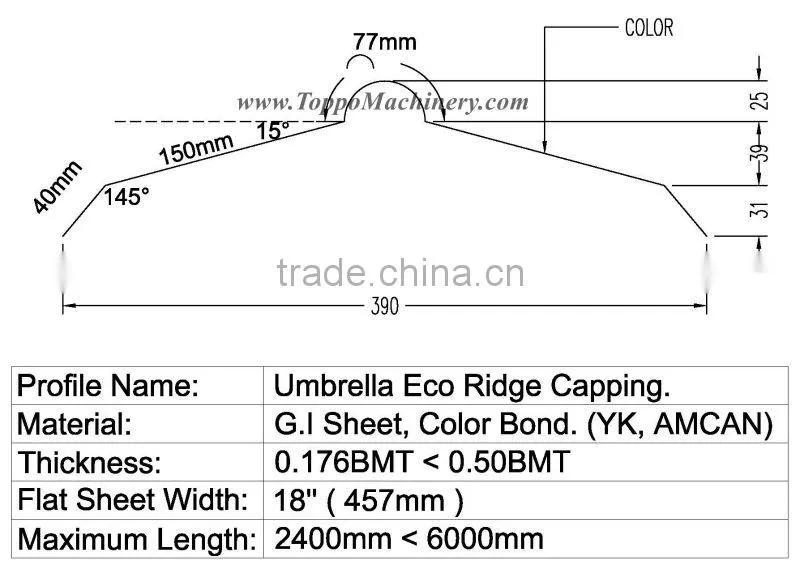

450 Glazed Aluminum Metal Roof Ridge Cap Roll Forming Machine

Suitable Material

Q235 or equivalent, Colored Steel plate or galvanized board

Material Thickness

0.3-0.6 mm

Dimension

about 6.4*0.9*1.51m(L*W*H)

Length of the Sheet

You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set length.

b. Components Details

Roller Material

High grade 45# steel. Hard chrome plating 0.05mm.

Diameter of the Shafts

Φ65mm

Main Frame

450# steel.More stable and no shaking.

Middle Plate

16mm. We use thicker plates to ensure stability.

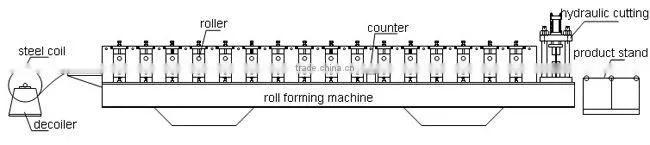

Forming Steps

14

Cutting Blade Material

Cr12, hardness HRC60-62.

Active Shaft Material

45# steel

c. Electric Components

Suitable Power

380V, 50 Hz, 3 phase or according to your need.

Hydraulic Station Power

3kw

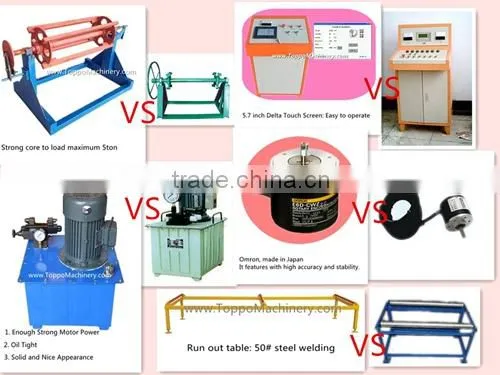

Screen

5.7 inch touch screen, easy to operate

PLC

Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Length Measurement Device

Omron, made in Japan. It features with high accuracy and stability

 Toppo Machinery Co., Ltd

 BotouCity, Hebei Province, China
