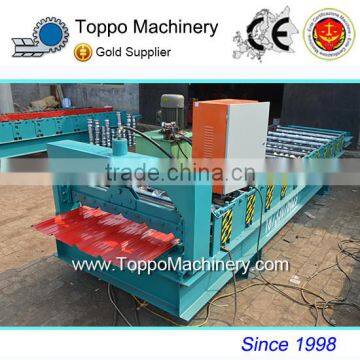

Professional Roofing Slab Forming Machine Manufacturer
- 100 Set / Sets per Month
- Tianjin Port
- T/T
You May Like
-
Automatic Steel Roofing Sheet Metal Folding Machine Manufacturer
-
Good Quality Metal Steel Frame Machine New Product
-
Professional Wall Plate Mould Machine New Products
-
High Quality 3d Wall Panel Machines China Machine
-
Latest Pbr Panel Machine China Machine
-
CE Certified Sheet Metal Roller for Metal Building
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 15-20 m/minute | Place of Origin | Hebei, China | |
| Brand Name | Toppo Machinery | Model Number | Trapezoidal Panel Machine | |
| Power(W) | 3 kw | Voltage | 380V, 3 phase, 50hz | |
| Dimension(L*W*H) | about 7.2*1.3*1.1 m | Weight | about 2.5-3.8 ton | |
| Certification | CE | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Professional Roofing Slab Forming Machine Manufacturer
1. What is the application for this Roofing Slab Forming Machine?
The steel panel produced by this machine is beautiful and durable. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
We can also make other profiles as you required.
2. What is the working flow for Roofing Slab Forming Machine, can you explain it for me?
decoiling-sheet feeding-roll forming-length measuring-stop and cutting-panel to product stand
3. What is technical details?
a. General | |
Model Number | Roofing Slab Forming Machine |
Suitable Material | HRB60-70, or equivalent |
Material Thickness | 0.2-0.6mm |
Sheet Length | Any length as you want, It is controlled by PLC which can ensure the accuracy within ±1mm. |
Cutting | Automatically stop and cut when it comes to the set length. |
b. Components Details
| |
Roller | High grade 45# steel. Hard chrome plating, 0.05mm. |
Main Frame | 350# steel. More stable and no shaking. |
Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
Shaft | Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning. high rigidity, hard to deform. |
Cutting Blade | Ture Cr12, hardness HRC60-62. Treating process: heat treatment- pane abrasion-wire electrode cutting. |
c. what kind of electric components do you use? | |
| |
Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
Screen | 7 inch touch screen. Big screen to ensure easy to operate |
PLC | Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement | Omron, made in Japan. It features with high accuracy and stability |
4. How will you send the machine to me, will it break on the way?
5. Sales Map
Since 1998, Toppo Machinery Co., Ltd has exported high quality Roofing Slab Forming Machine to more than 20 countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on.
6. Our Sevices
a. Our Roofing Slab Forming Machine (except wearing parts) come with TWO Year warranty. Within the two-year period, for any parts damaged due to quality problems, we offer the replacement parts to the client free of charge.
b. We offer technical support for the entire life of our machines.
c. We can send our technicians to install and train the workers in the clients' factories.
7. Who is Toppo Machinery?
Toppo Machinery Co., Ltd. is a professional manufacturer for roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine, tile roof machine, purline forming machine, floor decking machine and other associated equipments.
8. what makes us better than others?
1. Professional | 15 years' rich experience! a.Specialized in Roofing Slab Forming Machine since 1998; b.Keeping improving the quality. |
2. Low price | Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
3. Fully automatic, easy operation | a. Equiped with PLC : Ensuring high accuracy and easy operation. b. You just input the length of sheets, and how many piece you need, then the machine will start production according to your requirement. c.Steady Performance. |
4. OEM / ODM | Customers’design, color & logo are also accepted! Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality. |
5. TWO-Years warranty, whole life service. | Keep troubles far away from you! Within the TWO-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems . |
9. FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.What policy of your garentee?
A: Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .after two years,you need to buy by factory cost.
10. Contact US
If you have any questions for the Roofing Slab Forming Machine, send your Inquiry Details in the Below, Click "Send" Now!
Or contact me diffrect by email or chat.
| Toppo Machinery Co., Ltd |
| |
BotouCity, Hebei Province, China | |
| 0086-15631793989 | |
| ToppoMachinery | |
| www.YouT/ToppoMachinery |
