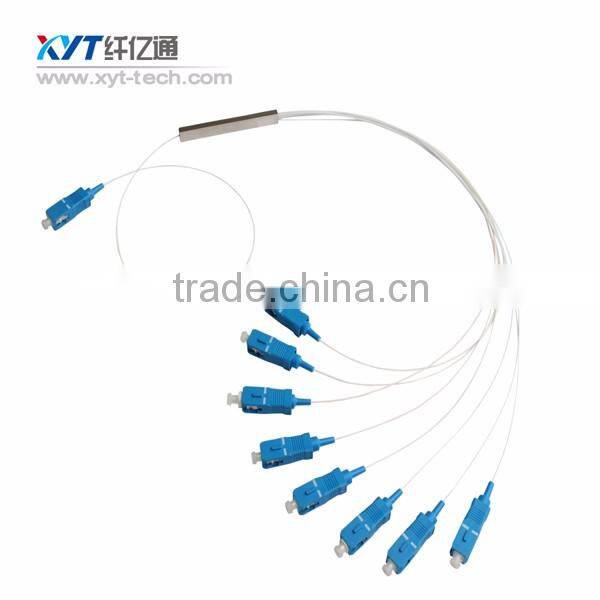

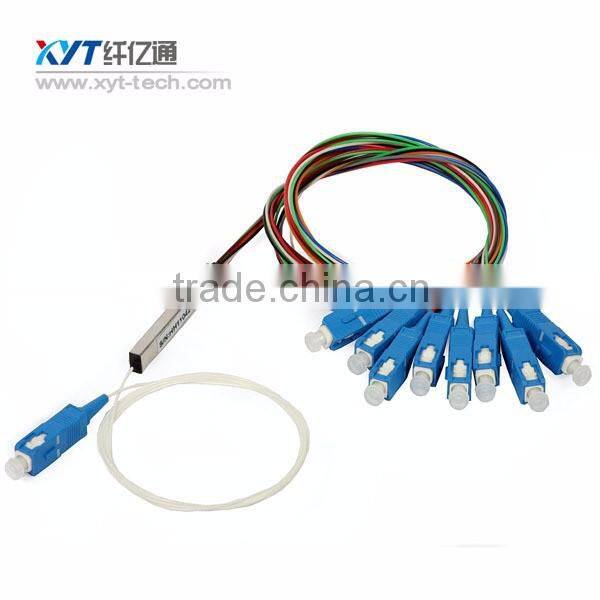

Direct selling 1x8 steel tube ftth plc splitter optical fiber splitter at low price

 Steel tube type plc splitter Specification

1)low IL&PDL

2)uniformity&high reliability
3)1260~1620nm wavelength
4) Steel Tube PLC  Splitter :1x2,1x4,1x8,1x16,1x32,1x64,2x2,2x4,2x8,2x32,2x64

Planar lightwave circuit PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelengthrange and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

 Steel tube type plc splitter Features:

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

Stability Telcordia GR-1221 and GR-1209



Steel tube type plc splitter Application:

Fiber to The Home (FTTH)

Passive optical networks (PON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment



Steel tube type plc splitter key features and the applications

Key Features	Applications
- Low IL Key Features	- FTTX (FTTP, FTTH, FTTN, FTTC)
- High reliability	- Local Area Networks (LAN)
- High channel counts	- Test Equipment
- Wide wavelength range	- CATV
- Large operating temperature range	- Analog/Digital Passive Optical Networks (PON)
- Excellent Environmental & Mechanical Stability



1×N Steel tube type plc splitter Specifications
Port Configuration	ch	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type		SMF-28e, G652, G655, G657 (or Customized)
Operating Wavelength		1260~1650
IL	dB	≤4.1	≤7.4	≤10.5	≤13.5	≤16.8	≤20.4	≤23.7
UL	dB	≤0.5	≤0.6	≤0.8	≤1.0	≤1.3	≤1.8	≤2.1
PDL	dB	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.4
RL	dB	≥55
Operating Temperature	°C	-40~+85
Storage Temperature	°C	-40~+85
Steel tube size	mm	40*4*4 50*7*4 60*12*4
