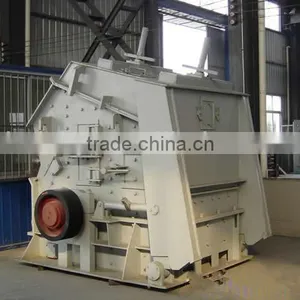

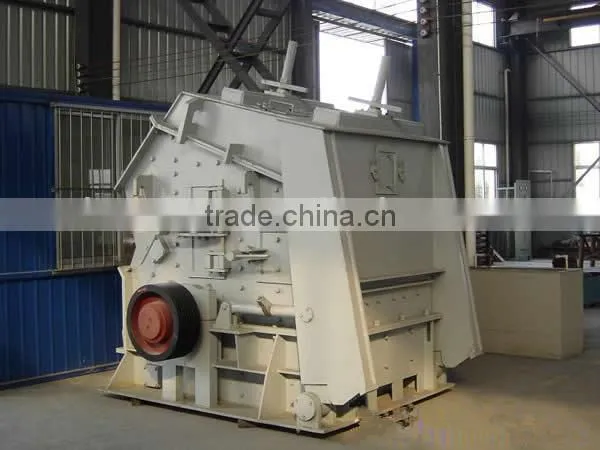

Construction Machinery Single Rotor Impact Crusher China Supplier

Specifications

1.Hot sale Single Rotor Impact Crusher
2.Large crushing ratio
3.Even granularity
4.Simple structure&easy maintenance
5.ISO

               Construction Machinery Single Rotor Impact Crusher China Supplier

1.Impact Crusher Usage and Application:

This Impact Crusher Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.

2.Impact Crusher Working Principle:

Large stone materials from the storage hopper are evenly and continuously fed into jaw crusher through vibrating feeder for primary crushing; the crushed materials are transported to cone crusher or impact crusher for fine crushing through belt conveyor; then the materials are transported to vibrating screen to be separated into different sizes. The end products with desired sizes will be transported to the final product pile and those with big sizes will return to the cone crusher or impact crusher for re-crushing. This forms closed and continuously automatic cycles. The plant can be equipped with dust removing facilities to protect environment according to customers' requests.

1.High efficiency and energy saving.

2.Unique structure, no key connection

3.The blow bar with high chrome, unique impact liner

4.The end products are cubic, without tension crack, good shape, the size of discharging granularity is adjustable and simply crushing circuit.

5.Easy maintenance, simple and reliable operation.

3.Impact crusher Technical Data:

Model	Spec of Rotor (mm)	Feed Opening Size (mm×mm)	Max Feed Size (mm)	Processing Capacity (t/h)	Motor Power (kw)	Weight (Excluding Motor) (t)	Overall Dimensions LXWXH( mm)
PF-1007	Φ1000×700	400×730	300	37-45	30-55	9.5	2400×1588×2660
PF-1010	Φ1000×1050	400×1080	350	50-80	55-75	12.2	2400×2250×2620
PF-1210	Φ1250×1050	400×1080	350	70-120	110-132	14.1	2690×2338×2890
PF-1214	Φ1250×1400	400×1430	350	130-180	132-160	18.6	2690×2688×2890
PF-1010V	Φ1000×1050	400×1080	300	50-80	55-75	13	2400×2250×2620
PF-1210V	Φ1250×1050	400×1080	350	70-120	110-132	14.9	2690×2338×2890
PF-1214V	Φ1250×1400	400×1430	350	130-180	132-160	19.2	2690×2688×2890
PF-1310V	Φ1300×1050	490×1170	350	70-120	110-160	13.5	2780×2478×2855
PF-1315V	Φ1320×1500	860×1520	350	150-220	180-220	20.5	3096×3273×2667
PF-1515V	Φ1500×1500	850×1580	350	220-280	280	29.5	3550×2835×3280
