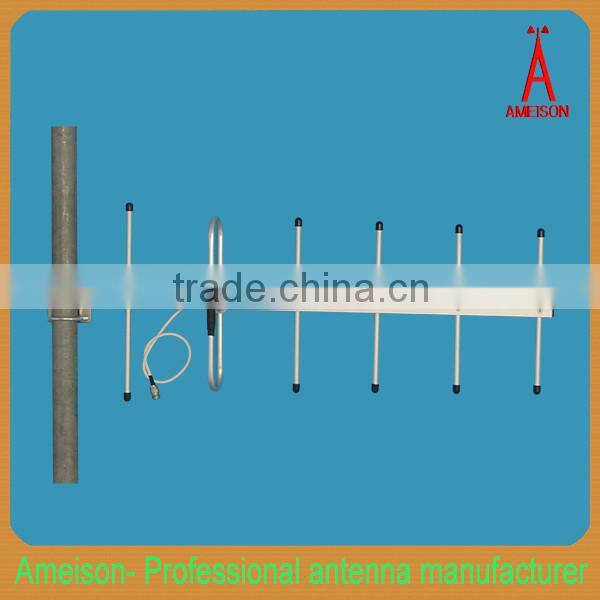

Antenna Manufacturer 230MHz 10dBi Directional Yagi VHF TV Antenna

Specifications

High gain;Aluminum alloy framework;Full day working;Optimized dimension;Vertical or Horizontal Mounting way;Factory Price.

Antenna Manufacturer 230MHz 10dBi Directional Yagi VHF TV Antenna

Feature:

High gain;

Extruded anodized Aluminum Alloy framework;

Full day working;

Optimized dimension;

Vertical or horizontal mounting way.

Application:

230MHz WLAN system, fixed wireless voice and data applications;

M2M communications (ATMs, financial data processing, telemetry etc);

Point-to-point, point-to-multipoint system, extending wireless data to weak signal areas (can extend connectivity range by factor of 3 or more);

Wireless bridging, client termination antenna,  enables rural and remote wireless service provision.



AMXW-230-10 Electrical Specifications
Frequency range(MHz)	230±10
Bandwidth(MHz)	20
Gain(dBi)	10
Element	6
Half-power beam width(°)	H:42 V:38
Front-to-back ratio(dB)	≥16
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Horizontal or Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N female or others
Mechanical Specifications
Dimensions(mm)	1440*680*80
Cable length(m)	0.3
Antenna weight(kg)	0.55
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Clamp	U-shape
Mounting hardware(mm)	Φ35~Φ50



This high gain wideband directional antenna covers all international cellular, mobile and wireless data bands including GSM 900/GSM1800/UMTS/LTE bands as well as extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3-2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems.

Ameison Factory Infos:

Established in 2009 Ameison manufactures a wide variety of OEM and ODM antennas including: LTE, WIMAX, Wi-Fi, 3G, DECT, WLAN, CDMA, GPRS,CMMB, DMB, GSM and DVB-T tyes etc.(our products arrange cover the frequency from 88 MHz to 5.8 GHz.)
