Home > Electrical & Electronics > Passive Components > Capacitor > 5.8G Lightning Arrester(lightning Protector)

5.8G Lightning Arrester(lightning Protector)

Name: 5.8G Lightning Arrester(lightning Protector)
Brand: AMEISON
SKU: 126222649
Availability: InStock

Shenzhen Ameison Communication Equipment Co., Ltd. Gold Verified Supplier

5Yrs

5.8G Lightning Arrester(lightning Protector) thumbnail-1

5.8G Lightning Arrester(lightning Protector) thumbnail-2

5.8G Lightning Arrester(lightning Protector) thumbnail-3

5.8G Lightning Arrester(lightning Protector) thumbnail-4

5.8G Lightning Arrester(lightning Protector) photo-1

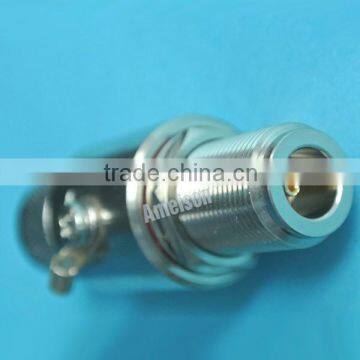

5.8G Lightning Arrester(lightning Protector) photo-2

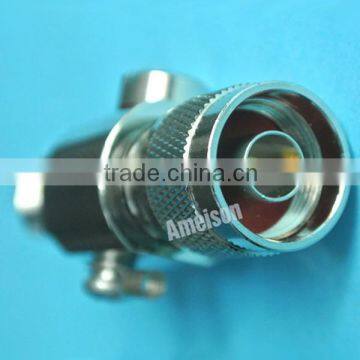

5.8G Lightning Arrester(lightning Protector) photo-3

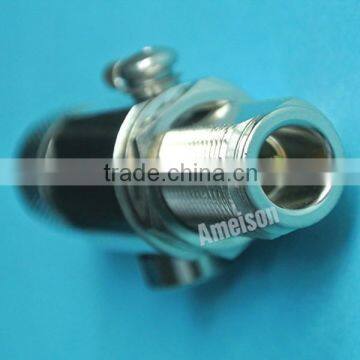

5.8G Lightning Arrester(lightning Protector) photo-4

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

AMEISON

Model Number:

AMXB-5800

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HongKong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name AMEISON

Model Number AMXB-5800

5.8G Lightning Arrester(lightning protector)

Model:AMXB-5800

Product name:N discharge tube surge arrester
Technical indicators Specification:

Impedance(Ω)		50
Contact resistance(mΩ)	Inner conductor(MΩ)	≤0.4
	Outer conductor(MΩ)	≤0.2
Insulation Resistance(MΩ)		≥1x104
AC(V)		2500V 1min No breakdown and no arcing phenomenon
Frequency Range(MHz)		DC~6000
V.S.W.R(MHz)		≤1.40
Insertion Loss(dB)		≤0.15
Rated Power(W)		200
Initial discharge voltage(V)		230
Peak discharge voltage(V)		1000
Peak discharge current(KA)		10
Weight(g)		180

Company Information

Shenzhen Ameison Communication Equipment Co.,Ltd is one of the professional antenna market who take the lead in China, and integrates the development, design, manufacture, sale and Service of radio communications antennas. which has been dedicated to the antenna development like GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on.
