Attention:
As Ameison have more than 600 models antennas in our factory, in order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.

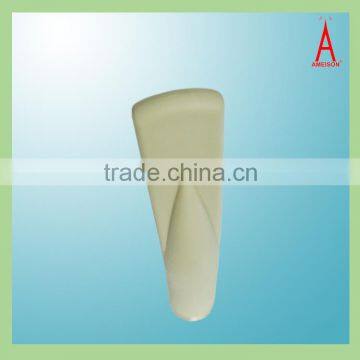

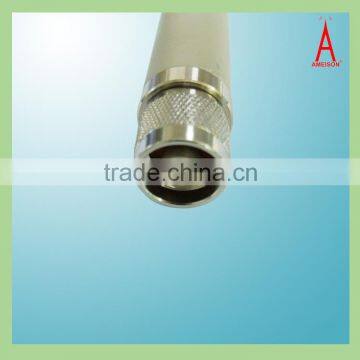

3dbi 2400 - 5850 MHz Terminal Antenna wifi repeater antenna 5.8ghz antenna wifi antenna 2.4ghz
AMXT-2458-3B
Feature:
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain, low standing wave, strong anti-interference ability
Application:
2.4 GHz /Wi-Fi /WLAN system
Point-to-multipoint system
5.8 GHz system
Point-to-multipoint system
AMXT-2458-3B Electrical Specifications | |
Frequency range(MHz) | 2400~2483 / 5725~5850 |
Bandwidth(MHz) | 83/125 |
Gain(dBi) | 3 |
Half-power beam width(°) | H:360 V:45 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical, Linear |
Maximum input power(W) | 100 |
Lightning protection | DC Ground |
Input connector type | N-Male(Female) or Requested |
Mechanical Specifications | |
Dimensions (mm) | Φ21.5*168 |
Antenna weight(kg) | 0.06 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Waterproof Standard | IP65/ IP67 |
Radome color | Black/White/Grey |
