2015!!! Home Guard Gsm Sms Alarm System Alarm and Security Systems With 120 Wireless Zones(E1)

HOT!!!   2015!!! 2015!!! home guard gsm sms alarm system  alarm and security systems  with 120 wireless zones(E1)

products introduction:

1,Quadband GSM module,widely used all over world.
2,2 Wired &120 wireless defense zones.
3,Time shown digital screen.
4,4 groups of timely arm/disarm.
5,6 groups phone numbers,6 groups SMS numbers.
6,10 seconds voice message recording support playback.
7,Different zones can dial pre-set telephone number.
8,Make remote control phone call to arm/disarm/monitor .
9,Keep recent 72 disarm/102 alarm recording.
10,1 way N/O signal output relay output.
11,Built-in rechargeable batter y, power cut-off send SMS alert.

Technical ParameterS

Power supply: AC=220V±10%

DC=12V (Built-in NI-HI) rechargeable battery

Standby Current: <60mA

Alarming Current: <450mA

GSM band: 850/ 900/ 1800/ 1900MHz

Wireless Frequency: 315/ 433/ 868MHz±0.5MHz

Wireless receiving sensitivity: 5mV/m

Anti-interference : 1V/m (Frequency range: 20-1000MHZ)

Working Temperature: 10°C~+40°C

Humidity: ≤90% ( no fog)

Wireless detectors: 120pcs

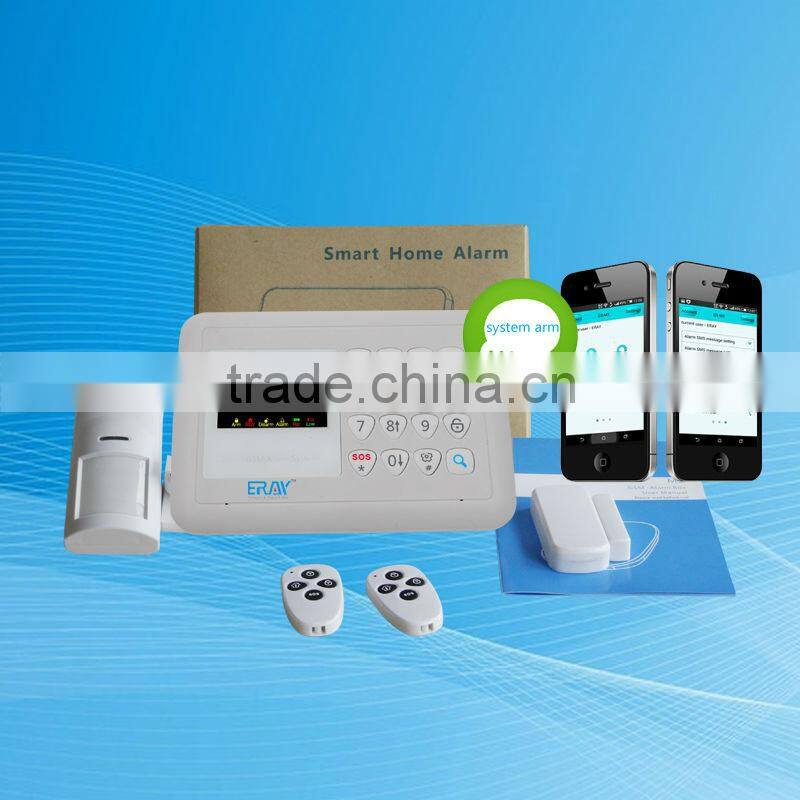

Components List

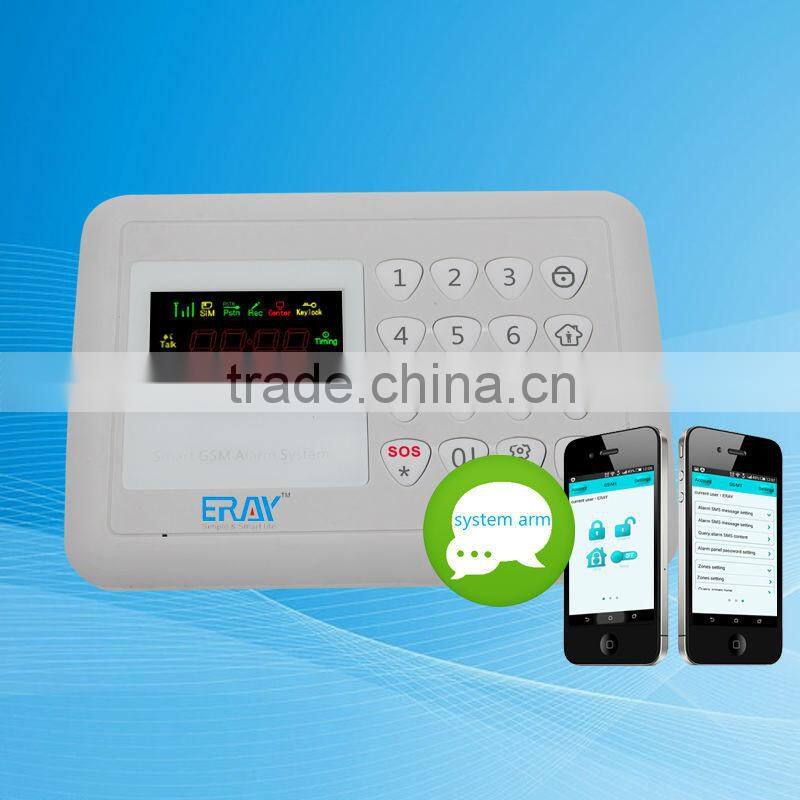

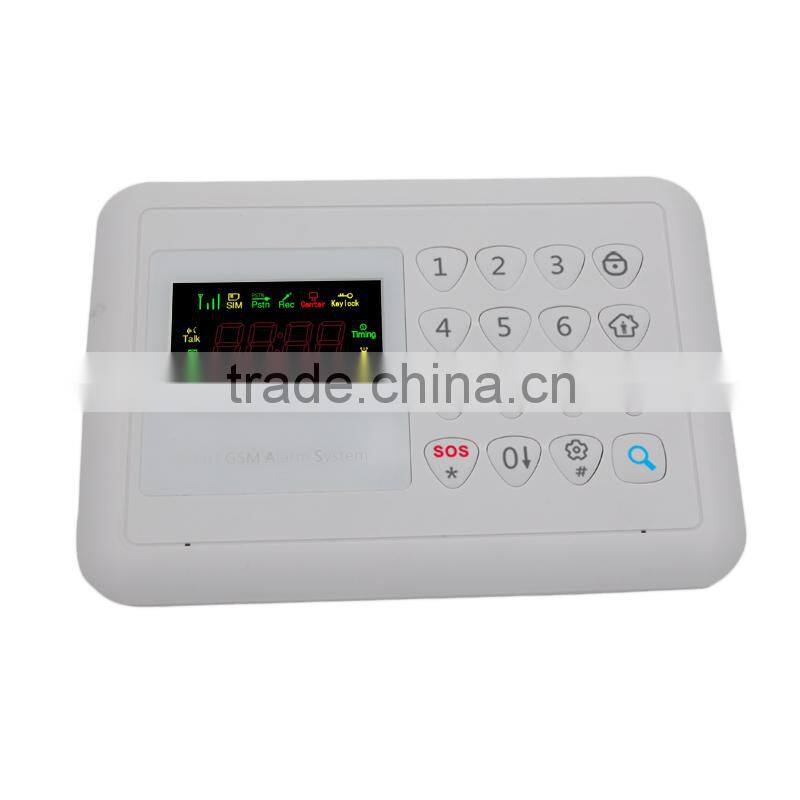

Main panel                1 pc,

Remote controller            2 pcs,

Siren                     1 pc,

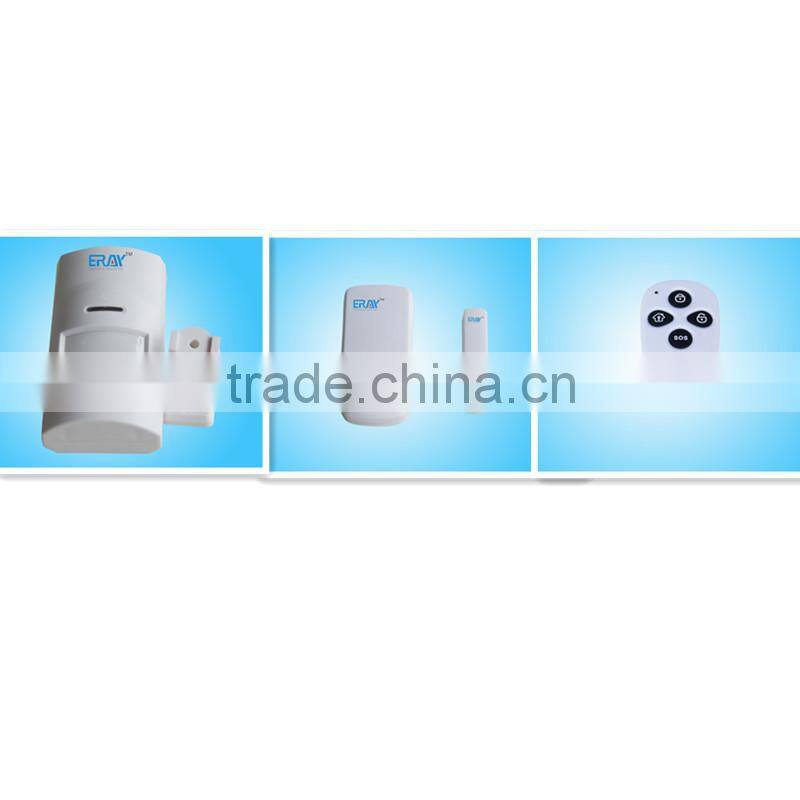

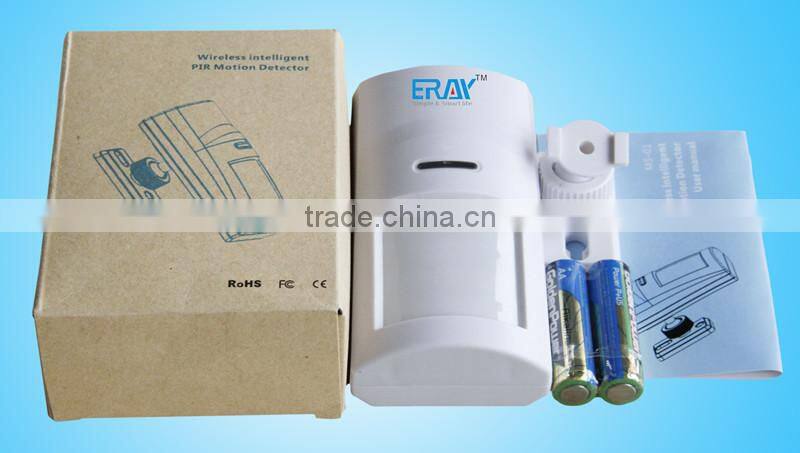

Wireless PIR sensor        1 pc,

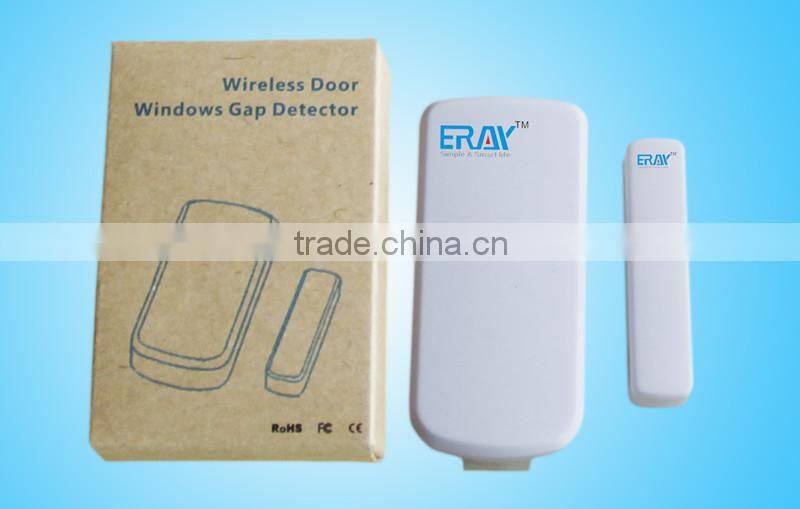

Wireless Door sensor        1 pc,

Power adapter (DC 12V/1.2A) 1 pc,

Back-up battery            1pc

User manual              1 pc.
