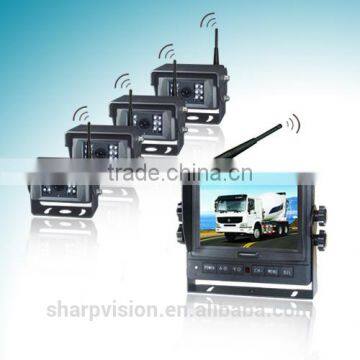

5.6 inch 2.4ghz wireless camera system

2.4GHz digital wireless  camera system :

Features of Monitor (DW-115D):

•  5.6 inch digital 2.4G wireless monitor
•  Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
•  Multi-languages of display available: English, French, Portuguese,Spanish, Russian, Dutch, German, Italian.
•  Operates from DC10~32V
•  One camera trigger line, auto switch to the triggered camera in standby mode
•  Automatic back-lights and light control
•  Can be used both in vehicle, shipment surveillance and security monitor in the open air
•  Easy installation and convenient use, with innovative functions

5.6 inch 2.4 GHz digital wireless system(DW-115D)

• LCD size:5.6 inch
• System format: NTSC/PAL
• Resolution: 640 x 3(RGB) x 480
• Brightness: 200cd/m²
• Contrast: 500: 1
• Viewing angle: up: 50°, down: 70°, left: 70°, right: 70°
• Aspect ratio: 4: 3
• operating frequency: 2400 -2483.5MHz
• transmitting distance:120M
• Recieving sensitivity: -78dBm
• Decompression form: MPEG4
• Emitting frequency:18dBm
• Transmitting speed: 12Mbps
• Spread spectrum: frequency hopping
• hopping frequency: 1200Hops/S
• delaying time: 200ms
• Operating temperature: -20 ~ +70°C  RH90%
• Storage temperature: -30 ~ +80 °C  RH90%
• Energy consumption: max. 8W
• Power supply: 10V-32V
• Video inputs: 1 camera’s video input: peak value:1Vp-p, impedance:75 Ohm
• Audio inputs: 1 camera’s audio input, peak value:1Vp-p, impedance:4.7k Ohm
• Loudspeaker: 1W/8Ω

 Features of Camera (DW-639):

•  2.4G digital wireless camera
•  Mirror / Normal image switch
•  With audio and nightvision
•  Power supply: 12V±0.1
•  With IR lights, clear image can be seen at night

2.4G digital wireless camera(DW-639D)


• Image device: 1/3" SHARP CCD
• TV system: PAL: 25f/s  NTSC: 30f/s
• Effective pixels: 512 x 582 pixels / 512 x 492 pixels
• Detection area: 4.9 mm x 3.7mm
• Scan system: 2:1 Interlace
• Sync system: Internal
• Resolution: 420 TV Lines
• Minimum ilumination: 0.1 Lux (day), 0 Lux (with IR)
• Microphone: YES
• Video output: 1.0 vp-p, 75 Ohm
• Gama consumption:0.45
• AGC: auto
• S/N rate: Better than 48 dB
• White balance: auto
• Electronic shutter: 1/50(PAL)/1/60(NTSC)~1/100,000 Seconds
• Light compensation: auto
• Current consumption: maximun 400mA
• Power supply: DC 12 V
• Operating frequency: 2400 -2483.5MHz
• transmitting distance:120M
• Recieving sensitivity: -78dBm
• Decompression form: MPEG4
• Emitting frequency:18dBm
• Transmitting speed: 12Mbps
• Spread spectrum: frequency hopping
• hopping frequency: 1200Hops/S
• delaying time: 200ms
• Operating temperature: -20 ~ +60 °C  RH90%
• Storage temperature: -30 ~ +80 °C  RH90%
