7" Digital Car Rear View System With Touch Button

7" Digital Car Rear View System With Touch Button photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Reverse Camera
Voltage:
DC 12V
Power:
10V
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Type Reverse Camera
Voltage DC 12V
Power 10V
Car Make Vehicle
Place of Origin Guangdong, China
Brand Name OEM
Model Number MO-121D, CW-087,CS-401

7" Digital car rear view system with touch button

7" Digital rear view sytem Features:
7 Inch TFT LCD color monitor with digital screen
Automatic backlighting for buttons
Control the monitor with finger tips on the touch button system
TFT LCD monitor with wide view angle and high resolution display.
 Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
 Multi-languages of display available: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian.
Mirror and normal image switch available
Full-function remote controller
 Multiple video formats available: PAL /AUTO/NTSC
 13-Pin: 3 cameras inputs.
22-Pin: 4 cameras inputs, 1 video output and 1 audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Built-in speaker

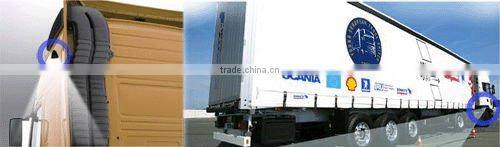

Automatically switches to back-up, left or right side camera views.



7" Digital car rear view system with touch button

1Heat discharge
2Mounting bracket installation
3Connection cable





7" TFT- LCD color monitor with digital screen - MO-121D:
Product: 7" TFT- LCD color monitor with digital screen
Audio output: 1W.
Loudspeaker: one 15x24mm round loudspeaker.
Power supply: Automobile storage battery (10-32V).
Power consumption: about 6W .
Outer dimension: 194.6mm (W) × 128mm (H) × 39.3mm (T)
Dot pitch: 0.192 (H) × 0.1805 (V).
Resolution: 800×3 (RGB) × 480.
Contrast: 500:1.
Brightness: 400cd/m².
Viewing angle: U: 50° / D: 60°, R/L: 70°/70°.
Operating temperature: -20~+70ºC,RH90%.
Storage temperature: -30~+80ºC,RH90%.

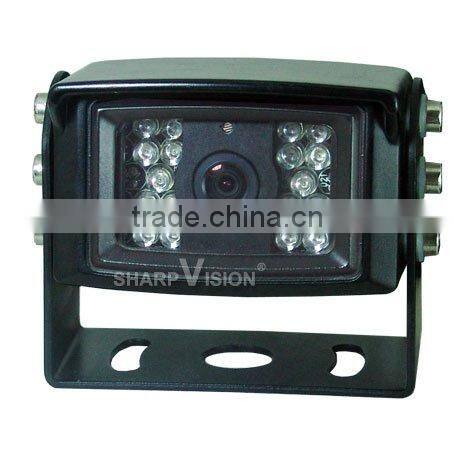

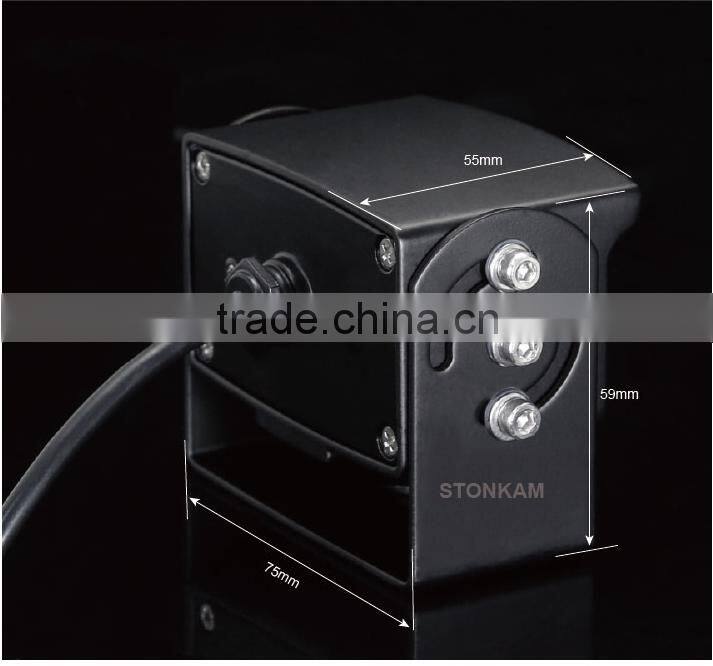

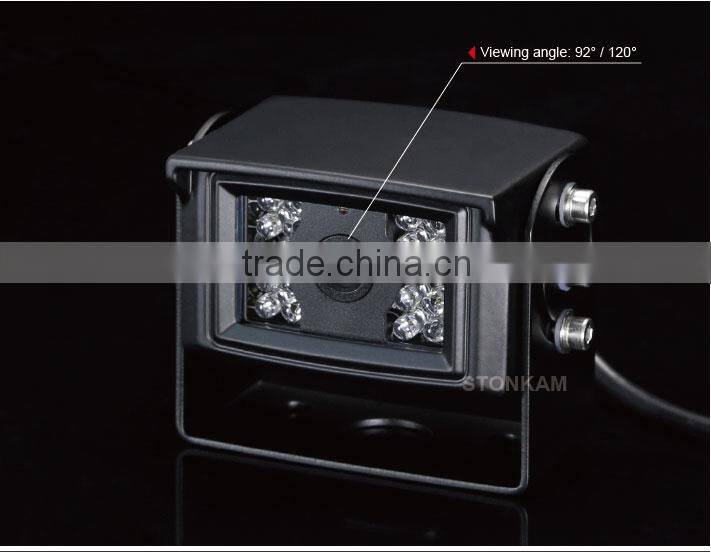

Camera Features(CW-087):
Waterproof and weather resistant housing for outdoor use
Night vision available,  day/ night sensor for automatic adjustment
IR distance: 15m
Infrared LED light: 18

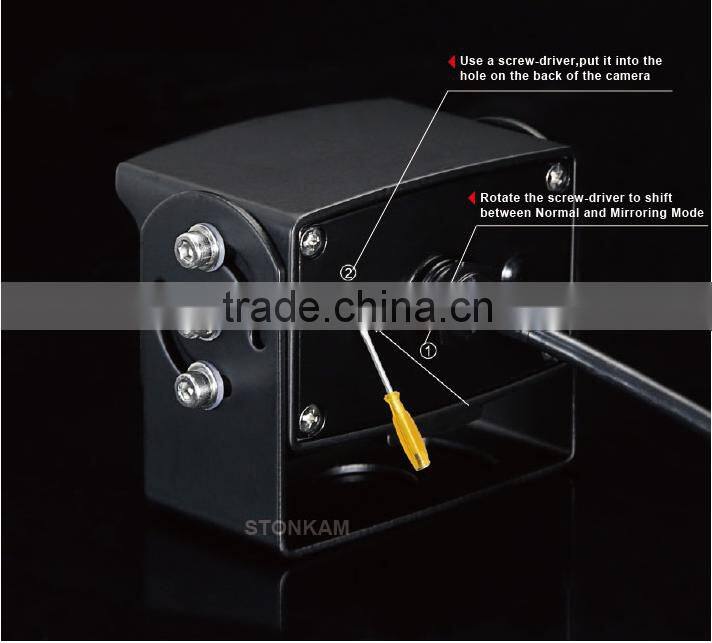

Mirror/ Normal image switch (depending on the chips)
Distance label selectable to be open or closed

7" Digital car rear view system with touch button

7" Digital car rear view system with touch button7" Digital car rear view system with touch button7" Digital car rear view system with touch button

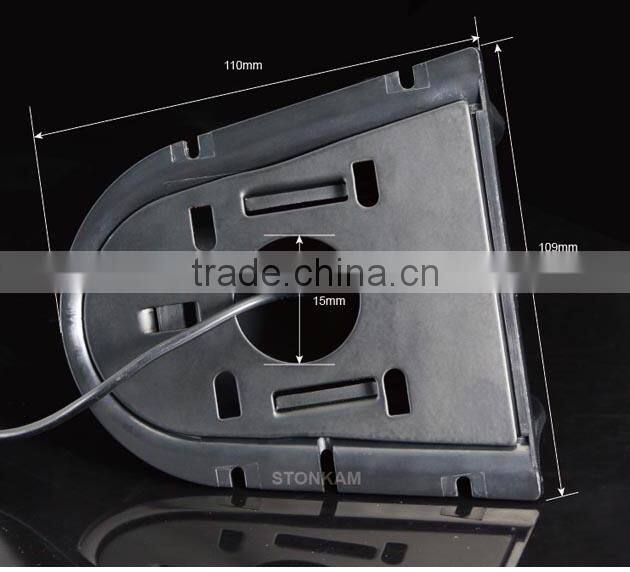

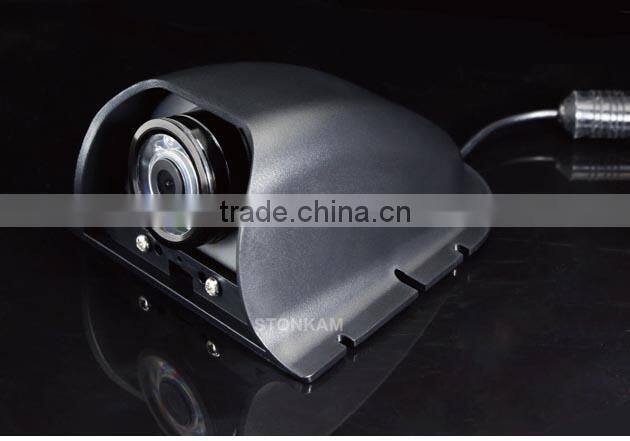

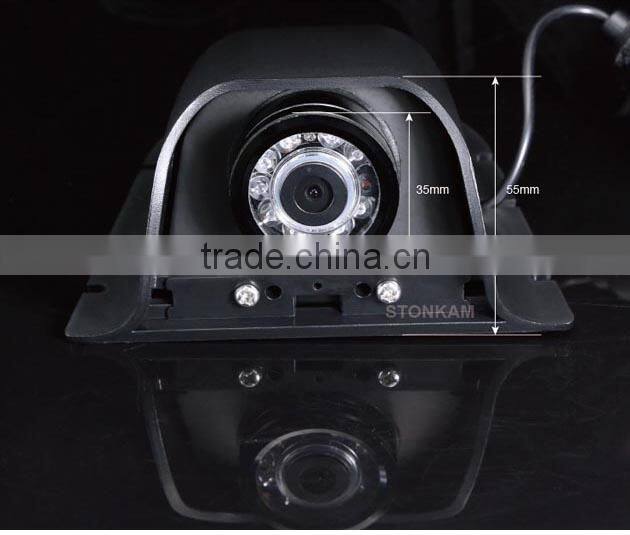

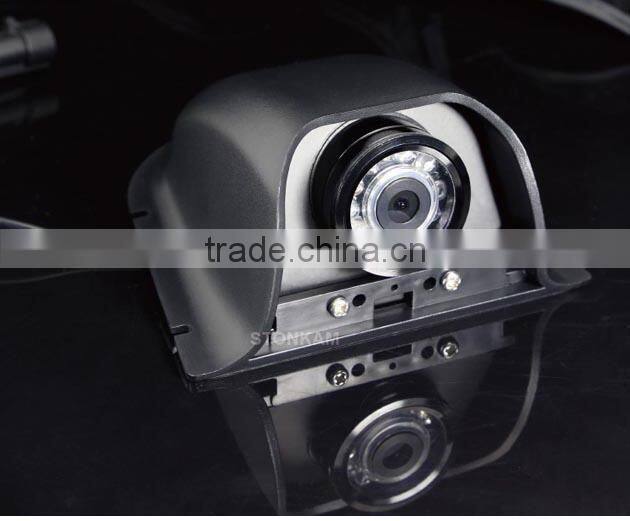

Camera Features(CS-401):
Waterproof and weather-resistant housing for outdoor use
Night vision available
IR distance: 8m
Day / Night sensor for automatic adjustment

7" Digital car rear view system with touch button7" Digital car rear view system with touch button7" Digital car rear view system with touch button7" Digital car rear view system with touch button

7" Digital car rear view system with touch button



7" Digital car rear view system with touch button
