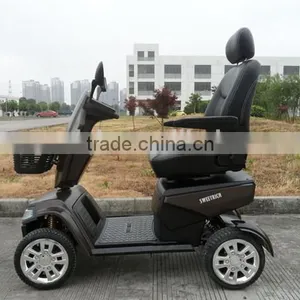

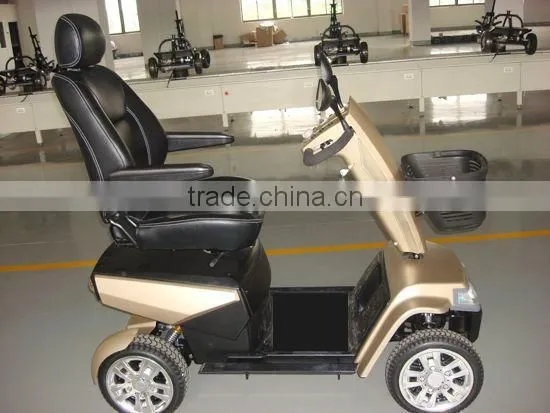

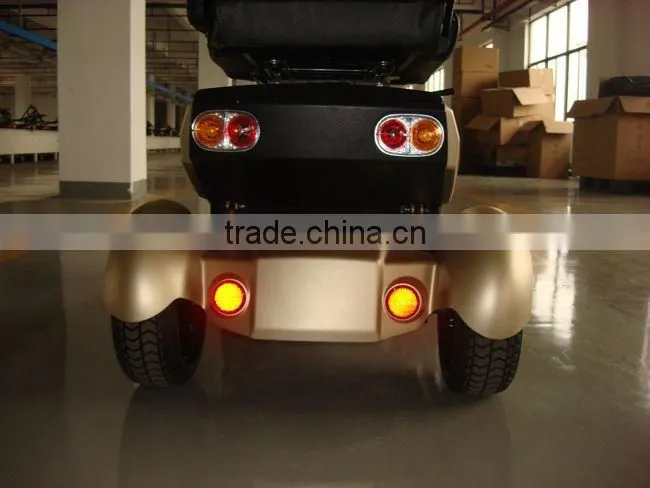

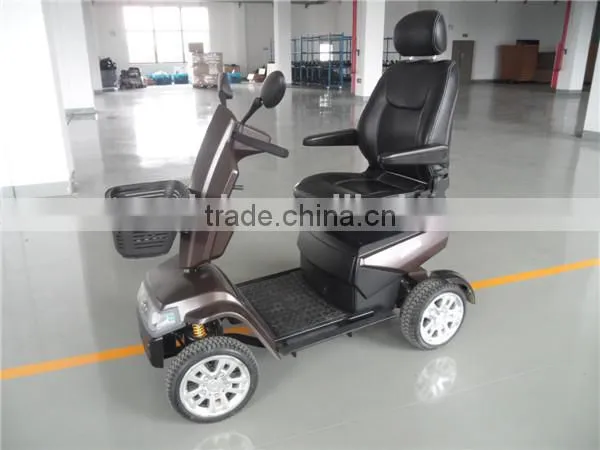

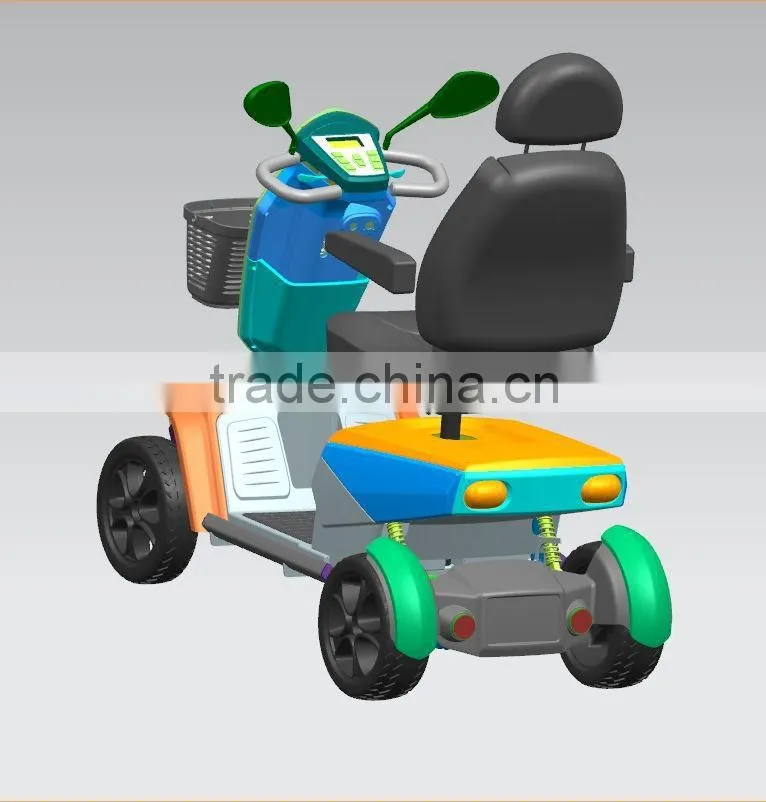

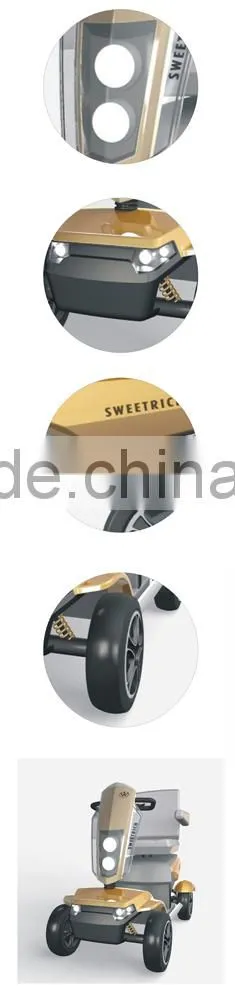

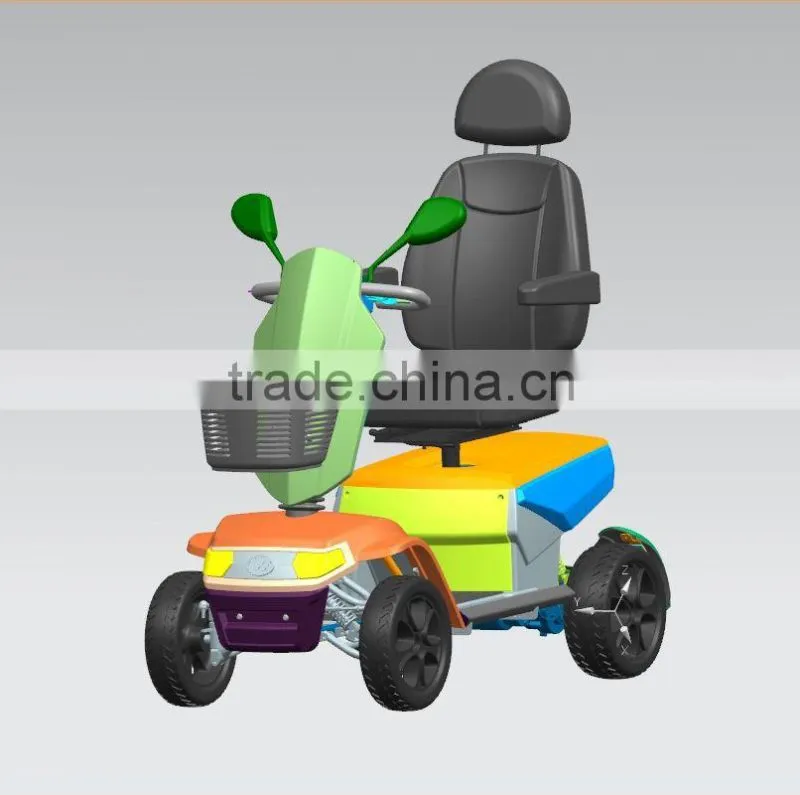

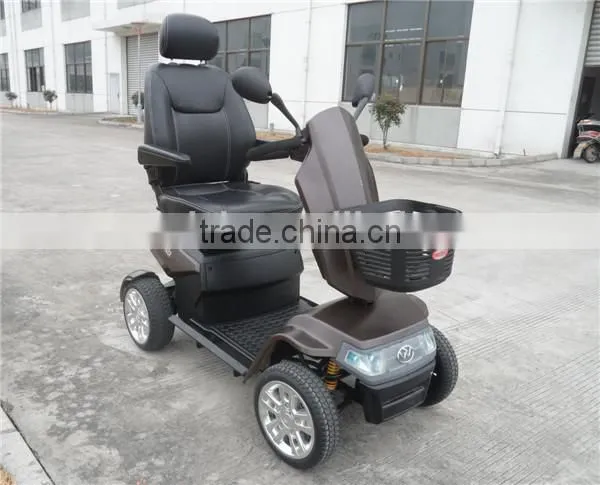

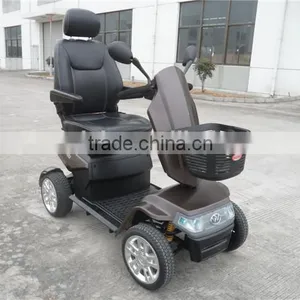

Large size 13" wheel mobility scooter for outdoor use

Name: Large size 13" wheel mobility scooter for outdoor use
Brand: SWEETRICH
Availability: InStock

FOB Price

USD $1,250 - $1,600 / Set

10 Sets(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Dimensions
Overall Length	1520mm
Overall Height	1370mm
Overall Width	730mm
Weights
Total weight including batteries	125kg
Total weight excluding batteries	80kg
Weight of the frame with seat	65kg
Weight of the frame no seat	45kg
Maximum Loads
Max.user's weight	150-200kg
Max.load in the front basket	10kg
Max.loading persons	1
Driving Features
Max.speed forward	15Km/h
Min.speed forward	6Km/h
Reverse speed	4Km/h
Turning radius	220cm
Ground clearance	11cm
Max.cross obstacle height	8cm
Max.driving slope	15 degree
Max.driving range	40km
(Range depends on the circumstances during use,it can be less when hills,wind or loose surface such as gravel or sand.Range can also be vary under theuser's weight)
Driving System and Tires
Drive system	rear wheel with gear box
Motor	24V/800W
Motor controller	24V/140A
Brake system	eletro-magnetic parking brade Tires
PU tire size	355x90
Tire size(inflatable)	355x90
Tube size	10
Tire pressure	2.3
Batteries and Charger
Batteries	lead-acid 12V/50Ah
Battery charger	120-230V/24V/5A
Max.charger current	5A
Charging time to 80% charge	8H
Charging time to full charge	10H
Additional Datas
Seat width	500mm
Backrest height	350mm
Seat depth	30mm
Armrest height from seat	160mm
Seat height from scooter platform	400mm
Optional Accessories
Seat belt for additional stability
External charger adapter for charging batteries not mounted to the scooter
