MFSR65 Roots Blower

Specifications

MFSR series blower is a self-developed product of Zhangqiu Mingfeng Machinery Factory.All accessories are factory machine independent production, and imports of advanced digital processing equipment to ensure high-precision equipment. Energy efficient, high precision, low noise, long life, compact structure, small size, light weight, easy to use, products widely used all over the petrochemical, building materials, electricity, metallurgy, fertilizer, mining, port, textile, food, paper , Aquaculture and sewage treatment, environmental protection industry and many other areas, mostly used for transporting air, can also be used to transport gas, hydrogen, acetylene, carbon dioxide and other flammable, explosive and corrosive gases.

Please notice

This product can not be used for corrosive gases, if you need to transport a corrosive gas with a slight, please tell us, we will provide you with special processing!

MFSR Roots blower key Features

1.Low noise: using the advanced spiral back into the exhaust port and internal technology to effectively delayed the return of the body high-pressure gas shocks, so a small air blower vibration and noise significantly reduced.

2.High efficiency: impeller adopted advanced composite curve, meshing more reasonable and improve the efficiency of the air blower.

3.Oilless: sealing a reasonable structure, oil and gas can’t enter the chassis, so the output air clean and grease free.

4.Long work life: usimg high-precision, hardened gears,  enabling the machine to further improve life expectancy, and noise reduction.

5.CAD/CAM technology: the impeller rotor, casing, wall panel and other key components to realize the digital processing, improved product quality and production efficiency.
6.Standardization: Blower serialization and standardization of specifications.

7.High adaptability: pressure changes in the work load with the system change, with self-adaptive.

8.More stable: has a mandatory hard aspirated exhaust characteristic, that is, when the pressure changes, the flow rate changed little.

9.Good appearance:The machine has been optimized design, beautiful shape , compact structure.

Standard accessories

Common base

V-belt cover

Motor pulley, blower belt pulley, V-belts

suction silencer (with air filter)

Decompression valve, check valve

Lubricating oil

pressure gauge

Anchor bolt

MFSR-65Series Blower performance parameters Table

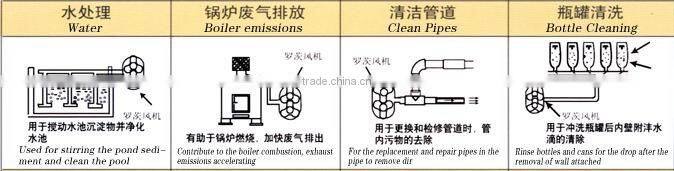

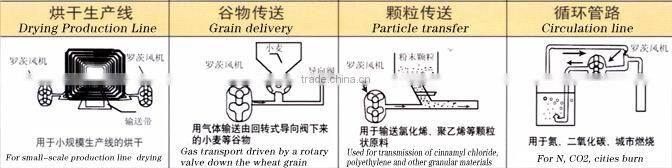

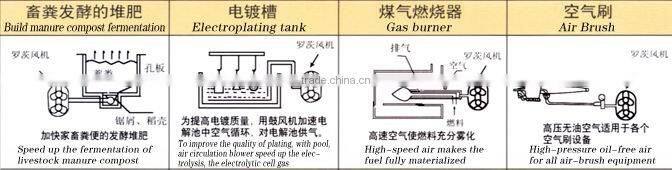

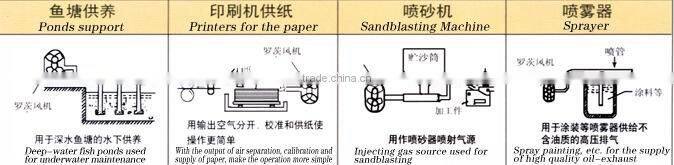

MFSR Blower use examples

Company profile

Zhangqiu Mingfeng Machinery Manufacture Co., Ltd. was founded in 1900 and is a professional manufacturer of Roots blowers and Roots vacuum pumps.

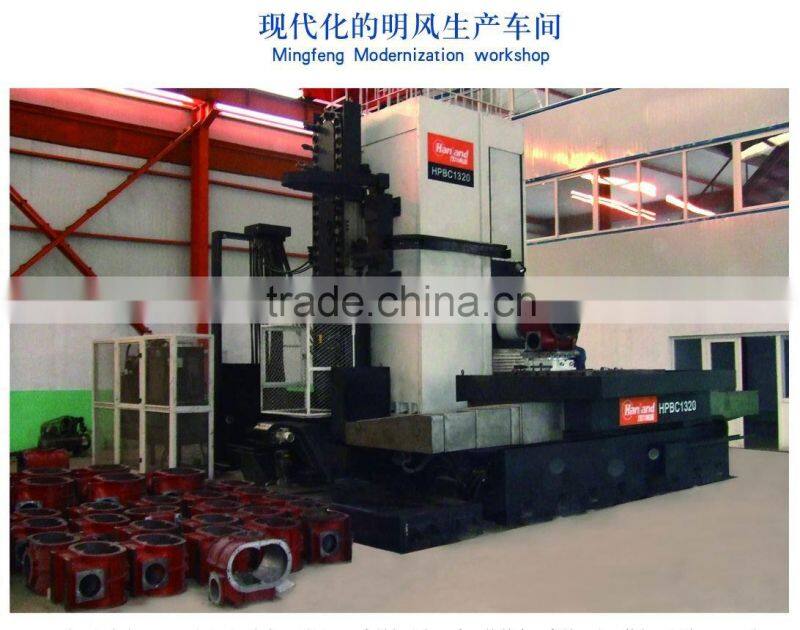

Our company has a number of large plant machinery production equipment and professional R & D team to achieve the product's digital production. Our products passed ISO9001:2000 certification, after years of research and effort, our company has a leading position in the industry.

We will make the greatest efforts to provide you with satisfactory products.

We sincerely look forward to your cooperation.
