2 tons Semi Pallet Stacker
- 1000 Set / Sets per Month
- Shanghai
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Lonking | Model Number | CDD20Y | |
| Type | Powered Pallet Truck | Power Souce | AC Motor | |
| Rated Loading Capacity | 2000kg | Max. Lifting Height | 3500mm | |
| Min. Lifting Height | 90mm | Fork Length | 825mm | |
| Fork Width | 170mm | Overall Dimensions | 900x695x1220mm |
Product Description
Specifications
2 tons Semi Pallet StackerLow center of gravity design,A unique steering mechanism,Low-voltage protection system,AC motor

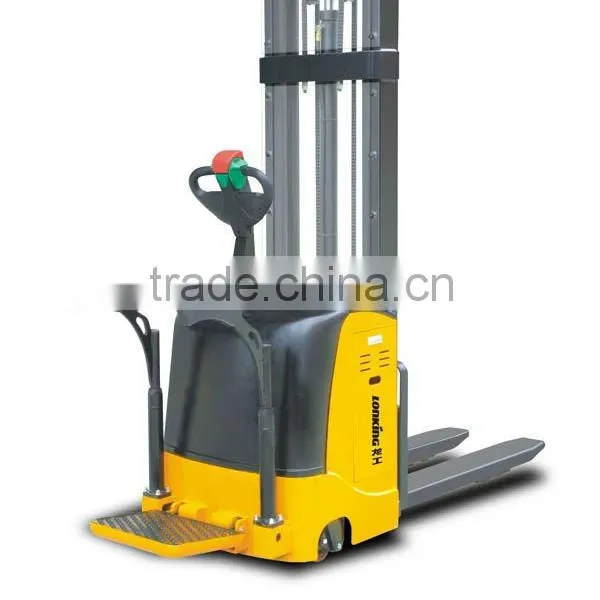

2 tons Semi Pallet Stacker
CDD20Y Stacker
Features:
Low center of gravity design, stability, good
A unique steering mechanism, the operation more flexible, stable and reliable
Low-voltage protection system, extending battery life
German imports of imports of used motor gantry
AC motor, no need to replace the carbon brush, has a good starting performance of the ramp
Side door and electric cap can be completely opened up, the battery can be pulled out from the side, enabling the
exchange and maintenance of battery
Features | 1.2 | Manufacturer's type designation |
| CDD10Y | CDD15Y | CDD20Y |
| 1.3 | Drive:electric(battery or mains),diesel petrol,fuel gas |
| battery | battery | battery |
| 1.4 | Operator type:hand,pedestrian,standing,seated,order-picker |
| standing | standing | standing |
| 1.5 | Load capacity/rated load | Q(kg) | 1000 | 1500 | 2000 |
| 1.6 | Load center distance | c(mm) | 500 | 500 | 500 |
| 1.8 | Load distance,center of drive axle to fork | x(mm) | 740 | 740 | 740 |
| 1.9 | Wheelbase | Y(mm) | 1340 | 1340 | 1340 |
Weight | 2.1 | Service weight (with battery) | kg | 880/900/912/920 | 930/960/978/990 | 940/970/988/1000 |
| 2.2 | Axle loading,laden front/rear | kg | 923/977 | 1196/1254 | 1444/1526 |
| 2.3 | Axle loading,unladen front/rear | kg | 690/210 | 737/223 | 744/226 |
Wheel Chassis | 3.1 | Tyre:solid rubber,superplastic,pneumatic,polyurethane |
| polyurethane | polyurethane | polyurethane |
| 3.2 | Tyre size,front |
| φ250×80 | φ250×80 | φ250×80 |
| 3.3 | Tyre size rear |
| φ80×70 | φ80×70 | φ80×70 |
| 3.4 | Additional wheels(dimensions) |
| φ150×60 | φ150×60 | φ150×60 |
| 3.5 | Wheels,number front rear(x=driven wheels) |
| 1x+2/4 | 1x+2/4 | 1x+2/4 |
