Home > Products > Open frame monitor > Industrial grade 22inch embedded touch screen monitor for kiosk machine

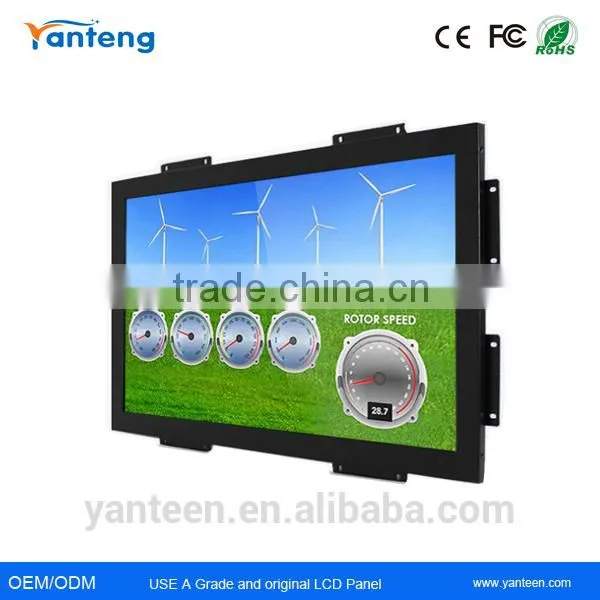

Industrial grade 22inch embedded touch screen monitor for kiosk machine
- 100000 Unit / Units per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Wide screen 22inch industrial touchscreen monitor for automation equipment
-
1680x1050 resolution 22inch industrial grade lcd monitor with capacitve touchscreen
-
Embedded 22inch open frame display with resistive touchscreen
-
Wide screen 22inch resistive touchscreen open frame lcd monitor
-
Industrial grade 22inch capacitive touchscreen lcd open frame monitor
-
Wide screen 19inch open frame touchscreen monitor with resistive touchscreen
Product Details
Products Status | Stock | Application | Other, Industrial | |
Screen Size | Other, 22" | Response Time | 5ms | |
Brightness | 400cd/m | Interface Type | D-Sub, DVI | |
Contrast Ratio | 1000:1 | Resolution | 1680 x 1050 | |
Widescreen | No | Panel Type | TFT | |
Pixel Pitch | 0.283mm | Brand Name | OEM | |
Model Number | OPI-2201 | Place of Origin | Guangdong, China |
Product Description
Industrial grade 22inch embedded touch screen monitor for kiosk machine
Feature:
Industrial grade LED panel
Black and white Metal casing option
Resistive /capacitive touchscreen option
VGA/DVI/USBinterface,HDMI option
Can work in harsh environments
Embedded/panel mount/card buckle/VESA holes installation
Effective prevention of external magnetic interference
Multi-language,Support Windows/Linux OS
Specification:
Model number | OPI-2201 | |
LCD panel | Panel size | 22inch |
Resolution | 1680×1050/60HZ | |
Aspect ratio | 16:10 | |
Panel | LED backlight | |
Brightness | 400cd/m2(1000cd/m2 option) | |
Contrast ratio | 1000:1 | |
Display color | 16.7M | |
View angle | H170; V160 | |
Pixel pitch | 0.283mm | |
Response time | 5ms | |
Life | 50000h | |
Touchscreen | Touchscreen | 5-wire resistive touchscreen (Capacitive touchscreen option) |
Touch number | >3500 million | |
Touch way | Pressure sensing | |
Induction strength | 45g-250g | |
touchscreen interface | USB intergace(RS232 interface option) | |
Other | Power supply | AC 100-240V, 50-60Hz, DC12V |
Power Consumption | <40W | |
Work temperature | -10℃-60℃ | |
Language | Multi-language | |
Size | 552.8mm×381.8mm×56mm | |
Casing | Metal casing | |
Color | Black and white option | |
Interface | VGA×1,DVI×1,USBx1(for touchscreen ) | |
HDMI interface option | ||
Installation | Embedded/Wall-mounted/desktop | |
Accessories | Manual, warranty card, power cord, |
Applications:
1.Embedded into all kinds of equipment as display device
2.Telecom, network engine room host monitor
3.Car display (subway, car, etc.) advertising machine
4.Military standard monitor,Reinforcement level display
5.Industrial machinery, numerical control equipment, engineering machinery,
6.Train, subway, hospitals, government agencies, port monitoring and display
7.4S auto shop, product display, automatic vending machine, courier easy box
8.Self registration, bank line access number, terminal self - help machine,
9. Medical equipment,Terminal inquiry machine, automation equipment
Shipping and Package:
Gift&neutral box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,
Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Yan Teng ?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
