Flexible Kapton Polyimide Film Heater For 3D Printer

Topright Industrial Technology Yancheng Co., Ltd.
Flexible Kapton Polyimide Film Heater For 3D Printer thumbnail-1
Flexible Kapton Polyimide Film Heater For 3D Printer thumbnail-2
Flexible Kapton Polyimide Film Heater For 3D Printer thumbnail-3
Flexible Kapton Polyimide Film Heater For 3D Printer thumbnail-4
Flexible Kapton Polyimide Film Heater For 3D Printer thumbnail-5
Flexible Kapton Polyimide Film Heater For 3D Printer thumbnail-6
Flexible Kapton Polyimide Film Heater For 3D Printer photo-1

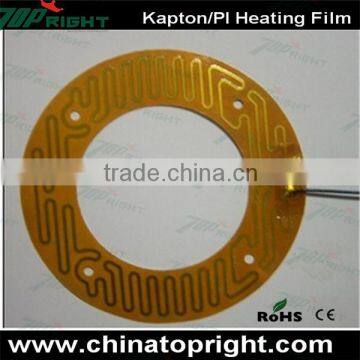

Flexible Kapton Polyimide Film Heater For 3D Printer photo-2

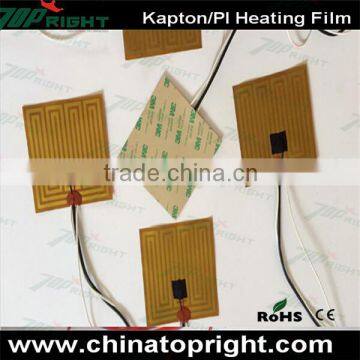

Flexible Kapton Polyimide Film Heater For 3D Printer photo-3

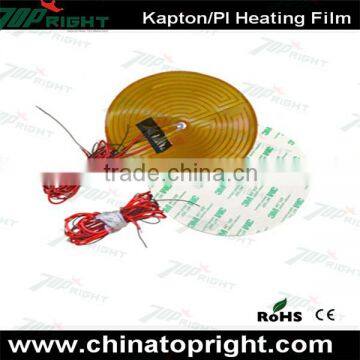

Flexible Kapton Polyimide Film Heater For 3D Printer photo-4

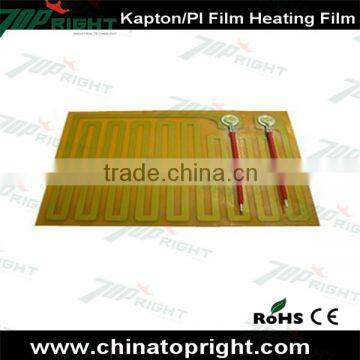

Flexible Kapton Polyimide Film Heater For 3D Printer photo-5

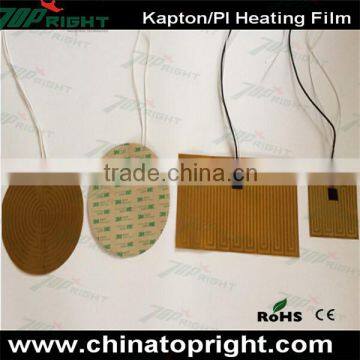

Flexible Kapton Polyimide Film Heater For 3D Printer photo-6
US$ 0.15 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, resistance
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, resistance
Power Source Electric
Place of Origin Jiangsu, China
Brand Name Topright, Topright
Model Number TRKP2016081810
Dimension(L*W*H) 4cm*4cm--2000cm*2000cm
Weight Final Dimension
Voltage 12-380V(Customized), 12-400V, 12-400v
Power(W) 10w-1000w
Certification CE ROHS
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

 Quick Details:

1) Kapton / polyimide  heater is a variety of shapes, sizes, and wattages
2) Working temperature: -200c - 200c
3) Flexible kapton heater



Flexible Kapton Polyimide Film Heater For 3D Printer



Product Description

 Polymide (Kapton) Heater Description:

Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.

Polyimide  is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.

Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer  requirement.

Specification of Polyimide (kapton) Heaters:

NO.

Description

Parameter

1.

Certification

CE and Rohs

2.

Voltage range

1.5v~400v

3.

Power density range

0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2)

4.

Using temperature range

-60~200°C(-140~392°F)

5.

Width range

10mm~500mm(0.39"~19.68")

6.

Length range

10mm~1800mm(0.39"~70.86")

7.

Thickness range

Standard:0.126~0.266mm(0.005"~0.01")

8.

Plug

Chinese,British, American, European and so on

9.

Quality guarantee

1 year

10.

Life

more than 4 years(normal useful)

11.

MOQ

1 piece

OEM and ODM is welcome,can print your logo




Related Products

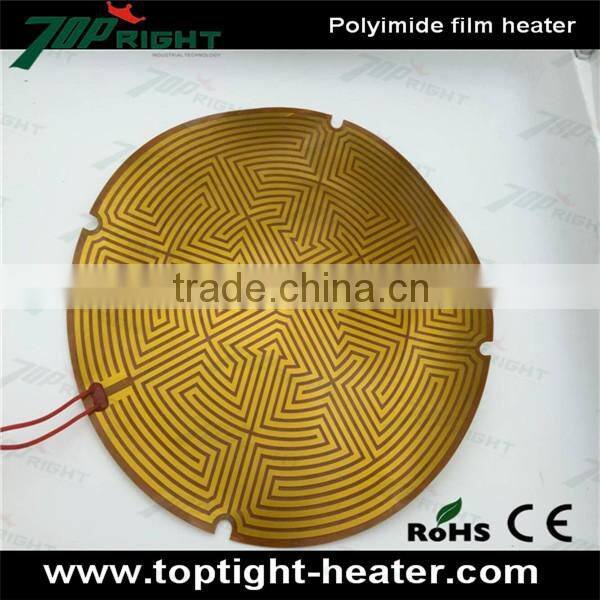

 Kapton (polyimide) heaters Photos:

Flexible Kapton Polyimide Film Heater For 3D PrinterFlexible Kapton Polyimide Film Heater For 3D PrinterFlexible Kapton Polyimide Film Heater For 3D Printer

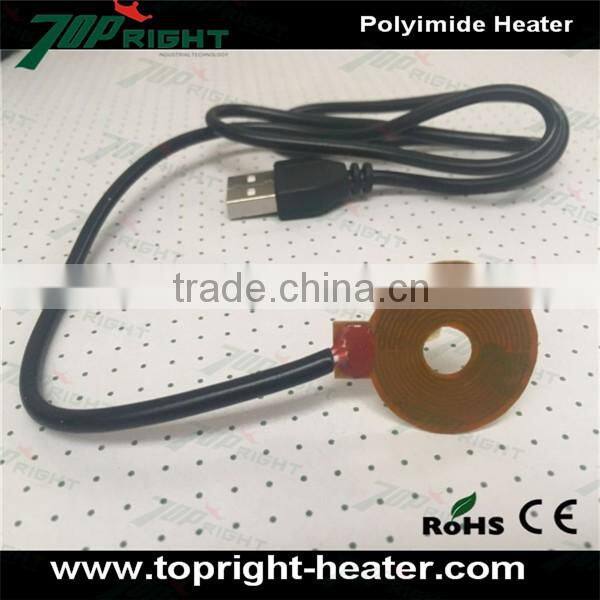

Polyimide heaters with thermistor:

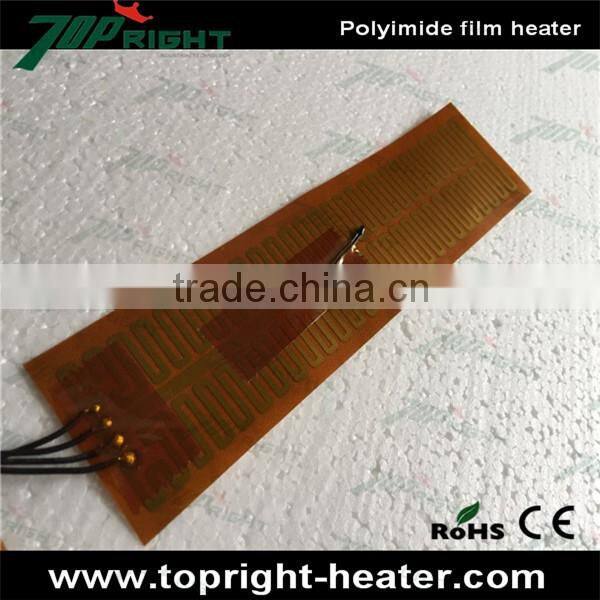

Flexible Kapton Polyimide Film Heater For 3D Printer



Specifications

 Specification of Polyimide (kapton) Heaters:

  • Working voltage: 12 - 400V
  • Working temperature: -200°C - 200°C
  • Watt density: 1.1-6.5w/cm2
  • Mounting: PSA or mechanical
  • Max. size: 500x600mm
  • Thickness: ≤0.25mm
  • Exit: teflon, kapton or silicone insulated leads
Application of Polyimide (kapton) Heaters:
  • Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
  • Stabilize optoelectronic components
  • Test or simulate integrated circuits
  • Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
  • Protect aircraft electronic and mechanical devices in cold weather / area.



Order Guide



 When place an order,please kindly confirm the following parameters.Thanks.

(1). Type of Heater
(2). Wattage and Voltage
(3). Size of the heater

(4). Drawing or Sample required for special configuration



Trade Shows

 Our Exhibtion in USA market:

Flexible Kapton Polyimide Film Heater For 3D Printer



Topright CE Certification

Flexible Kapton Polyimide Film Heater For 3D Printer



Packaging & Shipping

Topright try our best to deliver the goods to your hand without any deficiency.





Production Flow

 Value appreciates profession,professional designed for kapton heaters:
