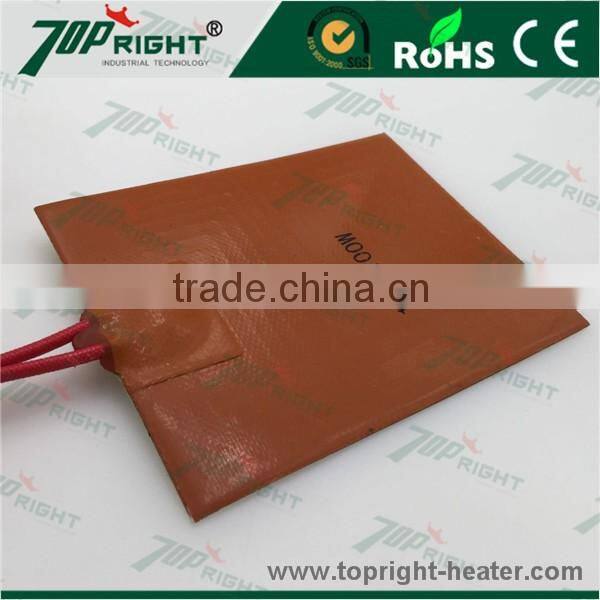

Silicone Rubber Heater Description:
Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact; the heating elements of nickel alloy foil processing form, more uniform heating. In this way, we can let the heat transfer to any desired place.
Specification of Silicone Rubber Heater:

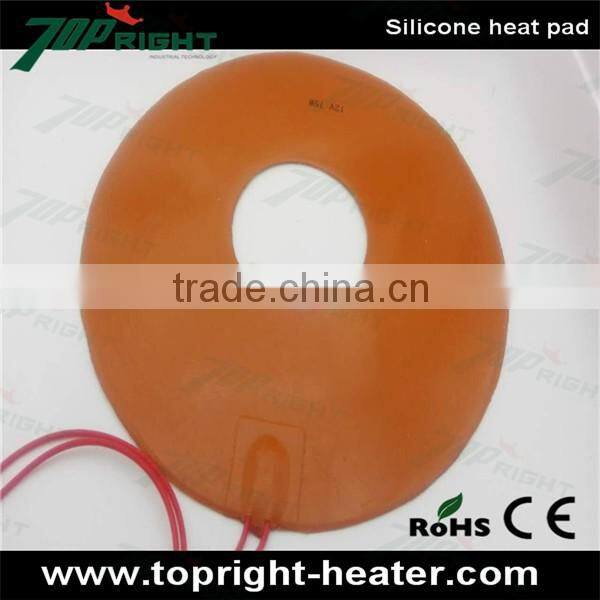

| Model | round,square, Rectangular (any shaped) |
| Size: | L:25-1000mm; W:20-1000MM |
| maximum operating | 250 °C |
| Thickness | 1.5mm standard |
| Voltage | 12v,24v,110v,120v,220v,230v,240v,360v (AC & DC) |
| Wattage | 0.3-1w/cm2 |
| Thermostat | with or W/O |
| Thermistor | with or W/O |

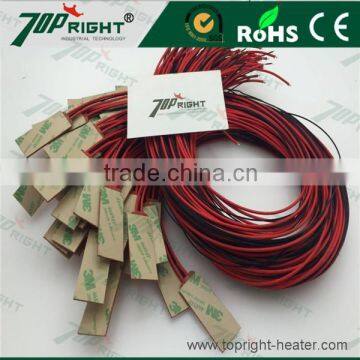

| 3M self-adhesive | yes or no |
Note:
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.)
3.Any shaped is available in China Topright Industrial.
All our silicone rubber heater can be customized.Infrom us the size you want and a drawing would be a great help.
Note: Any size is available in China Topright Industrial

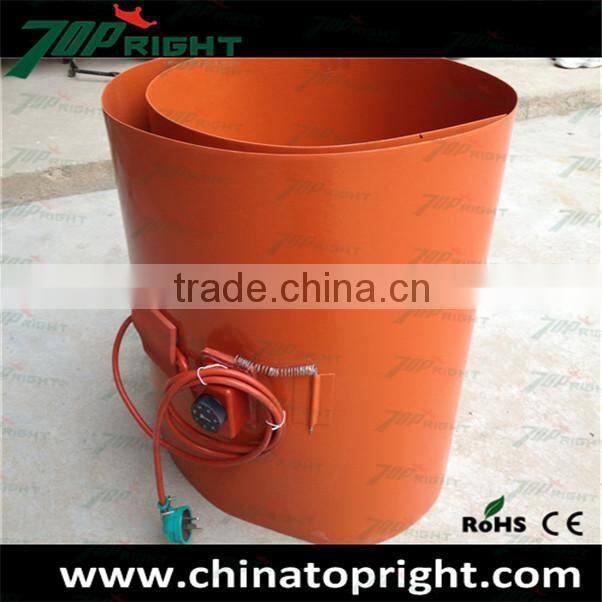

Standard Oil drum Silicone Rubber heater:
Volume | 200Liter | 20Liter | 200Liter | 200Liter |
OD(oil barrel) | 580mm | 300mm | 580mm | 580mm |
Size | 250x1740mm | 200x860mm | 125x1740mm | 150x1740mm |
Voltage & wattage | 200v/2000w | 200v/800w | 200v/1000w | 200v/1000w |
Adjusted Temperature | 30-150 °C | 30-150 °C | 30-150 °C | 30-150 °C |
Weight(kg) | 1.4 | 0.6 | 0.8 | 0.9 |
Waterproof | IP68 | IP68 | IP68 | IP68 |
Silicone heater with thermistor/thermostat
Application of Silicone Rubber Heater:

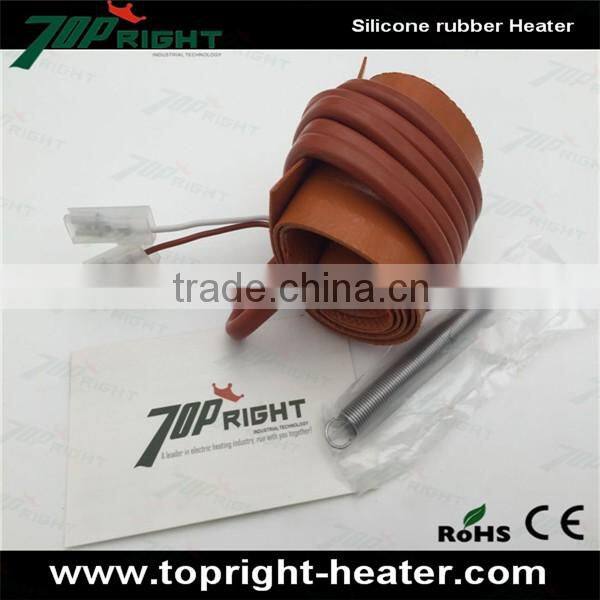

1.Silicone rubber band heater can be used in damp, no explosive gas atmosphere, industrial equipment pipelines, heat preservation for can and barrel.
2. Silicone rubber heater can be used as a frozen prevention, air conditioner compressor, assisting heating of electrical equipment3 medical devices ( such as blood analyzers, test tube heater, medical care, body slimming belt corset compensation such as heat )
3. Silicone rubber heater can be used as medical equipment and medical care (such as blood tube heater, blood analyzer, heat supplementary for corset and waistband
Since 2001,Topright have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development. Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 200 countries. We supply different heating element for example silicone rubber heater, kapton heater, band heater, cartridge heater, tubular heater, thermocouple and ect. More details pls link online store:
Topright CE Certification:
Our Exhibition in USA:
