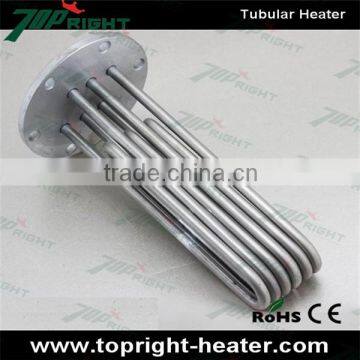

U shape high quality steamer/oven flange tubular heater

Name: U shape high quality steamer/oven flange tubular heater
Brand: Topright
Availability: InStock

FOB Price

USD $8 - $65 / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Immersion Heater
Power Source	Electric	Place of Origin	Jiangsu, China
Brand Name	Topright	Model Number	TR2016080867
Dimension(LWH)	customized	Weight	customized, 4.5
Voltage	12v or customized, 220-380V, 220-380v	Power(W)	1.1-6.5W/CM2, 1-5kw or customized
Certification	CE	Warranty	One Year
After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

1) NIickel chromium resistance wire

2)Tube material SS304/316/321/Incoloy

3)high efficient heat transfer

4)Various shapes

Product Description

Product Description:

Topright Brand Tubular heating element are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time.

Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications.

Screw in Tubular heating element are standardised for use in liquids like water.

Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available.

Features:

HI-POT Test	1500V/S min cold condition
Insulation resistance	20M Ω min
Leakage current	0.75ma max
Power tolerance	+5%,-10%
Voltage	120V-440V
Diameter range	1mm to 40mm
Heating resistance wire	0Cr25Al5,Cr20Ni80 or as custom's requirement
Air tubular heater wattage	≥ 2w-4w/cm2
Water tubular heater wattage	≥ 6w-10w/cm2
Dies and fin tubular heater	≥ 8W-12w/cm2

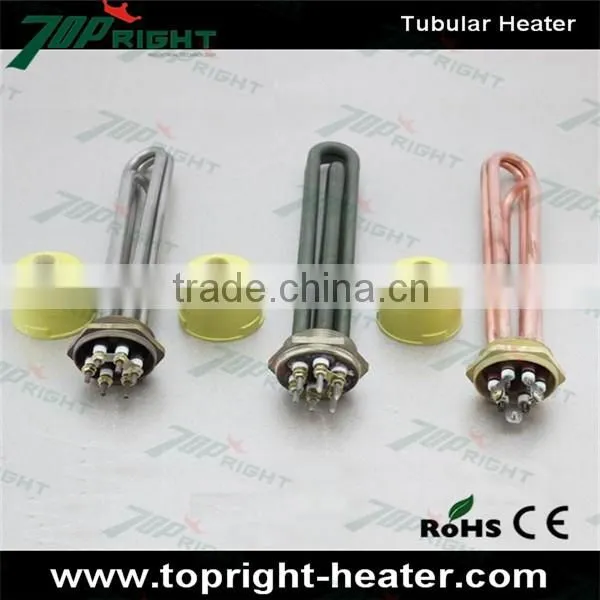

Tubular heater photos in Topright Industrial Technology and etc:

More Products choice

Application

Tubular heater application:

Liquid Immersion

Plastic Molds

Dies

Labeling

Medical Equipment

Platens

Packaging Equipment

Hot Stamping

Sealing

Injection Molding

Tubular Heater Features & Benefits:

1.Available in a broad variety of sheaths, diameters, and ratings;

2.Supplied with electrically insulated sheath;

3.Provide superior internal electrical insulation and heat conductivity;

4.Easy to install;

5.Configurable to virtually any shape;

6.Compact size;

7.Precise and easy control of heat output;

8.Durable;

9.Easy to maintain;

10.Easy to replace thus eliminating long shut-down periods;
