Home > Products > Automatic Edge Banding Machine > TC-60C-YX-K Automatic edge banding machine

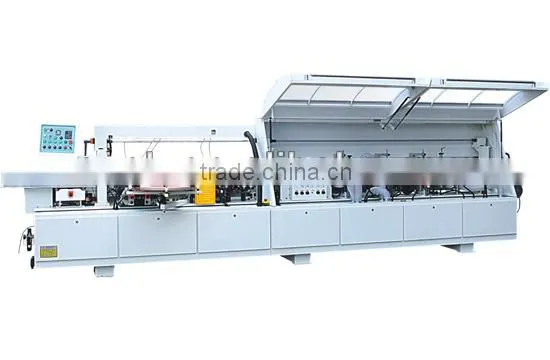

TC-60C-YX-K Automatic edge banding machine
- 50 Set / Sets per Month
- NINGBO PORT
Product Details
| Condition: | New | Type: | Other | Use: | Woodworking |
| Style: | Horizontal | Place of Origin: | Zhejiang, China | Brand Name: | EVOK |
| Model Number: | TC-60C-YX-K | Usage: | Banding machine | Voltage: | 380V |
| Power(W): | 21KW | Dimension(L*W*H): | 6100*900*1750mm | Weight: | 2500KG |
| Certification: | CE | Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
TC-60C-YX -K Automatic edge banding1.CE certificate,
2.imported elements
3.high speed of 30m/min
TC-60C-YX-K (Automatic Edge Banding Machine)
1. Brief introduction :
This is our newly design machine, it adopts the advanced technology from Germany . It has the advantages of novel structure , stable performance , easy debugging etc. Meanwhile, it utilizes frequency conversion to regulate speed . It is an ideal model to lift up your product grade.
2. Functions :
It has many functions such as : edge cleaning, pre-milling, pre-heating, veneering, end trimming, rough finishing,fine finishing, arc scraping, polishing
3. Technical parameter:
Power Source | 380V+N/ 50HZ | Total power | 21Kw |
Workpiece length(min) | 168mm | Workpiece thickness | 10-60mm |
Feeding speed | 6-30m/min | Workpiece width(min) | 68mm |
Belt thickness | 0.4-12mm | Belt width | 12-65mm |
Machine size | 6100×950×1750mm | Machine weight | 2500Kg |
