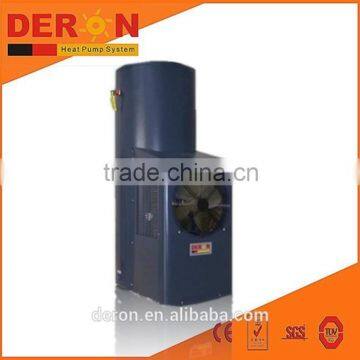

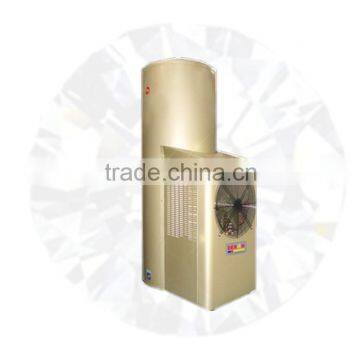

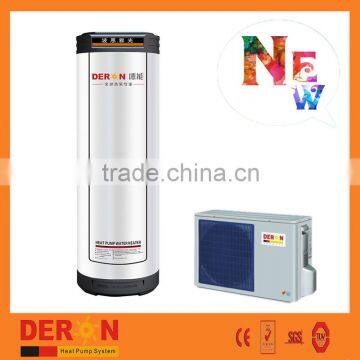

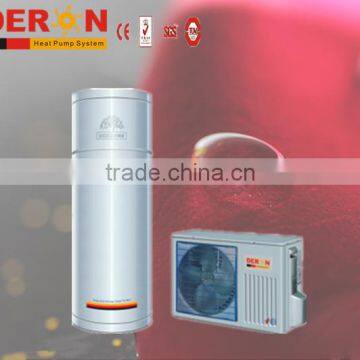

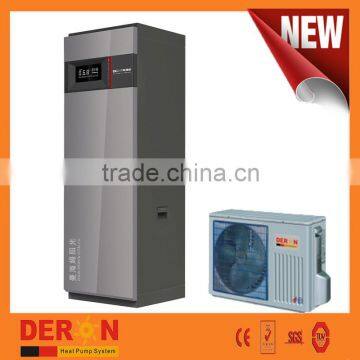

All in One Heat Pump Hosehold Water Pump for House Heating
US$ 800 - 1,000
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Type:
Air Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Storage
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Domestic Water Heater All In One Unit For HeatingUS$ 555 - 9,999MOQ: 1 Piece -
Domestic Air to Water Heat Pump Spec Bathroom Heater For House HeatingUS$ 800 - 1,000MOQ: 3 Pieces
-
Air to Water Integrated Heat PumpUS$ 499 - 688MOQ: 3 Pieces
-
Deron Household Split Type R410a Air Source Heat Pump Water HeaterUS$ 399 - 2,999MOQ: 1 Unit
-
Deron Residential Series Heat Pump Air Water Heater With Water Tank Provide Hot WaterUS$ 399 - 2,999MOQ: 1 Unit
Type
Air Source Heat Pump
Installation
Freestanding
Storage / Tankless
Storage
Housing Material
Other, Coated plate
Use
Bathroom
Certification
CE, EMC, Other, CE, EMC, ISO9001-household water pump
Place of Origin
Guangdong, China
Brand Name
DERON
Model Number
DE-100LY-household water pump
all in one heat pump hosehold water pump for house heating
- Case material: ABS plastic for the top, coated steel for the cylinder part
- Panasonic rotary compressor with R417a or R410a
- Adotped centrifugal fan for more excellent performance
- Fashinable and compact design
- 3.4kw, three models: 100L, 150L, 200L storage
DIMENSION
Front Back
European style all in one unit
--Special for Kitchen
--Absorb heat from kitchen to make hot water
--Cold air from heat pump for Kitchen Cooling
Parametres:
Household Water Pump
| Model | New design | ||||
| DE-100LY | DE-150LY | DE-200LY | DE-300LY | ||
| Power supply (V/ph/Hz) | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | |
| *Heating capacity (kW) | 3.4 | 3.4 | 3.4 | 4.8 | |
| *Rated power input (kW) | 0.9 | 0.9 | 0.9 | 1.25 | |
| **Heating capacity (kW) | 2.8 | 2.8 | 2.8 | 3.8 | |
| **Rated power input (kW) | 0.9 | 0.9 | 0.9 | 1.25 | |
| Capacity of the tank (L) | 100 | 150 | 200 | 300 | |
| Water feed speed (L/h) | *75 / **60 | *75 / **60 | *75 / **60 | *105 / **83 | |
| Refrigerant/weight (g) | R417A/700 | R417A/700 | R417A/700 | R417A/1000 | |
| Max. current (A) | 7 | 7 | 7 | 9 | |
| Rated water temp. (°C) | 55 | 55 | 55 | 55 | |
| Max. water temp. (°C) | 60 | 60 | 60 | 60 | |
| Max. excessive operation pressure | Discharge (Mpa) | 2.8 | 2.8 | 2.8 | 2.8 |
| Suction (Mpa) | 1.2 | 1.2 | 1.2 | 1.2 | |
| Level against electric shock | I | I | I | I | |
| Water-proof grade | IP×0 | IP×0 | IP×0 | IP×0 | |
| Net weight (Kg) | 68 | 75 | 85 | 120 | |
| Net size(mm)-(L*W*H) | φ 555x1200 | φ 555x1530 | φ 555x1765 | φ 650x1870 | |
| Water connection | G3/4 | G3/4 | G3/4 | G3/4 | |
| Operation temp. range (°C) | 0~43 | 0~43 | 0~43 | 0~43 | |
| Noise dB(A) | ≤45 | ≤45 | ≤45 | ≤45 | |
| Container qty | 20'ft-27/40'ft-54 | 20'ft-27/40'ft-54 | 20'ft-27/40'ft-54 | 20'ft-14/40'ft-30 | |
Test condition
* Ambient temp. (DB/WB): 20°C/15°C, Water temp. (Initial/Final): 15°C/55°C;
** Ambient temp. (DB/WB): 7°C/6°C, Water temp. (Initial/Final): 15°C/55°C.
