Home > Products > Optical Glass Lens > LED Lens 60 Degree For LED High Bay Light Floodlight Dia.78mm
LED Lens 60 Degree For LED High Bay Light Floodlight Dia.78mm
- 3000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
You May Like
-
LED Lens Polarized Glass Lens For Street light Garden Light Tunnel Light 78mm
-
LED Glass Lens 120 Degree 78mm For High Bay Light Floodlight
-
LED Glass Lens 90 Degree 78mm For High Bay Light Floodlight
-
LED Glass Lens 45 Degree 78mm High Bay Light Flood Light
-
LED Glass Lens 120 Degree 66mm For High Bay Light Floodlight
-
LED Lens 90 Degree Lens 66mm For High Bay Light Floodlight
Product Details
| Place of Origin | Shandong, China | Brand Name | KAICH | |
| Model Number | KC78 | Material | Glass | |
| Usage | Optical | Structure | Other, concave-convex | |
| Shape | Aspheric |
Product Description

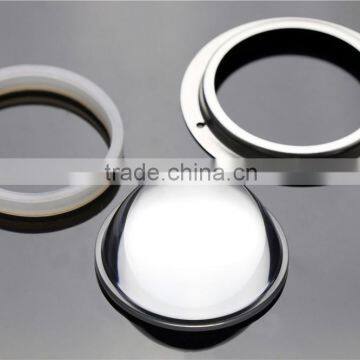

LED Glass Lens for High Bay Light Floodlight
KC78-2
Material Performance:
1. Material: High borosilicate 3.3 glass with rubber ring and stainless steel press frame.
2. Refractive Index: 1.47
3. Size: 78mm * 40mm
4. Application: industrial and mineral.
5. Transmittance: 91.8%
6. Temperature resistance: -50 to 520 ℃
7. Applied Light source: CREE Bridgelux LG CITIZEN OSRAM Samsung Lumileds
8. Net Weight: 262.5gram (including rubber ring and press frame)
9. Lens Model No.: KC78-2
10. Luminous Angle: 60°
Product type | KC78-2 | Product specification | φ78*40mm |
Luminous angle | 60° | Luminance distribution | 50~200W |
Material | High borosilicate3.3 | Transmittance | 91.8% |
Temperature resistance | -50℃~+520℃ | Tolerances | ±0.1mm |
Product applications | High Bay Lights,Flood Lights | ||
Uniformity of illuminance | 0.54 | ||
Optical Simulation:
Product Pictures:
Package:
Company Profile:
Shandong Kaich Optical & Electronic Techonoly Co., Ltd. is a wholely owned subsidiary of Kaich Group, which is located at the Qidu town, Zibo city, Shandong province. We are specialized in producing and assembling LED Outdoor Light. In 2015 a delicated R&D department of Optical lens is set up in Qingdao, who is desiging and developing all kinds of glass lenses for LED lighting.
With our service, you could achieve most professional road lighting result.
