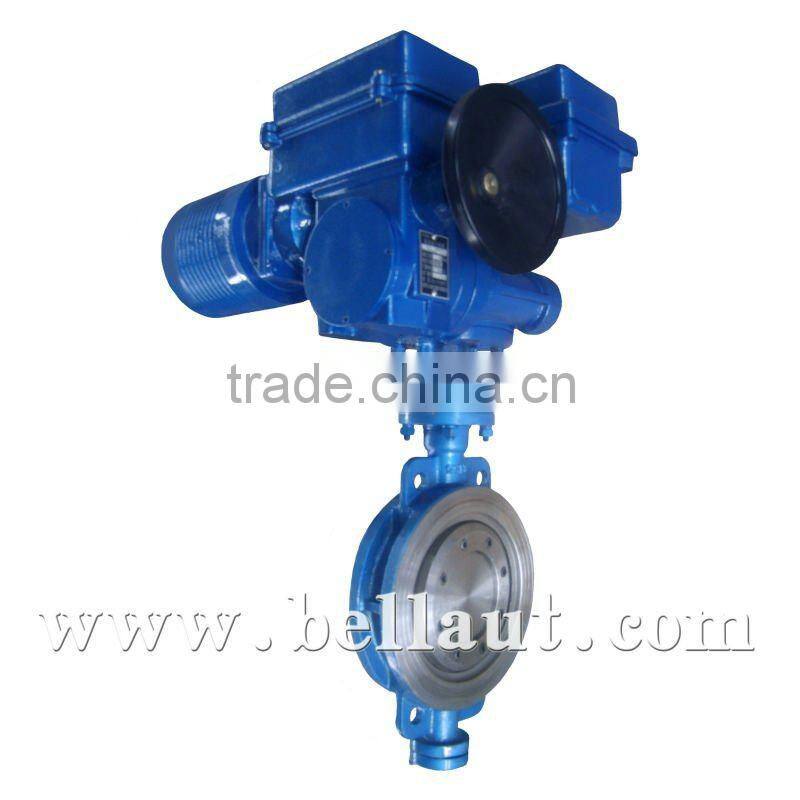

 This series is suitable to the regulation which requests high precision during the flux of control liquidElectric single-seated, double-seatd and sleeve regulating valves are composed of ordinary DKZ series or imported electric actuator series and valve body which valve disc is single-seated type, double-seated type or sleeve typ.



It can achieve multiple accuracy control, flow characteristic equal percentage and linearity



Parameters of automatic control valve



The material of valve body: cast iron, cast steel, cast stainless steel and so on.

Pressure grade: 1.6Mpa, 4.0Mpa, 6.4Mpa

Connecting type: flange coupling

Temperature range: normal temperature -20---230º  the thermal slug type -60---450º

Operation form: automatic open or close

Flow characteristic: equal percentage, linearity

Leakage: single-seated valve: 0.01* rating Kv

         double-seated valve, sleeve valve: 0.5%* rating Kv



ZAZP,BELLAZP single seated automatic control valve specification table

Nominal diameter  mm		20				25	32	40	50	65	80	100	125	150	200
Valve disc diameter  mm		10	12	15	20	25	32	40	50	65	80	100	125	150	200
Rated flux coefficient Kv		1.2	2	3.2	5	8	12	20	32	50	80	120	200	280	450
Nominal pressure Mpa		1.6 4 6.4
Match DKJ actuator	specification	DKZ-4100				DKZ-4200		DKZ-4300		DKZ-5400			DKZ-5500
	Differential pressure  Mpa	6.4	4.0	4.0	4.0	3.5	2.3	2.0	1.42	1.4	0.91	0.55	0.35	0.26	0.17
Match introduced actuator	specification	A+Z64
	Differential pressure  Mpa	6.4	6.4	4.0	4.0	3.7	2.5	2.2	1.6	1.5	1.0	0.6	0.4	0.3	0.2
Rated travel mm		10				16		25		40			40
Flux characteristic		Equal percentage Beeline
Function style		Volt on  Volt off
Temperature range		Normal temperature: -20 — +200 degree abstraction of heat: -60 — +450 degree

ZAZN,BELLAZN double seated automatic control  valve specification table

 (Please refer to operation manual)

ZAZM,BELLAZM sleeve  automatic control  valve specification table

 (Please refer to operation manual)
