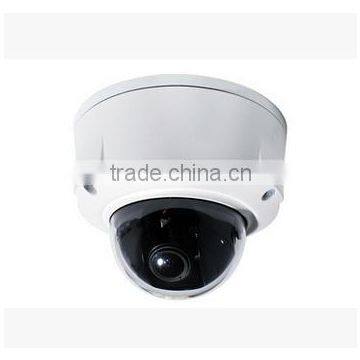

3Megapixel Full HD Network IR MINI Dome IP Camera Dahua IPC-HDBW5300/5302

FOB Price

USD $233 - $233 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SZ
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Type	IP Camera
Style	Dome Camera	Sensor	CMOS
Technology	Infrared	Special Features	Waterproof / Weatherproof

Product Description

>1/3” 3Megapixel progressive scan Aptina CMOS
>H.264 & MJPEG dual-stream encoding
>Max 20fps3M(2052×1536) & 25/30fps

1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>2.7 ~12mm varifocal lens (HDBW5300)
3 ~9mm varifocal motorized lens (HDBW5302)
>Built-in 1/1 alarm in/out
>Max. IR LEDs length 20m
>Micro SD memory, IP66, IK10, PoE,

Specifications

Model	IPC-HDBW5300	IPC-HDBW5302
Camera
Image Sensor	1/3” 3Megapixel Aptina CMOS
Effective Pixels	2048(H)x1536(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3~1/10000
Min. Illumination	Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
S/N Ratio	More than 50dB
Video Output	1 port
Camera Features
Max. IR LEDs Length	20m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	2.7 -12mm	3 -9mm motorized
Max Aperture	F1.4	F1.2
Focus Control	Manual	Auto
Angle of View	H: 82°(Wide)~25°(Tele)	H: 86.5°(Wide)~28.6°(Tele)
Lens Type	Manual /Auto Iris(DC)	Motorized /Auto Iris(DC)
Mount Type	Board-in Type
Video
Compression	H.264 / MJPEG
Resolution	3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate	3M(1~20fps)/1080P/720P(1~25/30fps) (main stream)
	D1/CIF(1 ~ 25/30fps) (sub stream)
Bit Rate	H.264: 32K ~ 8192Kbps
Audio
Compression	G.711a / G.711u/ PCM
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	N/A
Alarm	1/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V/AC24V, PoE(802.3af)
Power Consumption	Max 5W (Motorized lens: +3.5W)
Working Environment	-20°C~+60°C , Less than 90%RH
Ingress Protection	IP66
Vandal Resistance	IK10
Dimensions	Φ151mm×119mm
Weight	1.25kg
