1100 Thin Aluminum Floor Strip

1100 Thin Aluminum Floor Strip photo-1

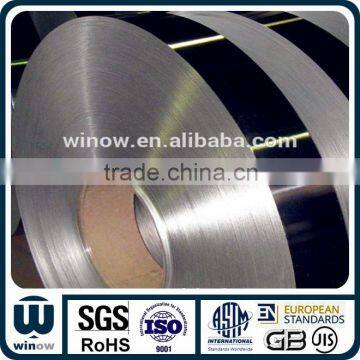

1100 Thin Aluminum Floor Strip photo-2

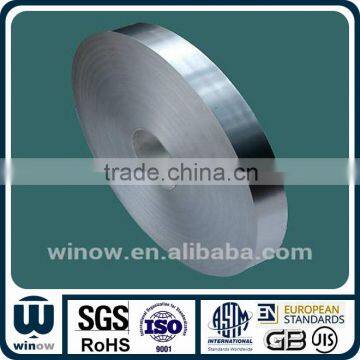

1100 Thin Aluminum Floor Strip photo-3

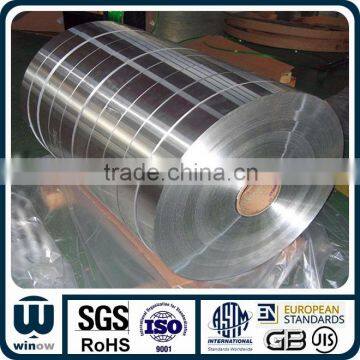

1100 Thin Aluminum Floor Strip photo-4

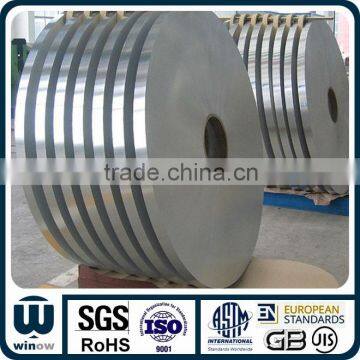

1100 Thin Aluminum Floor Strip photo-5

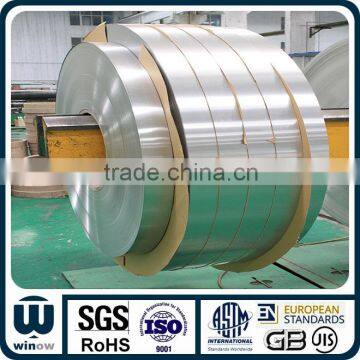

1100 Thin Aluminum Floor Strip photo-6
US$ 2,500 - 3,200 MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
winow
Model Number:
1100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Qingdao/Dalian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name winow
Model Number 1100
Grade 1000 Series
Thickness 0.5-150mm
Width Under 2200mm
Application Industry, electric conductor, flexible hose, Instrument
Alloy Or Not Is Alloy
Al (Min) 99%
Temper O - H112

Specifications

aluminum floor strip
1.Strong mechanical properties
2.Excellent corrosion resistance
3.High and homogeneous heat diffusion

aluminum floor strip







Product Description



Details:

Features:

1.Superior quality of raw material;
2.Reasonable and stable chemical composition.;
3.Accurate tolerance;
4.Good mechanical property.;
5.We have the certificate of ISO9001:2008.;
6.We provide free sample service.

7.The products can be made according to your requirement.



TOLERANCE

Major Brand

A1100(O) A1050(O)

Thickness

0.2-0.4

0.4-0.8

0.9-1.1

1.2-1.6

1.8-2.0

tolerance

±0.01

±0.015

±0.02

±0.025

±0.03

Width

<100

100-200

201-500

501-1250

>1250

tolerance

±0.1

±0.2

±0.2

±1

±2

BURR AND COLLAPSE

The width of aluminum belt

burr’s height

collapsed side’s height

<0.2

0.01

≥0.05-0.1

0.2-1.0

0.015

1.1-1.5

0.02

>1.6

0.03

MECHANICAL PROPERTY

U.T.S: 60-95N/mm2

Elongation: >25%

Density in 20°C :2.703kg/dm3

Max.resistance in 20°C:≤0.02825Ωmm2/m



Aluminium strip



Alloy

Thickness(mm)

Width(mm)



Temper

DC or CC

1100

0.15-2.0

300-1500



O,H12,H22,H14,H24,H16,H26,H18,H32

DC, CC

2.0-350

900-2200

H112,H111

DC

Application

Electric conductor, flexible hose,Instrument, storage, PS plate, heat Exchanger; Instruction Decoration Material,pressure tank,Roof Panel,sanitary fixture.

MOQ

 5MT

Attention

Specifications can be customized as the customer’s requirements.

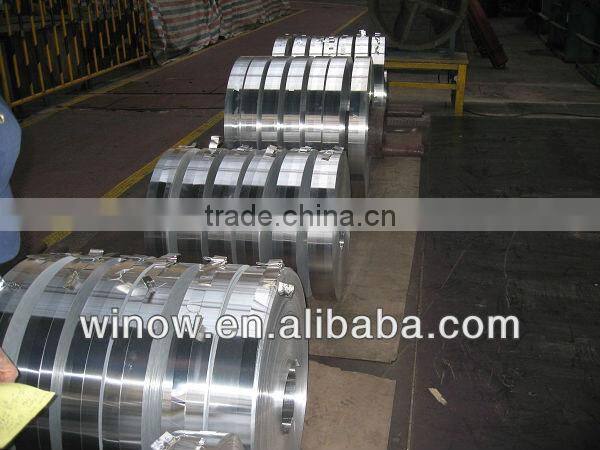

       1100 thin aluminum floor strip      1100 thin aluminum floor strip





Aluminum plate/sheet/strip advantage:

(1) Delivery: within 25-30 days after receiving the deposit.

(2) Samples: Free samples are available.

(3) Payment: 100% irrevocable L/C or 30% T/T in advance.

(4) Package: Wooden pallates with plastic cloth and dry agent; both upper and lower are cardboard layer and on the outside of the package are tied by steel strips.

(5) Main series:1000,3000,5000,6000,7000,8000,etc

(6)market:America,Argentina,Brazil,Peru,Chile,France,Germany,Australia, UK,Thailand,Turkey,India,etc.

Application of aluminum sheet:

1100 thin aluminum floor strip       1100 thin aluminum floor strip

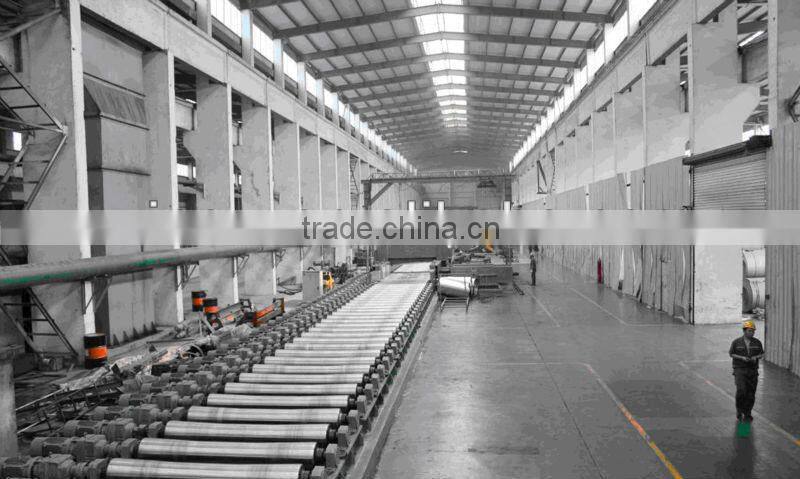

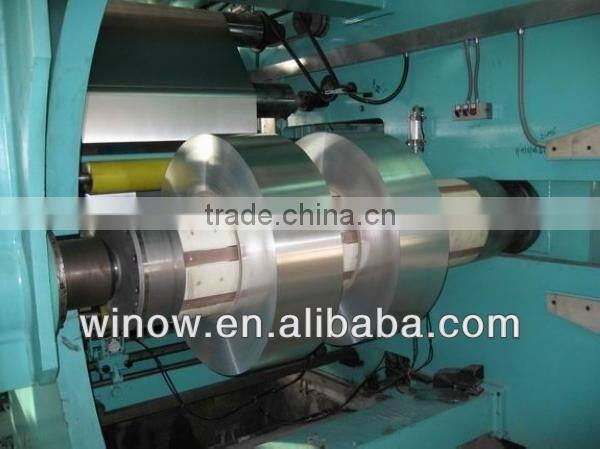

1100 thin aluminum floor strip       1100 thin aluminum floor strip       The Production Process:

Ingot/Master Alloys --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper --- Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery

      1100 thin aluminum floor strip





1100 thin aluminum floor strip

Our certification:

1100 thin aluminum floor strip



1100 thin aluminum floor strip

If you want to see more products of our company, you can surf our web site:


Company Information



Henan Winow Import & Export Co.,Ltd belongs to Wanda Aluminum Co.,Ltd, mainly promotes foreign trade and is responsible for products export. Aluminium sheet, foil, coil, strip, checkered plate, hot rolled plate, marine plate, PP Caps and lid stock are our mainly export products.
